Multimedia display video processor for video wall Full hardware configuration DDW-VPH1415

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 ,CE , RoHS , FCC

Model Number: DDW-VPH1415

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Double layer carton pack

Delivery Time: 3working days upon payment

Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance

Supply Ability: 1000pcs/month

Get Best Price
Product Details
Highlight:

video display processor

,

videowall processor

Solid Display:
Support Each Screen Input With Separate Signal
IPad/iPhone Remote Control:
Support Customized APP Remote Control
Scene Management:
Support Multiple Scenes Management/recall Function
Control Method:
RS232,IP
Rich Resolution:
Support 1080P,1080I,720P,480P &multiple Resolution Inputs
Frame Material:
Aluminum Brushed
Standard Packing:
Double Layer Carton Box Pack
Weight:
5-100kg
Solid Display:
Support Each Screen Input With Separate Signal
IPad/iPhone Remote Control:
Support Customized APP Remote Control
Scene Management:
Support Multiple Scenes Management/recall Function
Control Method:
RS232,IP
Rich Resolution:
Support 1080P,1080I,720P,480P &multiple Resolution Inputs
Frame Material:
Aluminum Brushed
Standard Packing:
Double Layer Carton Box Pack
Weight:
5-100kg
Product Description

Multimedia display video processor for video wall Full hardware configuration DDW-VPH1415



Support ,DVI,VGA,AV,YPBPR and IP,1080P higher resolution
Video Wall Processor​ Key Features:
1. Full hardware configuration without operating system
2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3. Real time image display, no dropped frames
4. Support display at arbitrary position, at any size and any superimposed
5. Support open-window effects processing
6. Support large-screen image freeze
7. Support 7 x 24 uninterrupted and stable working
8. Flexibility to increase the input/output board
9. Support partial input and output cards with mixed interpolation
10. Input/output card supports hot-swappable, plug-and-play functionality
11. Output resolution up to 1920 x 1200
12. Rich BNC, VGA, DVI, , SDI and RJ45 input interface, support for multiple resolutions up to 1920x1200,control via RS-232 or Ethernet
13. Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
14. Redundant power supply design, thermostatically controlled fan
15. Chassis backplane + plug-in configuration, excellent performance for radiating, anti-dust chassis, equipped with replaceable air filter can be stable for a long time, even in harsh environments



Some of the Video Wall Controller Parameters:

Vertical/Horizontal Display Support
Combine Display Support combine any horizontal &vertical numbers of screens and show display
Support combine all screens together to show 1image
Solid Display Support each screen input with separate signal
PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
iPad/iPhone remote control Support customized APP remote control
Signal preview function Support Audit/Preview signal before output to windows/video wall screens
Scene management Support Multiple scenes management/recall function
Support scenes cycle broadcast Support scenes cycle broadcast function
Multiple Interfaces Support multiple DVI,,VGA,AV inputss &multiple signal outputs
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs
Standard Packing Double layer carton box pack
Weight 5-100kg
6kg-110kg



Detail Parameters:

Technical Specifications
Model series With CBD No CBD
Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) /DVI/VGA/AV/YPbPr
Input resolution 1024x768~1080p,commonly used resolutions
Output signal format DVI/VGA/AV/YPbPr/(DVI- converter)
Output resolution Up to 1920x1200/60HZ
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 4U/6U/10U/15U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365x7x24hrs
Technical specification of input/output connectors
VGA/RGB input Input: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640*480/60HZ—1920*1200/60HZ
Input impedance :75Ω
Video input Input connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI output Resolution:1024x768/60HZ-1920x1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
Physical properties of input/output connectors
Signals Connectors Type
Composite VIDEO input BNC female
VGA input 15 pin HD D-Sub female
VGA output 15 pin HD D-Sub female
DVI output 24+5 or 24+1 standard female
AUX RS-232 9-pin D-Sub female
Main RS-232 9-pin D-Sub female

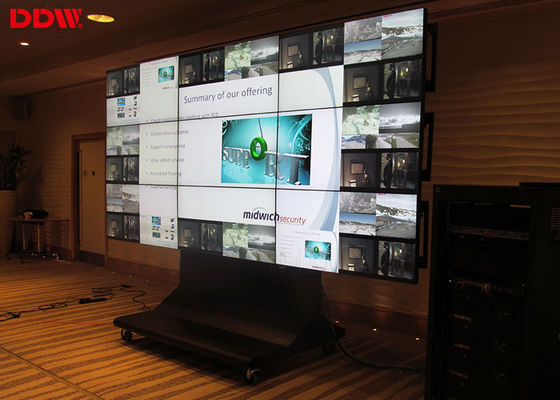

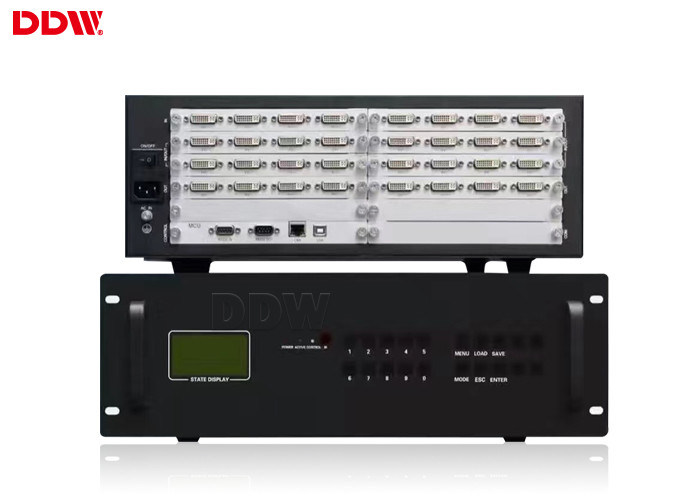

Multimedia display video processor for video wall Full hardware configuration DDW-VPH1415 0Multimedia display video processor for video wall Full hardware configuration DDW-VPH1415 1
