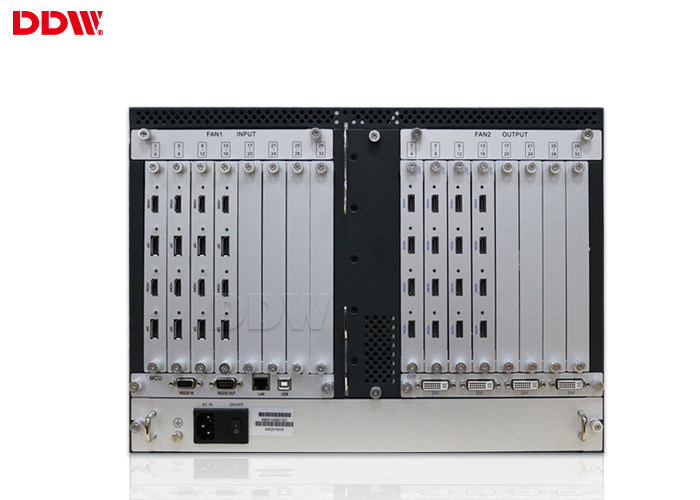

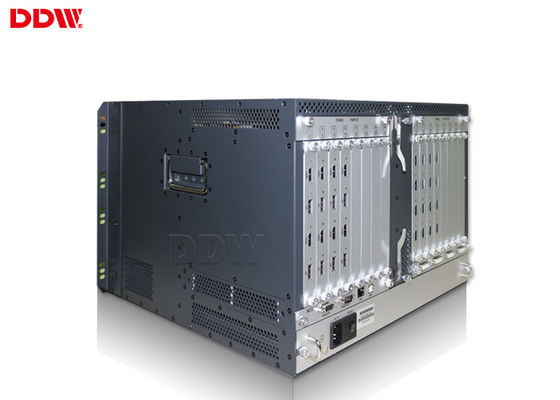

Control Room display Video Wall Scaler / DVI / VGA / AV / YPbPr Input signal DDW-VPH1010

Name: Control Room display Video Wall Scaler / DVI / VGA / AV / YPbPr Input signal DDW-VPH1010
Brand: DDW
SKU: DDW-VPH1010
Rating: 5 (154 reviews)

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 ,CE , RoHS , FCC

Model Number: DDW-VPH1010

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Double layer carton pack

Delivery Time: 3working days upon payment

Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance

Supply Ability: 1000pcs/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                video display processor, videowall processor


Solid Display:	Support Each Screen Input With Separate Signal	IPad/iPhone Remote Control:	Support Customized APP Remote Control
Scene Management:	Support Multiple Scenes Management/recall Function	Control Method:	RS232,IP
Rich Resolution:	Support 1080P,1080I,720P,480P &multiple Resolution Inputs	Frame Material:	Aluminum Brushed
Standard Packing:	Double Layer Carton Box Pack	Weight:	5-100kg

Solid Display:	Support Each Screen Input With Separate Signal
IPad/iPhone Remote Control:	Support Customized APP Remote Control
Scene Management:	Support Multiple Scenes Management/recall Function
Control Method:	RS232,IP
Rich Resolution:	Support 1080P,1080I,720P,480P &multiple Resolution Inputs
Frame Material:	Aluminum Brushed
Standard Packing:	Double Layer Carton Box Pack
Weight:	5-100kg

Product Description

Control Room display Video Wall Scaler / DVI / VGA / AV / YPbPr Input signal DDW-VPH1010

It has following key features:
1. Support display at arbitrary position, at any size and any superimposed
2. Support open-window effects processing
3. Support large-screen image freeze
4. Full hardware configuration without operating system
5. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
6. Real time image display, no dropped frames
7. Flexibility to increase the input/output board
8. Support partial input and output cards with mixed interpolation
9. Input/output card supports hot-swappable, plug-and-play functionality
10. Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
11. Redundant power supply design, thermostatically controlled fan
12. Chassis backplane + plug-in configuration, excellent performance for radiating, anti-dust chassis, equipped with replaceable air filter can be stable for a long time, even in harsh environments
Detail Parameters:

Technical Specifications
Model series	With CBD	No CBD
Function description	4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image	16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional)	/DVI/VGA/AV/YPbPr
Input resolution	1024x768~1080p,commonly used resolutions
Output signal format	DVI/VGA/AV/YPbPr/(DVI- converter)
Output resolution	Up to 1920x1200/60HZ
System control software	Special control software
Power Supply	Redundant power supply 110-220VAC, 50/60Hz
Consumption	12W/channel
Working temperature	-20°C——60°C
Working Humidity	5-95%
Case specification	4U/6U/10U/15U standard rackmount chassis
Serial Control Interface	RS-232,9-pin female, Type-D
Baud Rate	115200
Pin configuration	2=TX,3=RX,5=GND
Ethernet control interface	RJ-45 female, TCP/IP
Ethernet control speed	Auto 10M or 100M,Full-duplex or half-duplex
Working time	365x7x24hrs
Technical specification of input/output connectors
VGA/RGB input	Input: 15pin HD D-Sub, female
	Sync mode: HV independent sync
	Color Depth: 32bit/pixel
	Resolution: 640480/60HZ—19201200/60HZ
	Input impedance :75Ω
Video input	Input connector: BNC
	Detecting: full-format auto detecting
	Input impedance :75Ω
VGA or DVI output	Resolution:1024x768/60HZ-1920x1200/60HZ
	Color depth: 32bit/pixel
	Output impedance:75Ω
Physical properties of input/output connectors
Signals	Connectors	Type
Composite VIDEO input	BNC	female
VGA input	15 pin HD D-Sub	female
VGA output	15 pin HD D-Sub	female
DVI output	24+5 or 24+1 standard	female
AUX RS-232	9-pin D-Sub	female
Main RS-232	9-pin D-Sub	female

Control Room display Video Wall Scaler / DVI / VGA / AV / YPbPr Input signal DDW-VPH1010 0
