| Solid Display: | Support Each Screen Input With Separate Signal | Max PIP Per Screen:: | 1,4,16,customization |
|---|---|---|---|
| Video Wall Processor Interfaces Type:: | Pluggable | Control Method: | RS232,IP |
| Rich Resolution: | Support 1080P,1080I,720P,480P &multiple Resolution Inputs | Frame Material: | Aluminum Brushed |
| Standard Packing: | Double Layer Carton Box Pack | Weight: | 5-100kg |
| High Light: | multi display processor,videowall processor |
||

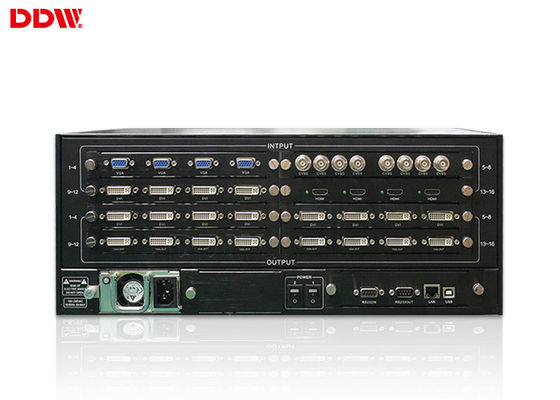

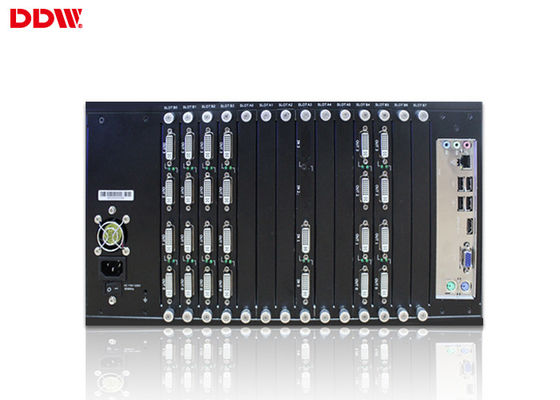

Video Wall Scaler for 3x2 Video Wall 1080p high resolution input output DDW-VPH0506
DDW Video Wall Scaler is one of professional modularized and hardware Video wall processor which supports ,DVI,VGA,AV,YPBPR, each channel support 1920 x1200 resolution signal inputs and outputs,RS232 and IP control method.Video wall processor can be widely used for:monitoring, directing, scheduling system, public security, fire, military, weather, rail, and aviation monitoring system, video conferencing, query systems.
It has following key features:
1. Full hardware configuration without operating system
2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3. Real time image display, no dropped frames
4. Support display at arbitrary position, at any size and any superimposed
5. Support open-window effects processing
6. Support large-screen image freeze
7. Support 7 x 24 uninterrupted and stable working
8. Flexibility to increase the input/output board
9. Support partial input and output cards with mixed interpolation
10. Input/output card supports hot-swappable, plug-and-play functionality
11. Output resolution up to 1920 x 1200
12. Rich BNC, VGA, DVI, , SDI and RJ45 input interface, support for multiple resolutions up to 1920 x 1200,control via RS-232 or Ethernet
13. Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
14. Redundant power supply design, thermostatically controlled fan
15. Chassis backplane + plug-in configuration, excellent performance for radiating, anti-dust chassis, equipped with replaceable air filter can be stable for a long time, even in harsh environments
| Technical Specifications | ||
| Model series | With CBD | No CBD |
| Function description | 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image | 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
| Input signal(optional) | /DVI/VGA/AV/YPbPr | |
| Input resolution | 1024x768~1080p,commonly used resolutions | |
| Output signal format | DVI/VGA/AV/YPbPr/(DVI- converter) | |
| Output resolution | Up to 1920x1200/60HZ | |
| System control software | Special control software | |
| Power Supply | Redundant power supply 110-220VAC, 50/60Hz | |
| Consumption | 12W/channel | |
| Working temperature | -20°C——60°C | |
| Working Humidity | 5-95% | |
| Case specification | 4U/6U/10U/15U standard rackmount chassis | |
| Serial Control Interface | RS-232,9-pin female, Type-D | |
| Baud Rate | 115200 | |
| Pin configuration | 2=TX,3=RX,5=GND | |
| Ethernet control interface | RJ-45 female, TCP/IP | |
| Ethernet control speed | Auto 10M or 100M,Full-duplex or half-duplex | |
| Working time | 365x7x24hrs | |
| Technical specification of input/output connectors | ||
| VGA/RGB input | Input: 15pin HD D-Sub, female | |
| Sync mode: HV independent sync | ||
| Color Depth: 32bit/pixel | ||
| Resolution: 640*480/60HZ—1920*1200/60HZ | ||
| Input impedance :75Ω | ||
| Video input | Input connector: BNC | |
| Detecting: full-format auto detecting | ||
| Input impedance :75Ω | ||
| VGA or DVI output | Resolution:1024x768/60HZ-1920x1200/60HZ | |
| Color depth: 32bit/pixel | ||
| Output impedance:75Ω | ||
| Physical properties of input/output connectors | ||
| Signals | Connectors | Type |
| Composite VIDEO input | BNC | female |
| VGA input | 15 pin HD D-Sub | female |
| VGA output | 15 pin HD D-Sub | female |
| DVI output | 24+5 or 24+1 standard | female |
| AUX RS-232 | 9-pin D-Sub | female |
| Main RS-232 | 9-pin D-Sub | female |
