lcd video wall controller
, video wall processor

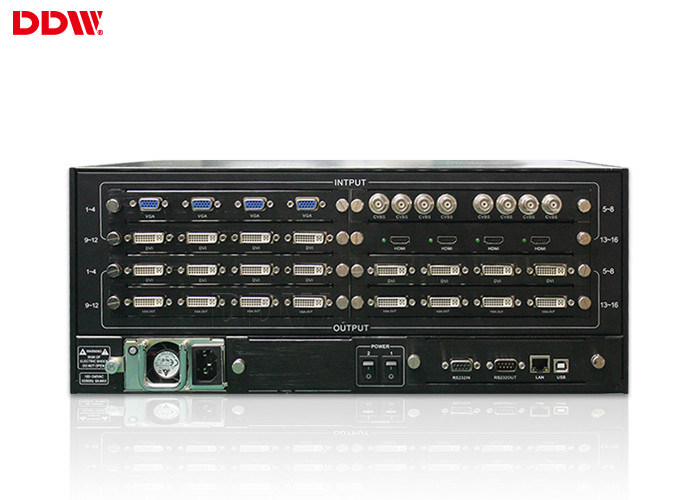

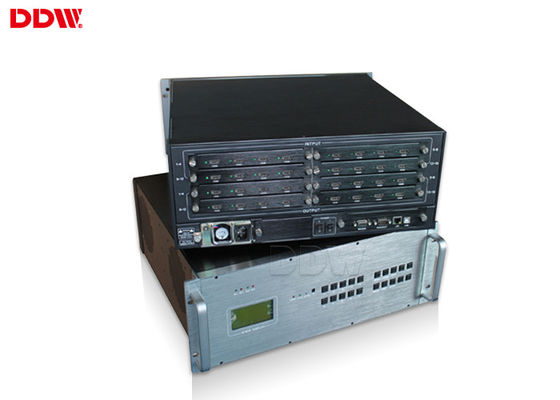

128 input output video display controller , outdoor video screen wall controller DDW-VPH0303
Products application:
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
Some of the Video Wall Controller Parameters:
| Vertical/Horizontal Display |
Support |
| Combine Display |
Support combine any horizontal &vertical numbers of screens and show display |
| Support combine all screens together to show 1image |
| Solid Display |
Support each screen input with separate signal |
| PIP/Zoom/Roaming |
Support open one window for each screen, each window can be zoomed &roaming internal freely |
| iPad/iPhone remote control |
Support customized APP remote control |
| Signal preview function |
Support Audit/Preview signal before output to windows/video wall screens |
| Scene management |
Support Multiple scenes management/recall function |
| Support scenes cycle broadcast |
Support scenes cycle broadcast function |
| Multiple Interfaces |
Support multiple DVI,,VGA,AV inputss &multiple signal outputs |
| Rich Resolution |
Support 1080P,1080I,720P,480P &multiple resolution inputs |
| Standard Packing |
Double layer carton box pack |
| Weight |
5-100kg |
| 6kg-110kg |
| Technical Specifications |
| Model series |
With CBD |
No CBD |
| Function description |
4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image |
16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
| Input signal(optional) |
/DVI/VGA/AV/YPbPr |
| Input resolution |
1024x768~1080p,commonly used resolutions |
| Output signal format |
DVI/VGA/AV/YPbPr/(DVI- converter) |
| Output resolution |
Up to 1920x1200/60HZ |
| System control software |
Special control software |
| Power Supply |
Redundant power supply 110-220VAC, 50/60Hz |
| Consumption |
12W/channel |
| Working temperature |
-20°C——60°C |
| Working Humidity |
5-95% |
| Case specification |
4U/6U/10U/15U standard rackmount chassis |
| Serial Control Interface |
RS-232,9-pin female, Type-D |
| Baud Rate |
115200 |
| Pin configuration |
2=TX,3=RX,5=GND |
| Ethernet control interface |
RJ-45 female, TCP/IP |
| Ethernet control speed |
Auto 10M or 100M,Full-duplex or half-duplex |
| Working time |
365x7x24hrs |
| Technical specification of input/output connectors |
| VGA/RGB input |
Input: 15pin HD D-Sub, female |
| Sync mode: HV independent sync |
| Color Depth: 32bit/pixel |
| Resolution: 640*480/60HZ—1920*1200/60HZ |
| Input impedance :75Ω |
| Video input |
Input connector: BNC |
| Detecting: full-format auto detecting |
| Input impedance :75Ω |
| VGA or DVI output |
Resolution:1024x768/60HZ-1920x1200/60HZ |
| Color depth: 32bit/pixel |
| Output impedance:75Ω |
| Physical properties of input/output connectors |
| Signals |
Connectors |
Type |
| Composite VIDEO input |
BNC |
female |
| VGA input |
15 pin HD D-Sub |
female |
| VGA output |
15 pin HD D-Sub |
female |
| DVI output |
24+5 or 24+1 standard |
female |
| AUX RS-232 |
9-pin D-Sub |
female |
| Main RS-232 |
9-pin D-Sub |
female |
