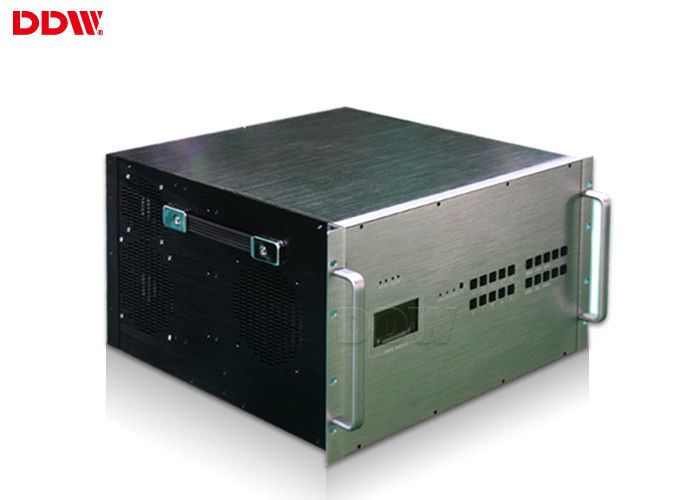

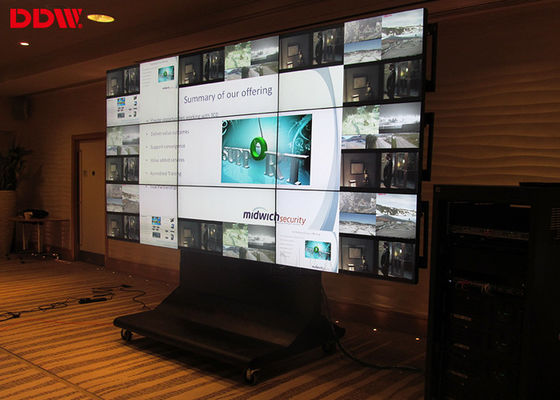

Advertising lcd Display 4x4 video wall processor 40 input channels 18 / 36 output channels DDW-VPH1010
Features:
1, Compact and expandable inputs and outputs
40 input channels , can be extended up to 18 or 36 output channels , you can realize a large-scale multi-display system in a compact one-unit housing.
2, Power-saving design
Build-in power-saving graphics board and parts reduction effect by one unit structure design.
3, Easy Replacement
Rear detachable input-output board introduction and expansion can be easily.
User can replace the input and output board with a single unit without removing the entire chassis from the rack.
4, 2 split ~ 4 split display function (one single screen)
One single screen up to 4 signal source simultaneously input , it can be layout in any pattern and superimposed images.
5, Looping Playback
It can be stored more than 100 sets of display mode.
Support looping playback and control switching via RS232 network or TCP/IP mode.
6, Operation System
Support Microsoft Windows , Linux , Sun , and Mac operation systems.
7, Power off memory function
When the system power outage then restoration again , it will return to the state before the power failure.
8, Plug & Play function
Pure external hardware design , free to install any software or drivers.
9, Input status identified
Operation software can be identified for each input and output interfaces , and can identify the input ports there a signal input.
| Technical Specifications |
| Model series |
With CBD |
No CBD |
| Function description |
4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image |
16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
| Input signal(optional) |
/DVI/VGA/AV/YPbPr |
| Input resolution |
1024x768~1080p,commonly used resolutions |
| Output signal format |
DVI/VGA/AV/YPbPr/(DVI- converter) |
| Output resolution |
Up to 1920x1200/60HZ |
| System control software |
Special control software |
| Power Supply |
Redundant power supply 110-220VAC, 50/60Hz |
| Consumption |
12W/channel |
| Working temperature |
-20°C——60°C |
| Working Humidity |
5-95% |
| Case specification |
4U/6U/10U/15U standard rackmount chassis |
| Serial Control Interface |
RS-232,9-pin female, Type-D |
| Baud Rate |
115200 |
| Pin configuration |
2=TX,3=RX,5=GND |
| Ethernet control interface |
RJ-45 female, TCP/IP |
| Ethernet control speed |
Auto 10M or 100M,Full-duplex or half-duplex |
| Working time |
365 x 7 x 24hrs |
| Technical specification of input/output connectors |
| VGA/RGB input |
Input: 15pin HD D-Sub, female |
| Sync mode: HV independent sync |
| Color Depth: 32bit/pixel |
| Resolution: 640 x 480/60HZ—1920 x1200/60HZ |
| Input impedance :75Ω |
| Video input |
Input connector: BNC |
| Detecting: full-format auto detecting |
| Input impedance :75Ω |
| VGA or DVI output |
Resolution:1024 x 768/60HZ-1920 x 1200/60HZ |
| Color depth: 32bit/pixel |
| Output impedance:75Ω |
| Physical properties of input/output connectors |
| Signals |
Connectors |
Type |
| Composite VIDEO input |
BNC |
female |
| VGA input |
15 pin HD D-Sub |
female |
| VGA output |
15 pin HD D-Sub |
female |
| DVI output |
24+5 or 24+1 standard |
female |
| AUX RS-232 |
9-pin D-Sub |
female |
| Main RS-232 |
9-pin D-Sub |
female |
