| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 ,CE , RoHS , FCC |
| Model Number: | DDW-VPH1212 |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotiable |
| Packaging Details: | Double layer carton pack |
| Delivery Time: | 3working days upon payment |
| Payment Terms: | T/T,L/C,Western Union,Alibaba Trade Assurance |
| Supply Ability: | 1000pcs/month |
| Videowall Controller Color Quality:: | 32bit | IPad/iPhone Remote Control: | Support Customized APP Remote Control |
|---|---|---|---|
| Max PIP Per Screen:: | 1,4,16,customization | Control Method: | RS232,IP |
| Maximum Output Numbers:: | 128 | Solid Display: | Support Each Screen Input With Separate Signal |
| Standard Packing: | Double Layer Carton Box Pack | Weight: | 5-100kg |
| High Light: | multi display processor,videowall processor |
||

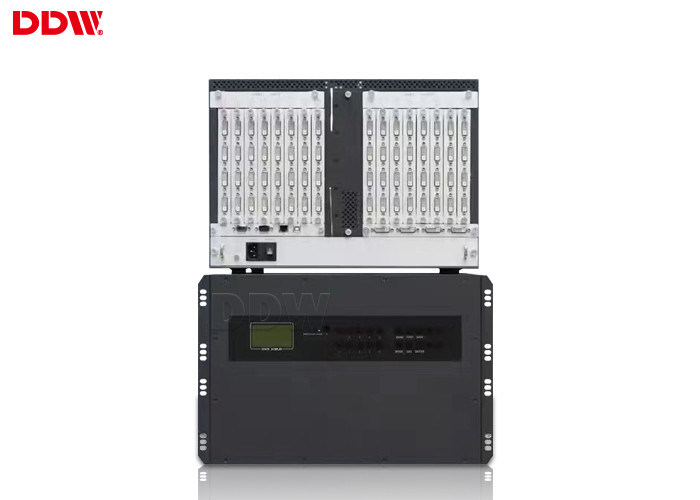

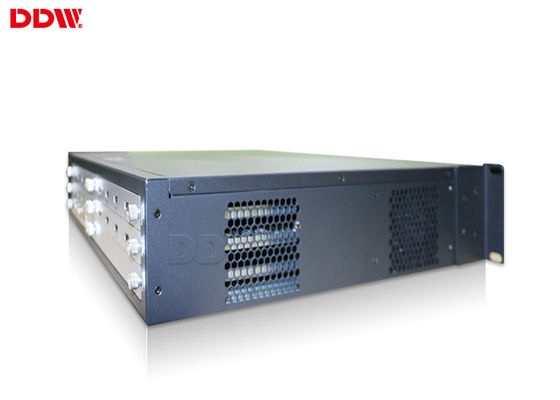

3x3 video wall processor Multi - Input format switching support RS232 / IP Control method DDW-VPH1212
Introduction:
1, Multi-Input format switching support
VGA,DVI,CVBS, and SDI such as multi-input format support.
2, Looping Playback
It can be stored more than 100 sets of display mode.
Support looping playback and control switching via RS232 network or TCP/IP mode.
3, Operation System
Support Microsoft Windows , Linux , Sun , and Mac operation systems.
4, Power off memory function
When the system power outage then restoration again , it will return to the state before the power failure.
5,Plug & Play function
Pure external hardware design , free to install any software or drivers.
6, Input status identified
Operation software can be identified for each input and output interfaces , and can identify the input ports there a signal input.
Lcd video wall controller can be widely used for:monitoring, directing, scheduling system, public security, fire, military, weather, rail, and aviation monitoring system, video conferencing, query systems.
| Technical Specifications | ||
| Model series | With CBD | No CBD |
| Function description | 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image | 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
| Input signal(optional) | /DVI/VGA/AV/YPbPr | |
| Input resolution | 1024x768~1080p,commonly used resolutions | |
| Output signal format | DVI/VGA/AV/YPbPr/(DVI- converter) | |
| Output resolution | Up to 1920x1200/60HZ | |
| System control software | Special control software | |
| Power Supply | Redundant power supply 110-220VAC, 50/60Hz | |
| Consumption | 12W/channel | |
| Working temperature | -20°C——60°C | |
| Working Humidity | 5-95% | |
| Case specification | 4U/6U/10U/15U standard rackmount chassis | |
| Serial Control Interface | RS-232,9-pin female, Type-D | |
| Baud Rate | 115200 | |
| Pin configuration | 2=TX,3=RX,5=GND | |
| Ethernet control interface | RJ-45 female, TCP/IP | |
| Ethernet control speed | Auto 10M or 100M,Full-duplex or half-duplex | |
| Working time | 365 x 7 x 24hrs | |
| Technical specification of input/output connectors | ||
| VGA/RGB input | Input: 15pin HD D-Sub, female | |
| Sync mode: HV independent sync | ||
| Color Depth: 32bit/pixel | ||
| Resolution: 640 x 480/60HZ—1920 x1200/60HZ | ||
| Input impedance :75Ω | ||
| Video input | Input connector: BNC | |
| Detecting: full-format auto detecting | ||
| Input impedance :75Ω | ||
| VGA or DVI output | Resolution:1024 x 768/60HZ-1920 x 1200/60HZ | |
| Color depth: 32bit/pixel | ||
| Output impedance:75Ω | ||
| Physical properties of input/output connectors | ||
| Signals | Connectors | Type |
| Composite VIDEO input | BNC | female |
| VGA input | 15 pin HD D-Sub | female |
| VGA output | 15 pin HD D-Sub | female |
| DVI output | 24+5 or 24+1 standard | female |
| AUX RS-232 | 9-pin D-Sub | female |
| Main RS-232 | 9-pin D-Sub | female |
