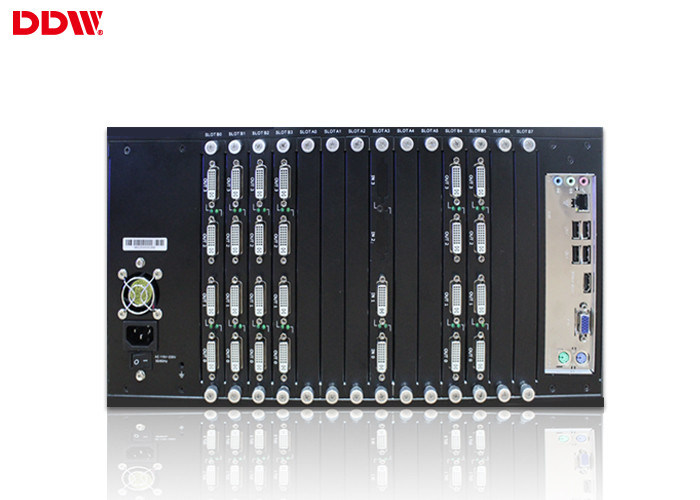

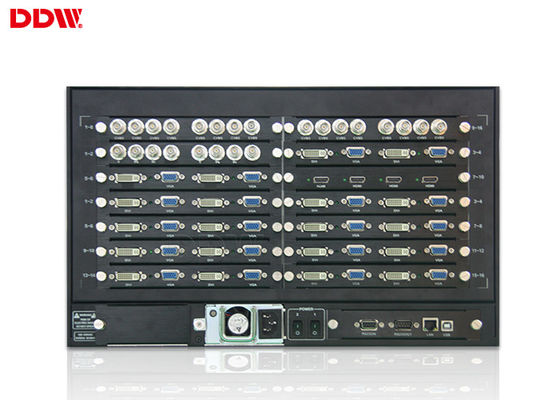

1080P display Video Wall Processor Support DIV and 3G - SDI signal output DDW-VPH1414

1080P display Video Wall Processor Support DIV and 3G - SDI signal output DDW-VPH1414

    • 1080P display Video Wall Processor Support DIV and 3G - SDI signal output DDW-VPH1414
    • 1080P display Video Wall Processor Support DIV and 3G - SDI signal output DDW-VPH1414
  • 1080P display Video Wall Processor Support DIV and 3G - SDI signal output DDW-VPH1414

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 ,CE , RoHS , FCC
    Model Number: DDW-VPH1414

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiable
    Packaging Details: Double layer carton pack
    Delivery Time: 3working days upon payment
    Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Max PIP Per Screen:: 1,4,16,customization IPad/iPhone Remote Control: Support Customized APP Remote Control
    Solid Display: Support Each Screen Input With Separate Signal Scene Management: Support Multiple Scenes Management/recall Function
    Control Method: RS232,IP Input Output Signal Sources:: HDMI,DVI,VGA,AV,YPBPR,IP
    Standard Packing: Double Layer Carton Box Pack Weight: 5-100kg

    1080P display Video Wall Processor Support DIV and 3G - SDI signal output DDW-VPH1414





    Video Wall Scaler can be widely used for: monitoring, directing, scheduling system, public security, fire, military, weather, rail, and aviation monitoring system, video conferencing, query systems.

     key features:
    1, Full hardware configuration without operating system
    2, High-speed bus parallel processing technology, high-bandwidth uncompressed processing
    3, Real time image display, no dropped frames
    4, Support display at arbitrary position, at any size and any superimposed
    5, Support open-window effects processing
    6, Support large-screen image freeze
    7, Flexibility to increase the input/output board

    8, Redundant power supply design, thermostatically controlled fan
    9, Support partial input and output cards with mixed interpolation
    10, Input/output card supports hot-swappable, plug-and-play functionality
    11, Support memory card or network transmission ultra-high-definition pictures, peer-to-peer ultra-high-definition mosaic wall background image
    12, Chassis backplane + plug-in configuration, excellent performance for radiating, anti-dust chassis, equipped with replaceable air filter can be stable for a long time, even in harsh environment



    Products application:

    1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.

    2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.

    3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.

    4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.

    5. Public Service: Hospital, School, Telecom, Post office, etc.

    6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.



    Technical Specifications
    Model series With CBD No CBD
    Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
    Input signal(optional) HDMI/DVI/VGA/AV/YPbPr
    Input resolution 1024x768~1080p,commonly used resolutions
    Output signal format DVI/VGA/AV/YPbPr/HDMI(DVI-HDMI converter)
    Output resolution Up to 1920x1200/60HZ
    System control software Special control software
    Power Supply Redundant power supply 110-220VAC, 50/60Hz
    Consumption 12W/channel
    Working temperature -20°C——60°C
    Working Humidity 5-95%
    Case specification 4U/6U/10U/15U standard rackmount chassis
    Serial Control Interface RS-232,9-pin female, Type-D
    Baud Rate 115200
    Pin configuration 2=TX,3=RX,5=GND
    Ethernet control interface RJ-45 female, TCP/IP
    Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
    Working time 365 x 7 x 24hrs
    Technical specification of input/output connectors
    VGA/RGB input Input: 15pin HD D-Sub, female
    Sync mode: HV independent sync
    Color Depth: 32bit/pixel
    Resolution: 640 x 480/60HZ—1920 x1200/60HZ
    Input impedance :75Ω
    Video input Input connector: BNC
    Detecting: full-format auto detecting
    Input impedance :75Ω
    VGA or DVI output Resolution:1024 x 768/60HZ-1920 x 1200/60HZ
    Color depth: 32bit/pixel
    Output impedance:75Ω
    Physical properties of input/output connectors
    Signals Connectors Type
    Composite VIDEO input BNC female
    VGA input 15 pin HD D-Sub female
    VGA output 15 pin HD D-Sub female
    DVI output 24+5 or 24+1 standard female
    AUX RS-232 9-pin D-Sub female
    Main RS-232 9-pin D-Sub female

    1080P display Video Wall Processor Support DIV and 3G - SDI signal output DDW-VPH14141080P display Video Wall Processor Support DIV and 3G - SDI signal output DDW-VPH1414
