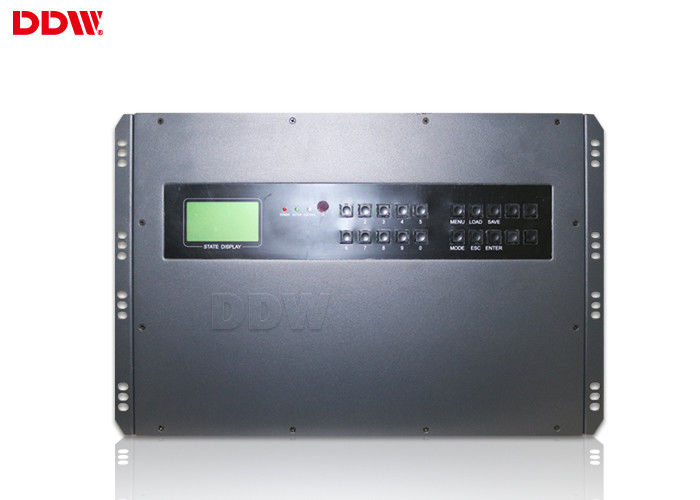

Datapath x4 - video wall controller aluminum brushed frame RS232 / IP Control method DDW-VPH0506

Name: Datapath x4 - video wall controller aluminum brushed frame RS232 / IP Control method DDW-VPH0506
Brand: DDW
SKU: DDW-VPH0506
Rating: 5 (173 reviews)

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 ,CE , RoHS , FCC

Model Number: DDW-VPH0506

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Double layer carton pack

Delivery Time: 3working days upon payment

Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance

Supply Ability: 1000pcs/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                lcd video wall controller, video wall processor


Frame Material::	Aluminum Brushed	IPad/iPhone Remote Control:	Support Customized APP Remote Control
Maximum Input Numbers::	128	Maximum Output Numbers::	128
Control Method:	RS232,IP	Input Output Signal Sources::	,DVI,VGA,AV,YPBPR,IP
Standard Packing:	Double Layer Carton Box Pack	Weight:	5-100kg

Frame Material::	Aluminum Brushed
IPad/iPhone Remote Control:	Support Customized APP Remote Control
Maximum Input Numbers::	128
Maximum Output Numbers::	128
Control Method:	RS232,IP
Input Output Signal Sources::	,DVI,VGA,AV,YPBPR,IP
Standard Packing:	Double Layer Carton Box Pack
Weight:	5-100kg

Product Description

Datapath x4 - video wall controller aluminum brushed frame RS232 / IP Control method DDW-VPH0506

Video and Image Processing :

1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
2. Inputs/windows can be resized, layered and positioned across screen boundaries
3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
4. Input sources can be cropped to remove the edge pixels and lines
5. Dual-Link DVI Input (capture) cards support 4K ×4K resolution or a customizable resolution. Any source can be captured

Introduction:

1. Modular design, plug-in structure,can be combined free assembled depending on the application

2. Standard rack structure , industrial-grade chassis system design

3. Support for DIV,,VGA,RJ45,3G-SDI,Video(CVBS) multi-signal input formats

4. Support DIV and 3G-SDI signal output

5. Input and output resolution maximum support 1920×1080,can be backward compatible with 1080P and 720P formats

6. Video signal 4 split screen display, mult-port video signal can be displayed simultaneously

Technical Specifications
Model series	With CBD	No CBD
Function description	4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image	16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional)	/DVI/VGA/AV/YPbPr
Input resolution	1024x768~1080p,commonly used resolutions
Output signal format	DVI/VGA/AV/YPbPr/(DVI- converter)
Output resolution	Up to 1920x1200/60HZ
System control software	Special control software
Power Supply	Redundant power supply 110-220VAC, 50/60Hz
Consumption	12W/channel
Working temperature	-20°C——60°C
Working Humidity	5-95%
Case specification	4U/6U/10U/15U standard rackmount chassis
Serial Control Interface	RS-232,9-pin female, Type-D
Baud Rate	115200
Pin configuration	2=TX,3=RX,5=GND
Ethernet control interface	RJ-45 female, TCP/IP
Ethernet control speed	Auto 10M or 100M,Full-duplex or half-duplex
Working time	365 x 7 x 24hrs
Technical specification of input/output connectors
VGA/RGB input	Input: 15pin HD D-Sub, female
	Sync mode: HV independent sync
	Color Depth: 32bit/pixel
	Resolution: 640 x 480/60HZ—1920 x1200/60HZ
	Input impedance :75Ω
Video input	Input connector: BNC
	Detecting: full-format auto detecting
	Input impedance :75Ω
VGA or DVI output	Resolution:1024 x 768/60HZ-1920 x 1200/60HZ
	Color depth: 32bit/pixel
	Output impedance:75Ω

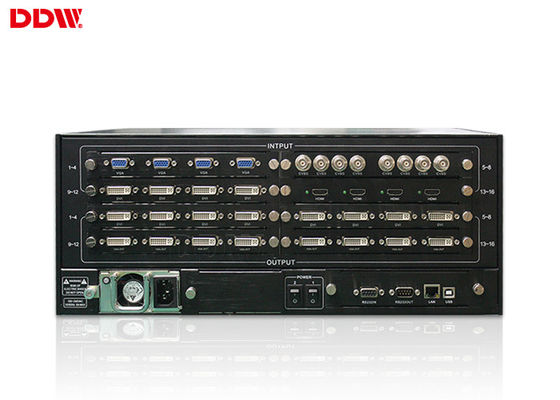

Physical properties of input/output connectors
Signals	Connectors	Type
Composite VIDEO input	BNC	female
VGA input	15 pin HD D-Sub	female
VGA output	15 pin HD D-Sub	female
DVI output	24+5 or 24+1 standard	female
AUX RS-232	9-pin D-Sub	female
Main RS-232	9-pin D-Sub	female
