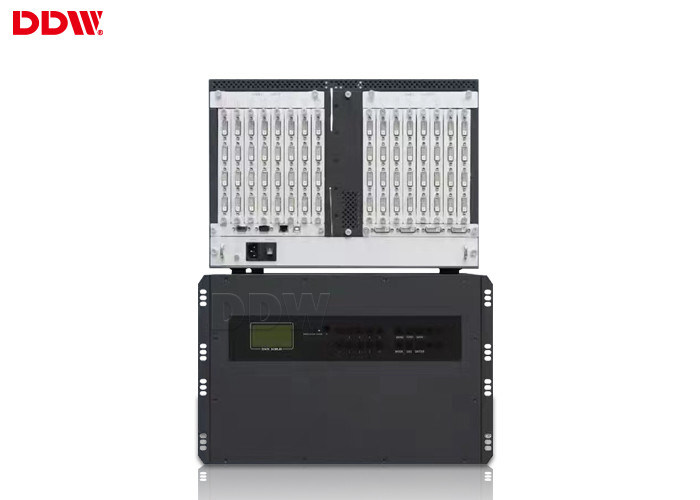

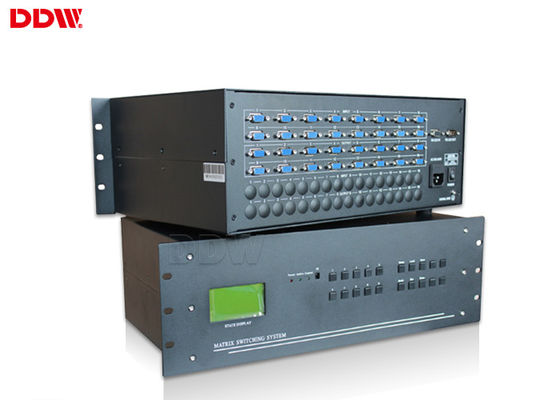

/ VGA / J45 / DIV Video Wall Controller multi - signal input formats Aluminum brushed DDW-VPH0809

/ VGA / J45 / DIV Video Wall Controller multi - signal input formats Aluminum brushed DDW-VPH0809

    •  / VGA / J45 / DIV Video Wall Controller multi - signal input formats Aluminum brushed DDW-VPH0809
    •  / VGA / J45 / DIV Video Wall Controller multi - signal input formats Aluminum brushed DDW-VPH0809
  •  / VGA / J45 / DIV Video Wall Controller multi - signal input formats Aluminum brushed DDW-VPH0809

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 ,CE , RoHS , FCC
    Model Number: DDW-VPH0809

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiable
    Packaging Details: Double layer carton pack
    Delivery Time: 3working days upon payment
    Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Max PIP Per Screen:: 1,4,16,customization Video Wall Controller Output Resolution:: 1920x1080
    Maximum Input Numbers:: 128 Frame Material:: Aluminum Brushed
    Input Output Signal Sources:: ,DVI,VGA,AV,YPBPR,IP Standard Packing: Double Layer Carton Box Pack
    Weight: 5-100kg
    High Light:

    lcd video wall controller

    ,

    video wall processor

    / VGA / J45 / DIV Video Wall Controller multi - signal input formats Aluminum brushed DDW-VPH0809



    Introduction:

    1. Modular design, plug-in structure,can be combined free assembled depending on the application

    2. Standard rack structure , industrial-grade chassis system design

    3. Support for DIV,,VGA,RJ45,3G-SDI,Video(CVBS) multi-signal input formats

    4. Support DIV and 3G-SDI signal output

    5. Input and output resolution maximum support 1920×1080,can be backward compatible with 1080P and 720P formats

    6. Video signal 4 split screen display, mult-port video signal can be displayed simultaneously



    Video and Image Processing :

    1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
    2. Inputs/windows can be resized, layered and positioned across screen boundaries
    3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
    4. Input sources can be cropped to remove the edge pixels and lines
    5. Dual-Link DVI Input (capture) cards support 4K resolution or a customizable resolution. Any source can be captured



    Technical Specifications
    Model series With CBD No CBD
    Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
    Input signal(optional) /DVI/VGA/AV/YPbPr
    Input resolution 1024x768~1080p,commonly used resolutions
    Output signal format DVI/VGA/AV/YPbPr/(DVI- converter)
    Output resolution Up to 1920x1200/60HZ
    System control software Special control software
    Power Supply Redundant power supply 110-220VAC, 50/60Hz
    Consumption 12W/channel
    Working temperature -20°C——60°C
    Working Humidity 5-95%
    Case specification 4U/6U/10U/15U standard rackmount chassis
    Serial Control Interface RS-232,9-pin female, Type-D
    Baud Rate 115200
    Pin configuration 2=TX,3=RX,5=GND
    Ethernet control interface RJ-45 female, TCP/IP
    Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
    Working time 365 x 7 x 24hrs
    Technical specification of input/output connectors
    VGA/RGB input Input: 15pin HD D-Sub, female
    Sync mode: HV independent sync
    Color Depth: 32bit/pixel
    Resolution: 640 x 480/60HZ—1920 x1200/60HZ
    Input impedance :75Ω
    Video input Input connector: BNC
    Detecting: full-format auto detecting
    Input impedance :75Ω
    VGA or DVI output Resolution:1024 x 768/60HZ-1920 x 1200/60HZ
    Color depth: 32bit/pixel
    Output impedance:75Ω
    Physical properties of input/output connectors
    Signals Connectors Type
    Composite VIDEO input BNC female
    VGA input 15 pin HD D-Sub female
    VGA output 15 pin HD D-Sub female
    DVI output 24+5 or 24+1 standard female
    AUX RS-232 9-pin D-Sub female
    Main RS-232 9-pin D-Sub female

     / VGA / J45 / DIV Video Wall Controller multi - signal input formats Aluminum brushed DDW-VPH0809 0 / VGA / J45 / DIV Video Wall Controller multi - signal input formats Aluminum brushed DDW-VPH0809 1
