| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 ,CE , RoHS , FCC |
| Model Number: | DDW-VPH1212 |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotiable |
| Packaging Details: | Double layer carton pack |
| Delivery Time: | 3working days upon payment |
| Payment Terms: | T/T,L/C,Western Union,Alibaba Trade Assurance |
| Supply Ability: | 1000pcs/month |
| System Default:: | EDID | Max. Data Rate:: | 3.2Gbps |
|---|---|---|---|
| Warranty:: | 3Years | Control Method: | RS232,IP |
| Rich Resolution: | Support 1080P,1080I,720P,480P &multiple Resolution Inputs | Frame Material: | Aluminum Brushed |
| Standard Packing: | Double Layer Carton Box Pack | Weight: | 5-100kg |
| High Light: | multi display processor,videowall processor |
||

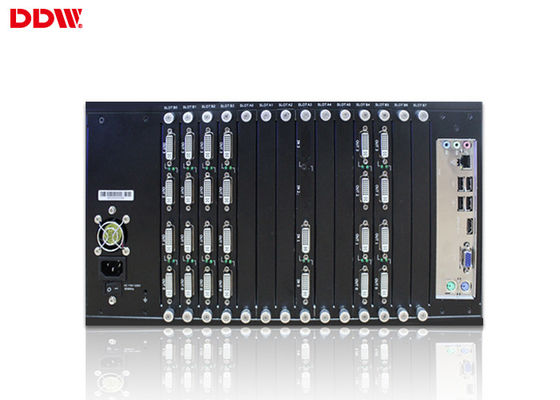

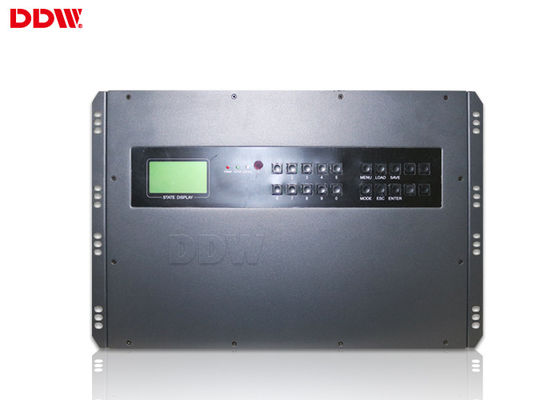

Large video wall display wall processor data path x4 daisy chain 144ch Max Signal output DDW-VPH1212
Key Features:
1 . Support large-screen image freeze
2 . Support open-window effects processing
3 . Flexibility to increase the input/output board
4 . Real time image display, no dropped frames
5 . Full hardware configuration without operating system
6 . Support partial input and output cards with mixed interpolation
7 . Redundant power supply design, thermostatically controlled fan
8 . Input/output card supports hot-swappable, plug-and-play functionality
9 . Support display at arbitrary position, at any size and any superimposed
10 . High-speed bus parallel processing technology, high-bandwidth uncompressed processing
DDW Lcd video wall Processor is one of professional modularized and hardware Lcd video wall processor which supports ,DVI,VGA,AV,YPBPR, each channel support 1920x1200 resolution signal inputs and outputs,RS232 and IP control method.
Some of the Video Wall Controller Parameters:
| Vertical/Horizontal Display | Support |
| Combine Display | Support combine any horizontal &vertical numbers of screens and show display |
| Support combine all screens together to show 1image | |
| Solid Display | Support each screen input with separate signal |
| PIP/Zoom/Roaming | Support open one window for each screen, each window can be zoomed &roaming internal freely |
| iPad/iPhone remote control | Support customized APP remote control |
| Signal preview function | Support Audit/Preview signal before output to windows/video wall screens |
| Scene management | Support Multiple scenes management/recall function |
| Support scenes cycle broadcast | Support scenes cycle broadcast function |
| Multiple Interfaces | Support multiple DVI,,VGA,AV inputss &multiple signal outputs |
| Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolution inputs |
| Standard Packing | Double layer carton box pack |
| Weight | 5-100kg |
| 6kg-110kg |
Detail Parameters:
| Technical Specifications | ||
| Model series | With CBD | No CBD |
| Function description | 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image | 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
| Input signal(optional) | /DVI/VGA/AV/YPbPr | |
| Input resolution | 1024x768~1080p,commonly used resolutions | |
| Output signal format | DVI/VGA/AV/YPbPr/(DVI- converter) | |
| Output resolution | Up to 1920x1200/60HZ | |
| System control software | Special control software | |
| Power Supply | Redundant power supply 110-220VAC, 50/60Hz | |
| Consumption | 12W/channel | |
| Working temperature | -20°C——60°C | |
| Working Humidity | 5-95% | |
| Case specification | 4U/6U/10U/15U standard rackmount chassis | |
| Serial Control Interface | RS-232,9-pin female, Type-D | |
| Baud Rate | 115200 | |
| Pin configuration | 2=TX,3=RX,5=GND | |
| Ethernet control interface | RJ-45 female, TCP/IP | |
| Ethernet control speed | Auto 10M or 100M,Full-duplex or half-duplex | |
| Working time | 365x7x24hrs | |
| Technical specification of input/output connectors | ||
| VGA/RGB input | Input: 15pin HD D-Sub, female | |
| Sync mode: HV independent sync | ||
| Color Depth: 32bit/pixel | ||
| Resolution: 640*480/60HZ—1920*1200/60HZ | ||
| Input impedance :75Ω | ||
| Video input | Input connector: BNC | |
| Detecting: full-format auto detecting | ||
| Input impedance :75Ω | ||
| VGA or DVI output | Resolution:1024x768/60HZ-1920x1200/60HZ | |
| Color depth: 32bit/pixel | ||
| Output impedance:75Ω | ||
| Physical properties of input/output connectors | ||
| Signals | Connectors | Type |
| Composite VIDEO input | BNC | female |
| VGA input | 15 pin HD D-Sub | female |
| VGA output | 15 pin HD D-Sub | female |
| DVI output | 24+5 or 24+1 standard | female |
| AUX RS-232 | 9-pin D-Sub | female |
| Main RS-232 | 9-pin D-Sub | female |
