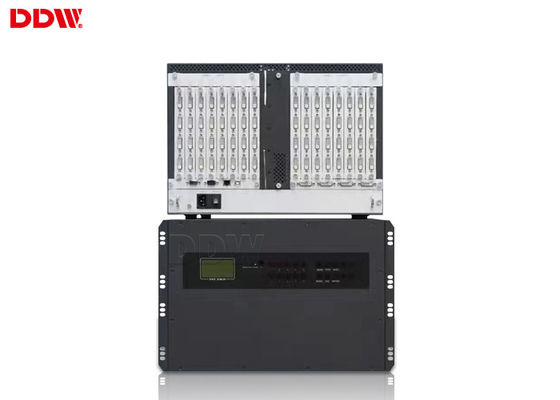

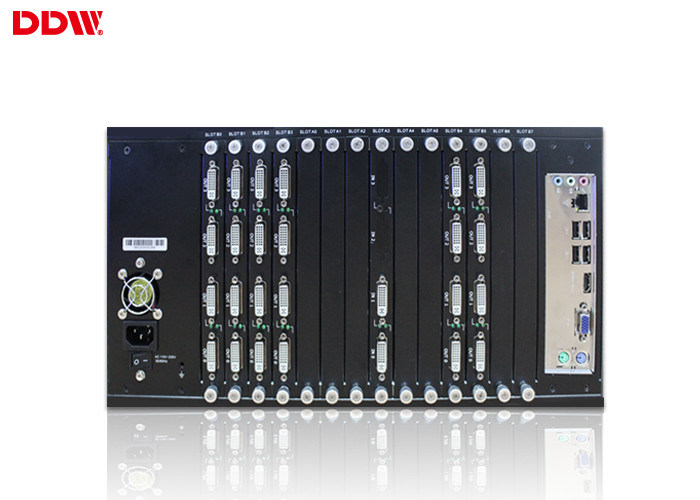

Conference Room Video Wall Processor Scaler 3.2Gbps Data Rate Full Hardware Configuration DDW-VPH0305
It has following key features:
1. Full hardware configuration without operating system
2. High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3. Real time image display, no dropped frames
4. Support display at arbitrary position, at any size and any superimposed
5. Support open-window effects processing
6. Support large-screen image freeze
7. Support 7 x 24 uninterrupted and stable working
8. Flexibility to increase the input/output board
9. Support partial input and output cards with mixed interpolation
10. Input/output card supports hot-swappable, plug-and-play functionality
11. Output resolution up to 1920 x 1200
DDW Video Wall Scaler is one of professional modularized and hardware Video wall processor which supports ,DVI,VGA,AV,YPBPR, each channel support 1920 x1200 resolution signal inputs and outputs,RS232 and IP control method.Video wall processor can be widely used for:monitoring, directing, scheduling system, public security, fire, military, weather, rail, and aviation monitoring system, video conferencing, query systems.
Technical Specifications | ||
Model series | With CBD | No CBD |
Function description | 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image | 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
Input signal(optional) | /DVI/VGA/AV/YPbPr | |
Input resolution | 1024x768~1080p,commonly used resolutions | |
Output signal format | DVI/VGA/AV/YPbPr/(DVI- converter) | |
Output resolution | Up to 1920x1200/60HZ | |
System control software | Special control software | |
Power Supply | Redundant power supply 110-220VAC, 50/60Hz | |
Consumption | 12W/channel | |
Working temperature | -20°C——60°C | |
Working Humidity | 5-95% | |
Case specification | 4U/6U/10U/15U standard rackmount chassis | |
Serial Control Interface | RS-232,9-pin female, Type-D | |
Baud Rate | 115200 | |
Pin configuration | 2=TX,3=RX,5=GND | |
Ethernet control interface | RJ-45 female, TCP/IP | |
Ethernet control speed | Auto 10M or 100M,Full-duplex or half-duplex | |
Working time | 365x7x24hrs | |
Technical specification of input/output connectors | ||
VGA/RGB input | Input: 15pin HD D-Sub, female | |
Sync mode: HV independent sync | ||
Color Depth: 32bit/pixel | ||
Resolution: 640*480/60HZ—1920*1200/60HZ | ||
Input impedance :75Ω | ||
Video input | Input connector: BNC | |
Detecting: full-format auto detecting | ||
Input impedance :75Ω | ||
VGA or DVI output | Resolution:1024x768/60HZ-1920x1200/60HZ | |
Color depth: 32bit/pixel | ||
Output impedance:75Ω | ||
Physical properties of input/output connectors | ||
Signals | Connectors | Type |
Composite VIDEO input | BNC | female |
VGA input | 15 pin HD D-Sub | female |
VGA output | 15 pin HD D-Sub | female |
DVI output | 24+5 or 24+1 standard | female |
AUX RS-232 | 9-pin D-Sub | female |
Main RS-232 | 9-pin D-Sub | female |
