| Frame Material:: | Aluminum Brushed | Dimension:: | 4U,10U,15U W, D, H, Rack Mountable |
|---|---|---|---|
| Max PIP Per Screen:: | 1,4,16,customization | Control Method: | RS232,IP |
| Max. Data Rate:: | 3.2Gbps | Warranty:: | 3Years |
| Standard Packing: | Double Layer Carton Box Pack | Weight: | 5-100kg |
| High Light: | lcd video wall controller,video wall processor |
||

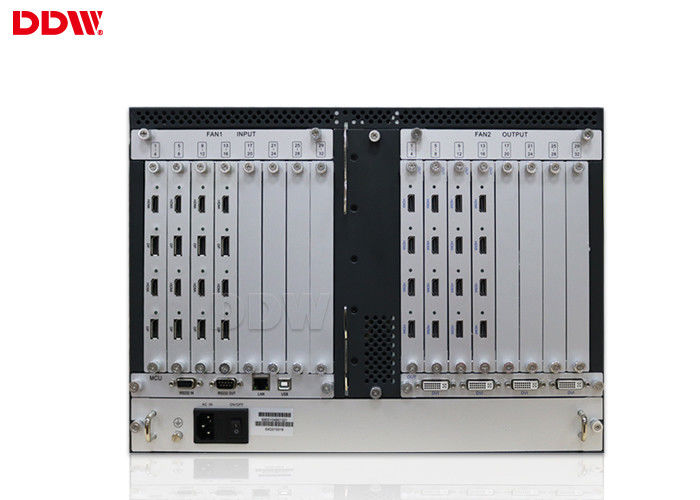

Digital signage video wall Controller , display wall controller EDID System Default DDW-VPH0202
Introduction
1. Modular design, plug-in structure,can be combined free assembled depending on the application
2. Standard rack structure , industrial-grade chassis system design
3. Support for DIV,,VGA,RJ45,3G-SDI,Video(CVBS) multi-signal input formats
4. Support DIV and 3G-SDI signal output
5. Input and output resolution maximum support 1920×1080,can be backward compatible with 1080P and 720P formats
6. Video signal 4 split screen display, mult-port video signal can be displayed simultaneously
Products application:
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
Video and Image Processing :
1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
2. Inputs/windows can be resized, layered and positioned across screen boundaries
3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
4. Input sources can be cropped to remove the edge pixels and lines
5. Dual-Link DVI Input (capture) cards support 4K resolution or a customizable resolution. Any source can be captured
| Technical Specifications | ||
| Model series | With CBD | No CBD |
| Function description | 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image | 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
| Input signal(optional) | /DVI/VGA/AV/YPbPr | |
| Input resolution | 1024x768~1080p,commonly used resolutions | |
| Output signal format | DVI/VGA/AV/YPbPr/(DVI- converter) | |
| Output resolution | Up to 1920x1200/60HZ | |
| System control software | Special control software | |
| Power Supply | Redundant power supply 110-220VAC, 50/60Hz | |
| Consumption | 12W/channel | |
| Working temperature | -20°C——60°C | |
| Working Humidity | 5-95% | |
| Case specification | 4U/6U/10U/15U standard rackmount chassis | |
| Serial Control Interface | RS-232,9-pin female, Type-D | |
| Baud Rate | 115200 | |
| Pin configuration | 2=TX,3=RX,5=GND | |
| Ethernet control interface | RJ-45 female, TCP/IP | |
| Ethernet control speed | Auto 10M or 100M,Full-duplex or half-duplex | |
| Working time | 365 x 7 x 24hrs | |
| Technical specification of input/output connectors | ||
| VGA/RGB input | Input: 15pin HD D-Sub, female | |
| Sync mode: HV independent sync | ||
| Color Depth: 32bit/pixel | ||
| Resolution: 640 x 480/60HZ—1920 x1200/60HZ | ||
| Input impedance :75Ω | ||
| Video input | Input connector: BNC | |
| Detecting: full-format auto detecting | ||
| Input impedance :75Ω | ||
| VGA or DVI output | Resolution:1024 x 768/60HZ-1920 x 1200/60HZ | |
| Color depth: 32bit/pixel | ||
| Output impedance:75Ω | ||
| Physical properties of input/output connectors | ||
| Signals | Connectors | Type |
| Composite VIDEO input | BNC | female |
| VGA input | 15 pin HD D-Sub | female |
| VGA output | 15 pin HD D-Sub | female |
| DVI output | 24+5 or 24+1 standard | female |
| AUX RS-232 | 9-pin D-Sub | female |
| Main RS-232 | 9-pin D-Sub | female |
