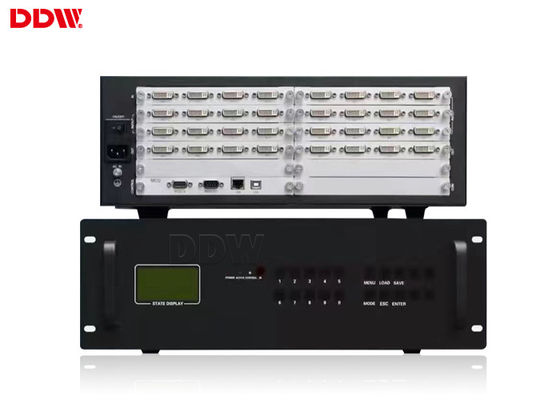

Outdoor lcd display DIY Video Wall Controller 3.2Gbps Max. Data Rate 144ch / Max Signal output DDW-VPH0808

Name: Outdoor lcd display DIY Video Wall Controller 3.2Gbps Max. Data Rate 144ch / Max Signal output DDW-VPH0808
Brand: DDW
SKU: DDW-VPH0808
Rating: 4.6 (107 reviews)

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: DDW

Certification: ISO9001,CE,RoHS,FCC

Model Number: DDW-VPH0808

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: dual layer carton pack

Delivery Time: 3working days upon payment

Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance, D/A, D/P

Supply Ability: 1000pcs/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                lcd video wall controller, video wall processor


Dimension::	4U,10U,15U W, D, H, Rack Mountable	System Default::	EDID
Max. Data Rate:	3.2Gbps	Operating Temperature::	30°C
Supply Voltage::	100-200V	Dissipation Power::	50w
Standard Packing:	Double Layer Carton Box Pack	Weight:	5-100kg

Dimension::	4U,10U,15U W, D, H, Rack Mountable
System Default::	EDID
Max. Data Rate:	3.2Gbps
Operating Temperature::	30°C
Supply Voltage::	100-200V
Dissipation Power::	50w
Standard Packing:	Double Layer Carton Box Pack
Weight:	5-100kg

Product Description

Outdoor lcd display DIY Video Wall Controller 3.2Gbps Max. Data Rate 144ch / Max Signal output DDW-VPH0808

DIY Video wall controller key features:
1, High-speed bus parallel processing technology, high-bandwidth uncompressed processing
3, Real time image display, no dropped frames
4, Support display at arbitrary position, at any size and any superimposed
5, Support open-window effects processing
6, Support large-screen image freeze
7, Support 7×24 uninterrupted and stable working
8, Flexibility to increase the input/output board
9, Support partial input and output cards with mixed interpolation
10, Input/output card supports hot-swappable, plug-and-play functionality

Video and Image Processing :

1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
2. Inputs/windows can be resized, layered and positioned across screen boundaries
3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
4. Input sources can be cropped to remove the edge pixels and lines
5. Dual-Link DVI Input (capture) cards support 4K ×4K resolution or a customizable resolution. Any source can be captured

Key functions:

Technical Specifications
Model series	With CBD	No CBD
Function description	4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image	16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional)	/DVI/VGA/AV/YPbPr
Input resolution	1024x768~1080p,commonly used resolutions
Output signal format	DVI/VGA/AV/YPbPr/(DVI- converter)
Output resolution	Up to 1920×1200/60HZ
System control software	Special control software
Power Supply	Redundant power supply 110-220VAC, 50/60Hz
Consumption	12W/channel
Working temperature	-20°C——60°C
Working Humidity	5-95%

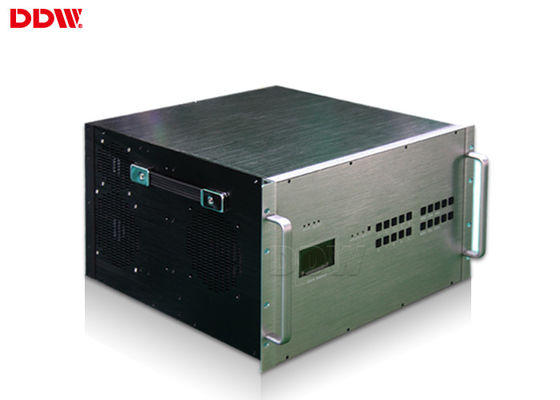

Case specification	4U/6U/10U/15U standard rackmount chassis
Serial Control Interface	RS-232,9-pin female, Type-D
Baud Rate	115200
Pin configuration	2=TX,3=RX,5=GND
Ethernet control interface	RJ-45 female, TCP/IP
Ethernet control speed	Auto 10M or 100M,Full-duplex or half-duplex
Working time	365×7×24hrs
Technical specification of input/output connectors
VGA/RGB input	Input: 15pin HD D-Sub, female
	Sync mode: HV independent sync
	Color Depth: 32bit/pixel
	Resolution: 640480/60HZ—19201200/60HZ
	Input impedance :75Ω
Video input	Input connector: BNC
	Detecting: full-format auto detecting
	Input impedance :75Ω
VGA or DVI output	Resolution:1024x768/60HZ-1920x1200/60HZ
	Color depth: 32bit/pixel
	Output impedance:75Ω

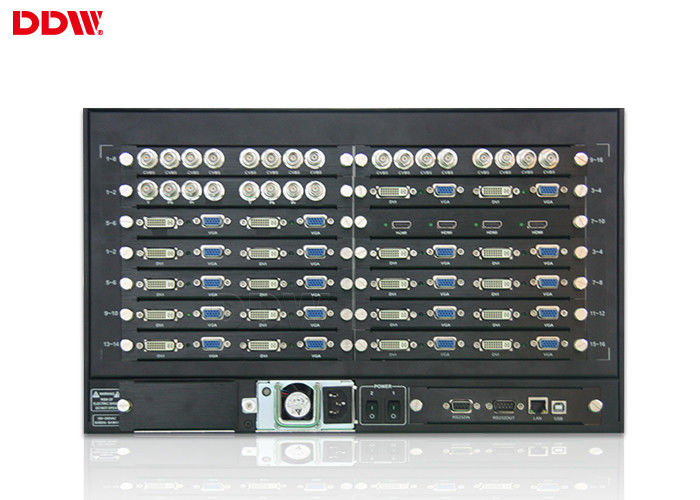

Physical properties of input/output connectors
Signals	Connectors	Type
Composite VIDEO input	BNC	female
VGA input	15 pin HD D-Sub	female
VGA output	15 pin HD D-Sub	female
DVI output	24+5 or 24+1 standard	female
AUX RS-232	9-pin D-Sub	female
Main RS-232	9-pin D-Sub	female

Outdoor lcd display DIY Video Wall Controller 3.2Gbps Max. Data Rate 144ch / Max Signal output DDW-VPH0808 0
