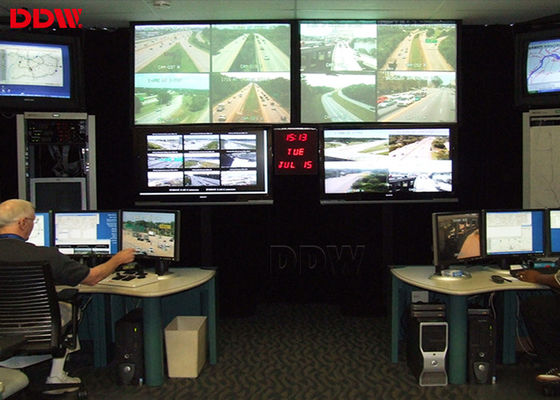

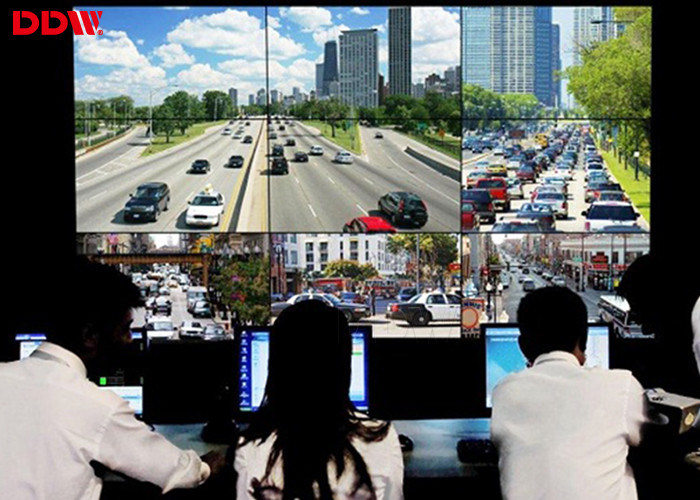

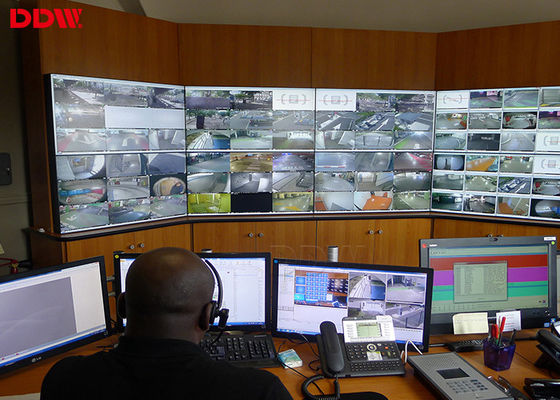

Security video wall 3x3 16:9 samsung lcd monitors for Surveillance and Retail Center

Security video wall 3x3 16:9 samsung lcd monitors for Surveillance and Retail Center

    • Security video wall 3x3 16:9 samsung lcd monitors for Surveillance and Retail Center
    • Security video wall 3x3 16:9 samsung lcd monitors for Surveillance and Retail Center
    • Security video wall 3x3 16:9 samsung lcd monitors for Surveillance and Retail Center
  • Security video wall 3x3 16:9 samsung lcd monitors for Surveillance and Retail Center

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC
    Model Number: DDW-LW550DUN

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiable
    Packaging Details: First layer carton pack with filling foam , then wood pallet pack
    Delivery Time: 3 working days upon payment
    Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
    Supply Ability: 3 , 000pcs per month
    Contact Now
    Detailed Product Description
    Panel Technology: IPS Temperature Sensor: Yes
    Bezel Width: 1.8 Mm Composite In: Yes
    Aspect Ratio: 16 : 9 PC Audio In: Composite In
    USB: Yes Control Method: RS232 Control
    Output ( Rear ) - Digital: Display Port ( 1 ) Output ( Rear ) - Audio: Audio Out ( 1 )

    Security video wall 3x3 16:9 samsung lcd monitors for Surveillance and Retail Center



          Samsung video wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.



    55" samsung video wall features:

    • Original Samsung Industrial grade LCD video wall screen, 16:9 Samsung a-Si TFT-LCD;
    • 700nits brightness, 3500:1 contrast;
    • FHD physical resolution 1920x1080;
    • Only 1.8mm Ultra narrow bezel, high quality, practical, good vision effect;
    • Signal interface rich --- RS232, HDMI, DVI, VGA, YPbPr, AV;
    • HD video wall unit--- High brightness, high contrast, high gamut;
    • Flexible structure design ---easy installation, extensible, arbitrary combination;
    • Stable performance, suitable working for a long time;



    Application



    DDW is one of leading manufacturer dedicated in R&D,manufacturing &selling commercial LCD displays especially LCD video wall systems for below fields: Conference and meeting rooms, office building, lobbies, Security Monitoring Center, Surveillance and Retail Center, Restaurant and hotel, Retail Shopping Mall Advertising and information Displays, Public Installations, Exhibition and show center, Live show,Rental and advertising Center,Museums,Church,Transportation and Mass Info Display systems.



    Specifications

    Model No. DDW-LW550DUN
    Panel Specifications
    LCD Technology Samsung a-Si TFT-LCD
    Active Screen Diagonal 55" (1397mm)
    Total Bezel Width 1.8 mm
    Aspect Ratio 16 : 9
    Backight System WLED
    Luminance(nits) 700cd/sqm
    Contrast 3500:1 (typ.)
    Viewing Angle H 178°|V 178°
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000 h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption <=250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor/Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 85% non-condensing
    Storage Temperature -20-60°C | -4-149°F
    Storage Humidity 85% non-condensing
    Processor
    DVI-I DUAL LINK 1
    HDMI 1
    VGA 1
    CVBS IN 1
    CVBS OUT 1
    RS232 IN 1
    RS232 OUT 2
    ISP IN 1
    IR IN 1
    CODING BUTTON 1
    AC IN AC100-240V
    Color System Support PAL/NTSC/SECAM
    Control Type IR Remote &Software Control
    Menu Language English/Chinese(Multiple Language can be customized)

    Security video wall 3x3 16:9 samsung lcd monitors for Surveillance and Retail CenterSecurity video wall 3x3 16:9 samsung lcd monitors for Surveillance and Retail Center
