Max Signal Output RS232 Multi Screen Lcd Video Wall Controller 144ch DDW - P600A-D

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 ,CE , RoHS , FCC
Model Number: DDW-P600A-D
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Double layer carton pack
Delivery Time: 3working days upon payment
Payment Terms: T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability: 1000pcs/month
Detail Information
Videowall Controller Color Quality:: 32bit Dimension:: 4U,10U,15U W, D, H, Rack Mountable
Max PIP Per Screen:: 1,4,16,customization Control Method: RS232,IP
System Default:: 3.2Gbps Warranty:: 3Years
Standard Packing: Double Layer Carton Box Pack Weight: 5-100kg
High Light:

video display processor

,

videowall processor


Product Description

Max Signal output RS232 Multi screen lcd Video Wall controller 144ch DDW - P600A-D



video wall Scaler​ Introduction:



1, Multi-Input format switching support

VGA,DVI,CVBS, and SDI such as multi-input format support.

2, Looping Playback

It can be stored more than 100 sets of display mode.

Support looping playback and control switching via RS232 network or TCP/IP mode.

3, Operation System

Support Microsoft Windows , Linux , Sun , and Mac operation systems.

4, Power off memory function

When the system power outage then restoration again , it will return to the state before the power failure.

5,Plug & Play function

Pure external hardware design , free to install any software or drivers.

6, Input status identified

Operation software can be identified for each input and output interfaces , and can identify the input ports there a signal input.

7, PIP/POP Function

Support picture in picture (PIP) picture outside picture (POP) functions .

Single screen can be superimposed 4 contents on the screen. You can also size and position or cross the border at any other screen.

8,Partial Zooming Function

Support in a single screen zoom function. You can zoom view an image from any of the signal source in a particular area.

9, User friendly graphical user interface

Just use the mouse device , click on the video content which you want to play , then drag and drop the displayed size and position.

10, Multi-Input format switching support

VGA,DVI,CVBS, and SDI such as multi-input format support.



Product Description:

Lcd video wall controller can be widely used for:monitoring, directing, scheduling system, public security, fire, military, weather, rail, and aviation monitoring system, video conferencing, query systems.

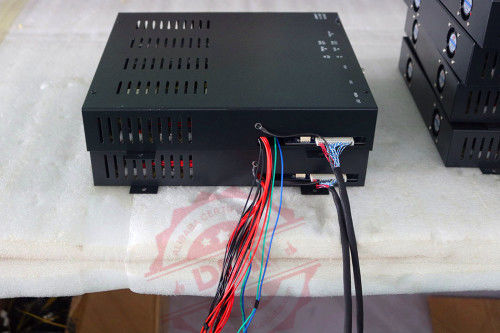

Max Signal Output RS232 Multi Screen Lcd Video Wall Controller 144ch DDW - P600A-D 0

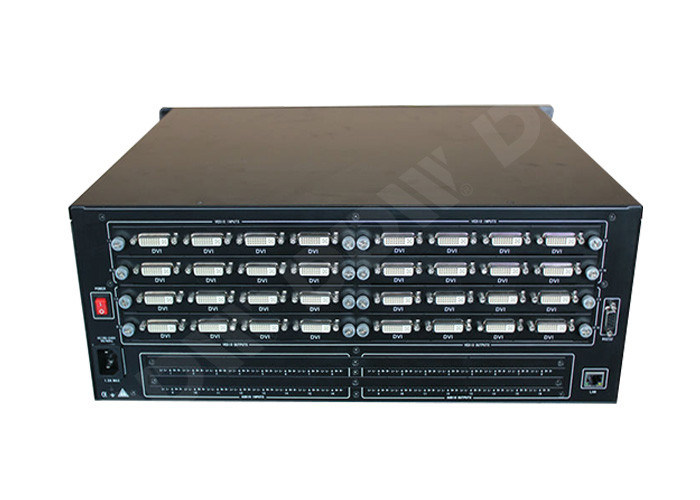

Max Signal Output RS232 Multi Screen Lcd Video Wall Controller 144ch DDW - P600A-D 1



Technical Specifications
Model series With CBD No CBD
Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) /DVI/VGA/AV/YPbPr
Input resolution 1024x768~1080p,commonly used resolutions
Output signal format DVI/VGA/AV/YPbPr/(DVI- converter)
Output resolution Up to 1920x1200/60HZ
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 4U/6U/10U/15U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365 x 7 x 24hrs
Technical specification of input/output connectors
VGA/RGB input Input: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640 x 480/60HZ—1920 x1200/60HZ
Input impedance :75Ω
Video input Input connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI output Resolution:1024 x 768/60HZ-1920 x 1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
Physical properties of input/output connectors
Signals Connectors Type
Composite VIDEO input BNC female
VGA input 15 pin HD D-Sub female
VGA output 15 pin HD D-Sub female
DVI output 24+5 or 24+1 standard female
AUX RS-232 9-pin D-Sub female
Main RS-232 9-pin D-Sub female
