Home > products > Control Room Video Wall > 55 inch a - Si TFT - LCD samsung video wall tv, thin bezel monitor high contrast DDW-LW550HN12

55 inch a - Si TFT - LCD samsung video wall tv, thin bezel monitor high contrast DDW-LW550HN12

Name: 55 inch a - Si TFT - LCD samsung video wall tv, thin bezel monitor high contrast DDW-LW550HN12
Brand: DDW
SKU: DDW-LW550HN12
Rating: 4.7 (168 reviews)

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW550HN12

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                control room displays, samsung commercial displays


Product Name:	Super Narrow Bezel Samsung Video Wall	Temperature Sensor:	Yes
Bezel Width:	3.5mm	Composite In:	Yes
Aspect Ratio:	16 : 9	PC Audio In:	Composite In
Backlight:	LED	Control Method:	RS232 Control
Output ( Rear ) - Digital:	Display Port ( 1 )	Output ( Rear ) - Audio:	Audio Out ( 1 )

Product Name:	Super Narrow Bezel Samsung Video Wall
Temperature Sensor:	Yes
Bezel Width:	3.5mm
Composite In:	Yes
Aspect Ratio:	16 : 9
PC Audio In:	Composite In
Backlight:	LED
Control Method:	RS232 Control
Output ( Rear ) - Digital:	Display Port ( 1 )
Output ( Rear ) - Audio:	Audio Out ( 1 )

Product Description

55 inch a - Si TFT - LCD samsung video wall tv, thin bezel monitor high contrast DDW-LW550HN12

Samsung video wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.

55" samsung video wall features:

Original Samsung Industrial grade LCD video wall screen, 16:9 Samsung a-Si TFT-LCD;
700nits brightness, 3500:1 contrast;
FHD physical resolution 1920x1080;
Only 3.5mm Ultra narrow bezel, high quality, practical, good vision effect;
Signal interface rich --- RS232, , DVI, VGA, YPbPr, AV;
HD video wall unit--- High brightness, high contrast, high gamut;
Flexible structure design ---easy installation, extensible, arbitrary combination;
Stable performance, suitable working for a long time;

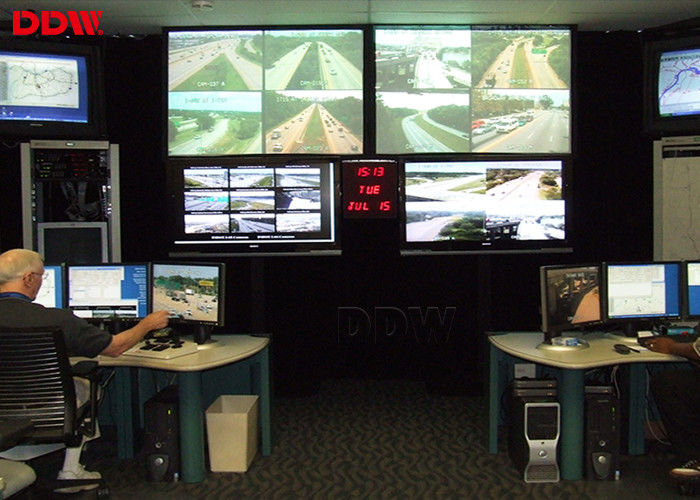

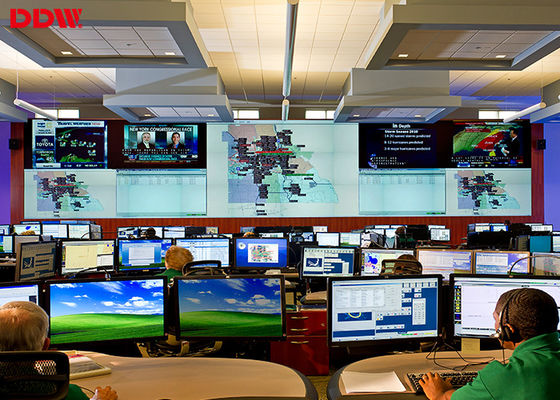

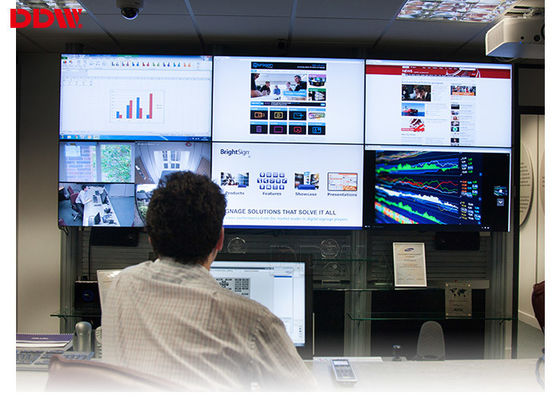

Application

DDW is one of leading manufacturer dedicated in R&D,manufacturing &selling commercial LCD displays especially LCD video wall systems for below fields: Conference and meeting rooms, office building, lobbies, Security Monitoring Center, Surveillance and Retail Center, Restaurant and hotel, Retail Shopping Mall Advertising and information Displays, Public Installations, Exhibition and show center, Live show,Rental and advertising Center,Museums,Church,Transportation and Mass Info Display systems.

Specifications

Model No.	DDW-LW550HN12
Panel Specifications
LCD Technology	Samsung a-Si TFT-LCD
Active Screen Diagonal	55"
Pixel Pitch(WxH)	0.630x0.630mm
Active Display Area(WxH)	1209.6x680.4mm
Panel Dimension(WxHxD)	1213.5x684.3x67.7mm
Total Bezel Width	3.5mm
Aspect Ratio	16 : 9
Physical Resolution	1920x1080
Backight System	WLED
Luminance(nits)	700cd/sqm
Contrast	3500:1 (typ.)
Viewing Angle	H 178°\|V 178°
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000 h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	<=250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor/Outdoor
Working Temperature	0°C~50°C
Working Humidity	85% non-condensing
Storage Temperature	-20-60°C \| -4-149°F
Storage Humidity	85% non-condensing
Processor
DVI-I DUAL LINK	1
	1
VGA	1
CVBS IN	1
CVBS OUT	1
RS232 IN	1
RS232 OUT	2
ISP IN	1
IR IN	1
CODING BUTTON	1
AC IN	AC100-240V
Color System Support	PAL/NTSC/SECAM
Control Type	IR Remote &Software Control
Menu Language	English/Chinese(Multiple Language can be customized)

55 inch a - Si TFT - LCD samsung video wall tv, thin bezel monitor high contrast DDW-LW550HN12 0
