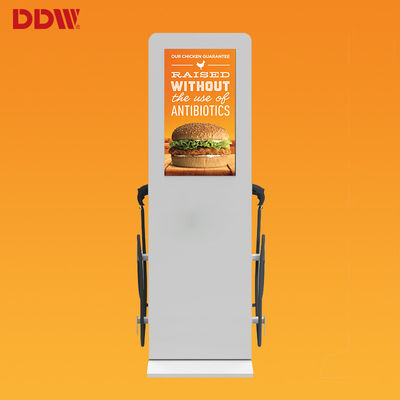

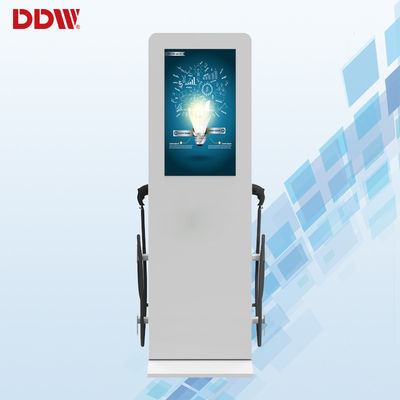

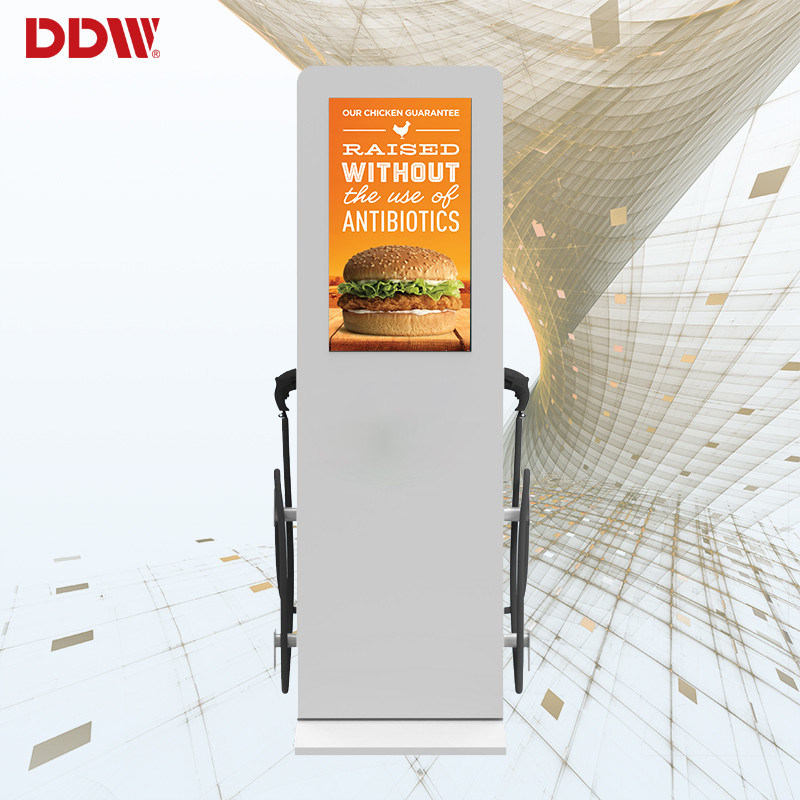

Free Standing Waterproof Digital Signage Lcd Display For Elcetric Car Charging DDW-AD4901S
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC , IP65 |
| Model Number: | DDW-AD4901S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton and Full wood box packing |
| Delivery Time: | 20-30working days upon payment |
| Payment Terms: | T/T , Western Union , L/C , Alibaba Trade Assurance |
| Supply Ability: | 300 set per month |
|
Detail Information |
|||
| Application: | Outdoor | Panel Brand: | Samsung LG |
|---|---|---|---|
| Storage Temperature: | -40℃ — 50℃ | Average Brightness: | 1500-2500cd/m*m |
| Maximum Resolution: | 1920x1080 | Maximum Power Consumption: | 3600W |
| Input Voltage: | AC 110V-240V | ||
| Highlight: | public charging stations,electric vehicle charging stations |
||
Product Description
Free Standing Waterproof Digital Signage Lcd Display For Elcetric Car Charging DDW-AD4901S
Main Application:
- Public Places:
- Entertainment Places:
- Toll Station
- Business Organizations:
- Public Service:
- Real Estate&Property:
- The Parking Lot
Charge module Introduction:
- Can control the charge operation situation through server
- Automatically insulation test, to protect human and Vehicle
- Can automatically identify the vehicle battery type, built in with BMS power source
- Overload protection and short-circute protection,
- Charging screen can set charge time, charge type (automatically charge full then power off or charge by quantity of electricity)
- Multiple charge interfaces: European standard, USA standard
- External access is available for Ethernet, GPRS, WIFI, Bluetooth and other communication interface, and monitoring center, operation and management center real-time communication, real-time monitoring of charging status.
The mutimedia advetising player Features:
1 . 21.5" to 75" high brightness LCD Module , 1500nits brightness , 1920x1080 resolution , 4000:1 contrast with LED backlight , Sunlight viewable
2 . Patented LED backlight modular components + constant current source drive components
3 . Patented cooling structure combination of high-quality fan assembly
4 . Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support VGA input,3G(optional)
5 . Automatic ambient light adjustment control (extended life and energy efficiency)
6 . Built-in power adapter combination AC 220V/DC
7 . IP65 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system
8 . Highly fortified AR glass , protect the LCD screen from direct injury , played the role of anti-riot
9 . Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent
10 . A/C automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring,real-time detection equipment vibration , temperature and humidity parameters such as power supply , timely warning , Working temperature: -40℃ - 50℃
11 . Frame(fit with single side screen) can be customized exactly same as client provided
2 . Patented LED backlight modular components + constant current source drive components
3 . Patented cooling structure combination of high-quality fan assembly
4 . Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support VGA input,3G(optional)
5 . Automatic ambient light adjustment control (extended life and energy efficiency)
6 . Built-in power adapter combination AC 220V/DC
7 . IP65 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system
8 . Highly fortified AR glass , protect the LCD screen from direct injury , played the role of anti-riot
9 . Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent
10 . A/C automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring,real-time detection equipment vibration , temperature and humidity parameters such as power supply , timely warning , Working temperature: -40℃ - 50℃
11 . Frame(fit with single side screen) can be customized exactly same as client provided
Outdoor Charge Pile digital signage Parameters
|
LCD parameters
|
Panel size
|
21.5" to 75"
|
|
Aspect Ratio
|
16:9
|
|
|
Maximum resolution
|
1920x1080
|
|
|
Display color
|
1.073G(10bits/color)
|
|
|
Life(hrs)
|
>60,000(hrs)
|
|
|
average brightness
|
1500-2500cd/m*m, built in light sensor
|
|
|
contrast
|
4000:1
|
|
|
Viewing angle
|
H178°/V178°
|
|
|
Power supply
|
AC100~240V 50 /60 HZ
|
|
|
Maximum power consumption
|
3600W
|
|
|
Standby power consumption
|
<5W
|
|
|
Working temperature
|
0－ 40 ℃
|
|
|
Storage temperature
|
-40℃ — 50℃
|
|
|
Installation
|
flood-standing, wall mounted or customized
|
|
|
IP65 waterproof case
|
Using 1.5mm galvanized steel
|
|
|
Surface spray powder (anti-corrosion, anti-rust)
|
||
|
Outdoor anticorrosive over 7 years
|
||
|
AR anti-reflective glass 3 + 3mm plastic folder
|
||
|
AR glass
|
Light transmittance 97%
|
|
|
Reflectivity is less than 3%
|
||
|
Explosion-proof, waterproof, fireproof
|
||
|
UV protection 99%
|
||
|
Display screen
|
Industrial-grade LED, Original Samsung screen,brightness 2000cd / m2
|
|
|
High brightness 1500-2000 cd/㎡
|
||
|
Full hd 1920 x1080
|
||
|
automatically adjust the brightness
|
||
|
Cooling system
|
Intelligent heating and air-cooling system
|
|
|
meet the environment of -20℃ — 55 ℃
|
||
|
LCD display is not blackening
|
||
|
Patented cooling system ensures that the LCD screen without blackening in direct sunlight
|
||
|
Product assembly and aging test
|
IP65 waterproof test
|
|
|
High and low temperature test
|
||
|
Simulated solar radiation test
|
||
|
Aging test
|
||
|
Packaging
|
Wooden packaging , sea/air/express(transportation standards)
|
|
