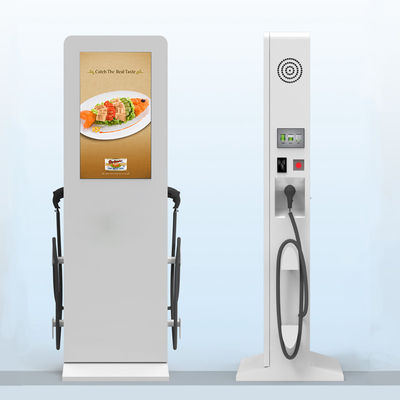

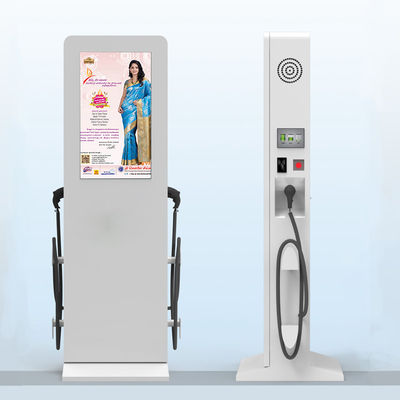

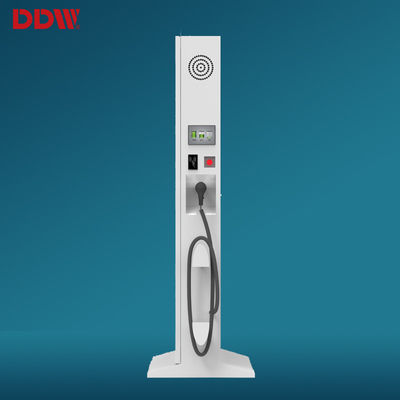

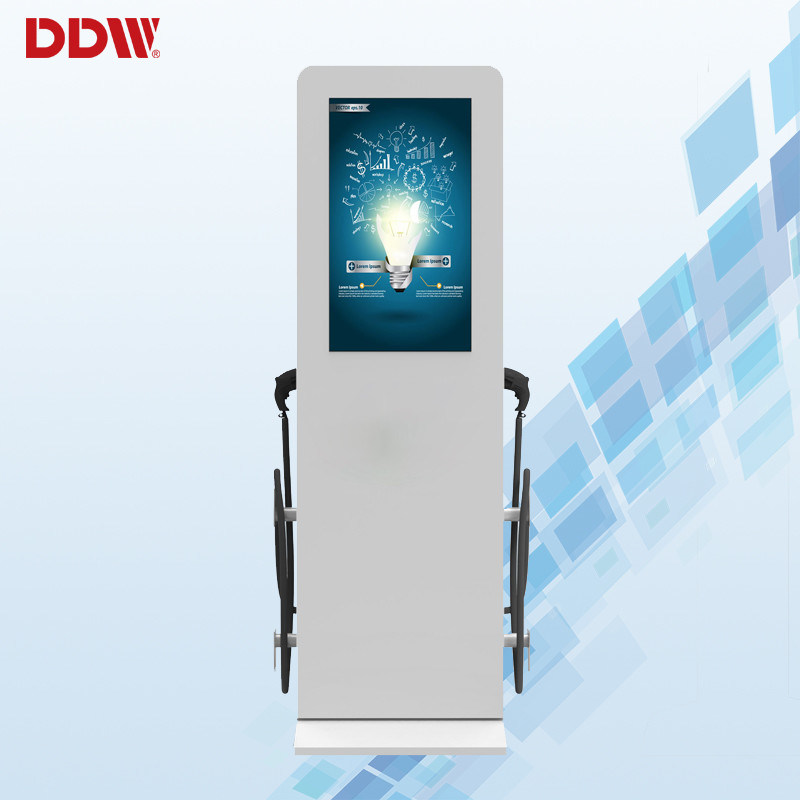

AC 110V-240V Charge Pile Digital Signage Floor Standing 55 Inch 2500 Nits 1920x1080

AC 110V-240V Charge Pile Digital Signage Floor Standing 55 Inch 2500 Nits 1920x1080

    • AC 110V-240V Charge Pile Digital Signage Floor Standing 55 Inch 2500 Nits 1920x1080
    • AC 110V-240V Charge Pile Digital Signage Floor Standing 55 Inch 2500 Nits 1920x1080
    • AC 110V-240V Charge Pile Digital Signage Floor Standing 55 Inch 2500 Nits 1920x1080
    • AC 110V-240V Charge Pile Digital Signage Floor Standing 55 Inch 2500 Nits 1920x1080
  • AC 110V-240V Charge Pile Digital Signage Floor Standing 55 Inch 2500 Nits 1920x1080

    Product Details:

    Place of Origin: Guangdong , China (Mainland)
    Brand Name: DDW
    Certification: ISO9001 , CE , RoHS , FCC , IP65
    Model Number: DDW-ADO5501SN

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD 800
    Packaging Details: Carton and Full wood box packing
    Delivery Time: 20-30working days upon payment
    Payment Terms: T/T , Western Union , L/C , Alibaba Trade Assurance
    Supply Ability: 300 set per month
    Contact Now
    Detailed Product Description
    Application: Outdoor Panel Brand: Samsung LG
    Storage Temperature: -40℃ — 50℃ Average Brightness: 1500-2500cd/m*m
    Maximum Resolution: 1920x1080 Maximum Power Consumption: 3600W
    Input Voltage: AC 110V-240V

    55 Inch Charge Pile Digital Signage floor standing golden blacklight loudspeaker
    -40℃-50℃ 1920x1080 2500nits




    Outdoor digital signage adapt 100% full new brand A+ LG, Samsung LCD panel, widely used for otuside shopping mall, street,bus station,gas station,outdoor dadvertising area,high way rest station and more publics. It integrated with auto cooling function when outside temperature rasied, also heating module provide heating when start in froozen condition.

    Main Application:

    • Public Places:
    • Entertainment Places:
    • Toll Station
    • Business Organizations:
    • Public Service:
    • Real Estate&Property:
    • The Parking Lot

    55 inch charge Pile digital signage functions:

    1.This product can be composed of human-computer interactive touch screen, 55-inch LCD screen, RF reader, energy measurement module, communication module, charging interface, control module and pile composition.


    2.Charging pile with multiple protection function, input and output with double safety protection measures, charging real-time monitoring of the connection of the charging cable status, connection abnormalities immediately terminate the charge to ensure that the charging process is safe for people and vehicles.


    3.User interface and display can be used to control the functions, so that customers can easily complete the charging process.

    4.external access is available for Ethernet, GPRS, WIFI, Bluetooth and other communication interface, and monitoring center, operation and management center real-time communication, real-time monitoring of charging status.



    Charge Pile digital signage key features:


    1 . 55 inch high brightness LCD Module , 1500nits brightness , 1920x1080 resolution , 4000:1 contrast with LED backlight , Sunlight viewable
    2 . Patented LED backlight modular components + constant current source drive components
    3 . Patented cooling structure combination of high-quality fan assembly
    4 . Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support HDMI VGA input,3G(optional)
    5 . Automatic ambient light adjustment control (extended life and energy efficiency)
    6 . Built-in power adapter combination AC 220V/DC
    7 . IP65 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system
    8 . Highly fortified AR glass , protect the LCD screen from direct injury , played the role of anti-riot
    9 . Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent
    10 . A/C automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring,real-time detection equipment vibration , temperature and humidity parameters such as power supply , timely warning , Working temperature: -40℃ - 50℃
    11 . Frame(fit with single side screen) can be customized exactly same as client provided



    Outdoor Charge Pile digital signage Parameters
    LCD parameters Model No. DDW-AD5501SNOC
    display 55" LED
    Contrast Ratio 16:9
    machine size 1130*684*55
    Display area 1040x585
    Maximum resolution 1920x1080
    Pixel Pitch(mm) 0.1805×0.5415 mm
    Display color 1.073G(10bits/color)
    Life(hrs) >60,000(hrs)
    average brightness 1500-2500cd/m*m
    contrast 4000:1
    Viewing angle H178°/V178°
    Power supply AC100~240V 50 /60 HZ
    Maximum power consumption 3600W
    Standby power consumption <5W
    Working temperature 0- 40 ℃
    Storage temperature -40℃ — 50℃
    Installation flood-standing, wall mounted or customized
    IP65 waterproof case Using 1.5mm galvanized steel
    Surface spray powder (anti-corrosion, anti-rust)
    Outdoor anticorrosive over 7 years
    AR anti-reflective glass 3 + 3mm plastic folder
    Display screen glass Light transmittance 97%
    Reflectivity is less than 3%
    Explosion-proof, waterproof, fireproof
    UV protection 99%
    Display screen Industrial-grade LED, Original Samsung screen,brightness 2000cd / m2
    High brightness 1500-2000 cd/㎡
    Full hd 1920 x1080
    Industrial power supply
    automatically adjust the brightness
    Electronic control system Power supplies , timers , remote control panel , photographic plate , speaker , battery , leakage protection switches , sockets , etc.
    Cooling system Intelligent heating and air-cooling system
    meet the environment of -20℃ — 55 ℃
    LCD display is not blackening
    Patented cooling system ensures that the LCD screen without blackening in direct sunlight
    Product assembly and aging test IP65 waterproof test
    High and low temperature test
    Simulated solar radiation test
    Aging test
    Packaging Wooden packaging , sea/air/express(transportation standards)





    Production description
    AC 110V-240V Charge Pile Digital Signage Floor Standing 55 Inch 2500 Nits 1920x1080AC 110V-240V Charge Pile Digital Signage Floor Standing 55 Inch 2500 Nits 1920x1080AC 110V-240V Charge Pile Digital Signage Floor Standing 55 Inch 2500 Nits 1920x1080AC 110V-240V Charge Pile Digital Signage Floor Standing 55 Inch 2500 Nits 1920x1080AC 110V-240V Charge Pile Digital Signage Floor Standing 55 Inch 2500 Nits 1920x1080AC 110V-240V Charge Pile Digital Signage Floor Standing 55 Inch 2500 Nits 1920x1080AC 110V-240V Charge Pile Digital Signage Floor Standing 55 Inch 2500 Nits 1920x1080AC 110V-240V Charge Pile Digital Signage Floor Standing 55 Inch 2500 Nits 1920x1080AC 110V-240V Charge Pile Digital Signage Floor Standing 55 Inch 2500 Nits 1920x1080
