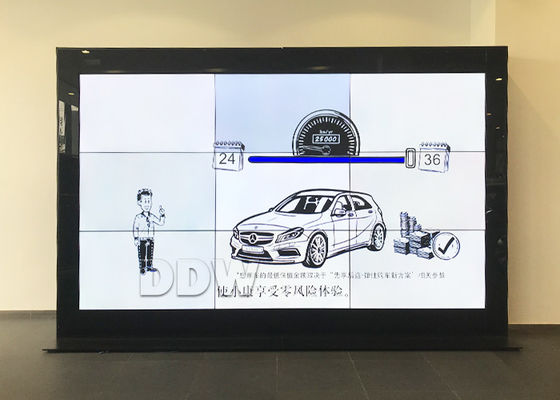

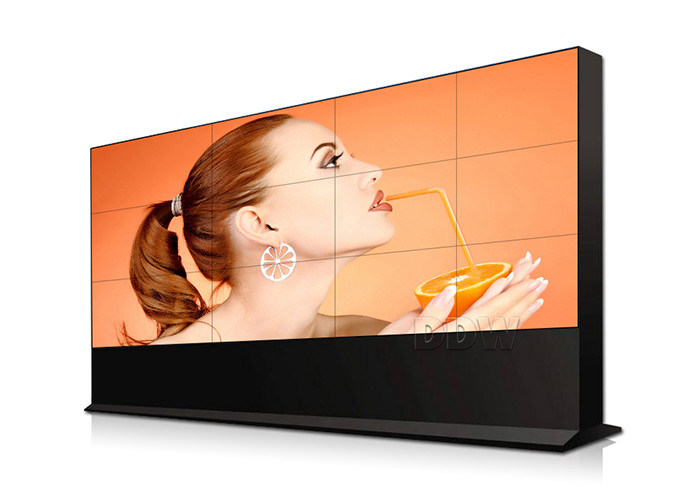

DP Loop Out 46 Multi Display Video Wall , Indoor HD 3.5mm Broadcast Video Wall

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-DV46FHM-NV0
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: L/C , L/C , T/T
Supply Ability: 3 , 000pcs per month
Detail Information
Product Name: CCTV Video Wall Panel Size: 46 Inch
Max Resolution: 1920x1080 Contrast Ratio: 4000:1
Brightness: 500nits Total Physical Bezel: 3.5 Mm
Contrast: MEGA DCR Display Colors: 8Bit,16.7M
High Light:

conference room video wall

,

control room displays


Product Description

46" CCTV Video Wall HD Physical Resolution 1920*1080 DDW-DV46FHM-NV0 3.5mm





CCTV Video Wall ​Quick Details

Input Voltage: AC 110-240V

Brightness: 500nits

Total bezel width: 3.5 mm

Resolution: 1920*1080

Contrast: 4000:1

Surface: anti-glare

Video wall monitor power consummtion:250W

Application condition: indoor and semi-outdoor





46" high brightness CCTV Video Wall features:

1, Original DDW Industrial grade LCD video wall panel

2, LED backlight 500nits high brightness

3, HD physical resolution 1920*1080

4, Only 3.5 mm ultra narrow bezel.high quality ,practical ,good vision effect.

5, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

6, FHD video wall unit--- High brightness,high contrast,high gamut .

7, Flexible structure design ---easy installation ,extensible,arbitrary combination

8, Stable performance,suitable working for a long time



CCTV Video Wall ​Applications

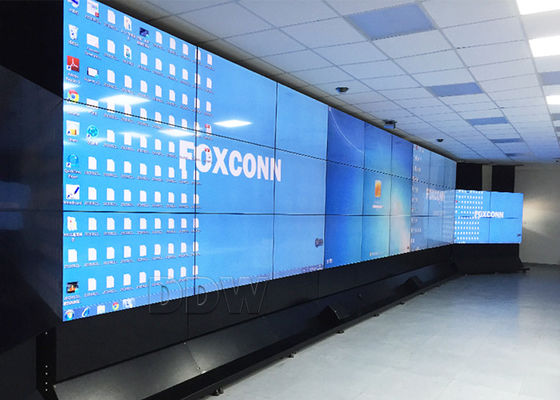

This 46 inch 3.5mm narrow bezel video wall is the best cost-effective model , which can be widely used for cctv control room conference and meeting rooms , gym center , lobbies , security monitoring center , surveillance and retail center , restaurant and hotel , retail shopping mall advertising and information displays , public installations , exhibition and show center , live show , rental and advertising center , museums , church , transportation and mass info display systems.



CCTV Video Wall ​Panel Specifications

LCD Technology SAMSUNG DID LCD
Active Screen Diagonal 46" 16:9
Bezel Width Total: 3.5mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH)

0.53025×0.53025 mm

Active Display Area(WxH)

1018.08×572.67 mm

Panel Dimension(WxHxD)

1213.5x684.3x59 mm

White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing



CCTV Video Wall ​Board Specifications

Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)



Packaging & Delivery

Packaging Details: quality carton with full wood box packing

Delivery Detail: 3 working days
