Home > products > LCD Video Wall > 49" 4K video wall media player 3840 x 2160 lcd screen display for Museums Transportation DDW-LW490DUN-TJB1

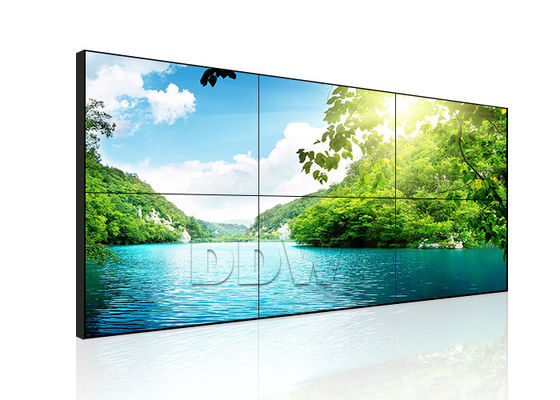

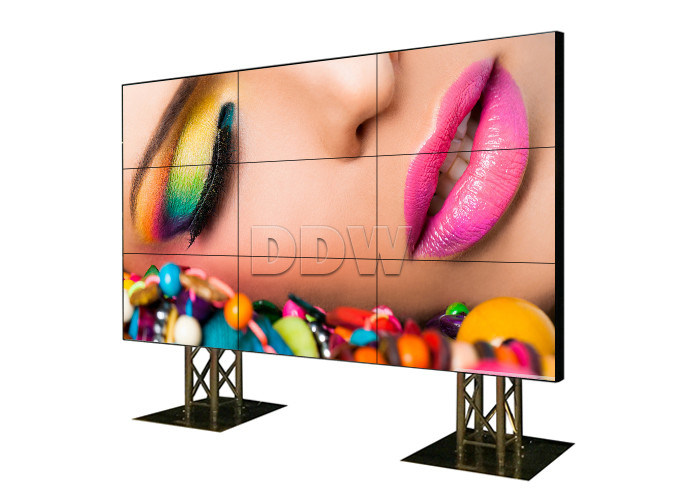

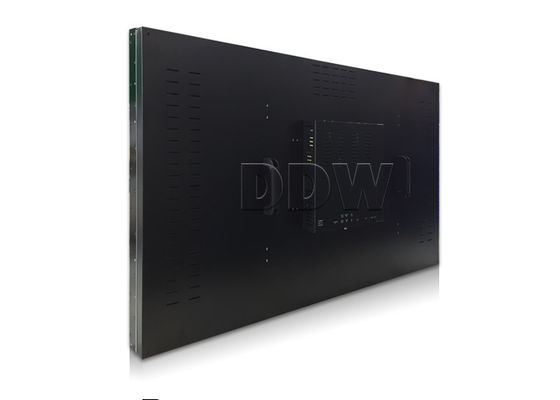

49" 4K video wall media player 3840 x 2160 lcd screen display for Museums Transportation DDW-LW490DUN-TJB1

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: LW490DUN-TJB1

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price
Product Details
Highlight:

video display walls

,

narrow bezel video wall

Product Name:
Innolux Ultra Thin Bezel LCD Video Wall
Resolution:
3840 X 2160
Bezel Width:
1.8mm
Viewing Angle:
178 X 178
Brightness:
500nits
Surface:
Anti-glare
Backlight:
WLED
Control Method:
RS232 Control
Response Time:
5ms
Panel Voltage:
12 V
Signal Interface:
V - By - One 8 Lane , 51 Pins
Working Time Capacity:
7x24hours
Product Name:
Innolux Ultra Thin Bezel LCD Video Wall
Resolution:
3840 X 2160
Bezel Width:
1.8mm
Viewing Angle:
178 X 178
Brightness:
500nits
Surface:
Anti-glare
Backlight:
WLED
Control Method:
RS232 Control
Response Time:
5ms
Panel Voltage:
12 V
Signal Interface:
V - By - One 8 Lane , 51 Pins
Working Time Capacity:
7x24hours
Product Description



49" 4K video wall media player 3840 x 2160 lcd screen display for Museums Transportation DDW-LW490DUN-TJB1




Key features

  • Signal interface rich --- RS232, , DVI, VGA, YPbPr, AV;
  • HD video wall unit--- High brightness, high contrast, high gamut;
  • Flexible structure design ---easy installation, extensible, arbitrary combination;
  • Stable performance, suitable working for a long time;
  • Original Innolux commercial grade lcd video wall panel, 16:9 Innolux a-Si TFT-LCD;
  • 500nits brightness, 5000:1 contrast;
  • HD physical resolution 3840 x 2160;
  • Only 1.8mm Ultra narrow bezel.high quality , practical, good vision effect;



Service
Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.


DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.





49" 4K video wall media player 3840 x 2160 lcd screen display for Museums Transportation DDW-LW490DUN-TJB1 0


Specifications

Model No: DDW-LW490DUN-TJB1
LCD Technology INNOLUX a-Si TFT-LCD
Active Screen Diagonal 49"
Total Bezel Width 1.8mm
Aspect Ratio 16:9
Physical Resolution 3840x2160
Backight System LED
Luminance(nits) 500cd/㎡
Contrast 5000:1
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH) 0.5593x0.5593mm
Active Display Area(WxH) 1073.8 × 604 mm
Panel Dimension(WxHxD) 1075.38x605.8x53.6mm
White Point 10,000 K
Display Colors 1.07GB colors
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption ≦160W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0℃~50℃
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
Inputs, Outputs &Features
DVI-I DUAL LINK 1
  1
VGA 1
CVBS IN 1
CVBS OUT 1
RS232 IN 1
RS232 OUT 1
ISP IN 1
IR IN 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display Support
Combine Display Support combine any horizental &vertical numbers of screens and show display
Support combine all screens together to show 1image
Solid Display Support each screen input with separate signal
PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
Multiple Interfaces Support DVI,,VGA,AV &multiple signal inputs
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs

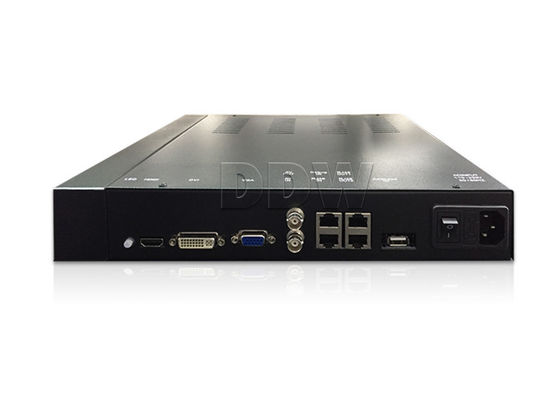

Various video wall control board options
