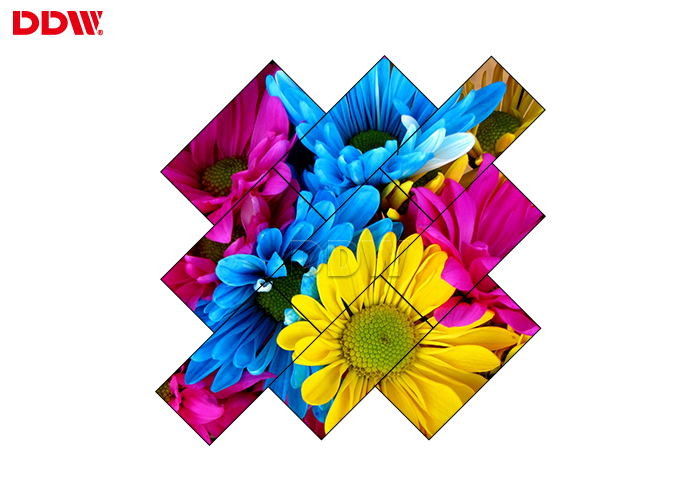

Ultra High Definition Irregular Video Wall With Distribution Box Connected

Name: Ultra High Definition Irregular Video Wall With Distribution Box Connected
Brand: SHENZHEN DDW TECHNOLOGY CO.,LTD
SKU: DDW-LW550HN16
Availability: InStock

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW550HN16

Payment & Shipping Terms

Minimum Order Quantity: negotiation

Price: Negotiation

Packaging Details: Quality carton with full wood box packing

Delivery Time: 3 working days upon payment

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                art video wall, artistic video wall


Name:	Irregular Video Wall	Feature:	Ultra High Definition
Application:	Advertisong	Processor:	Hdmi Video Wall Processor
Contrast Ratio:	4000:1	Brightness:	350-700 Nits
Connected:	Distribution Box Connected

Name:	Irregular Video Wall
Feature:	Ultra High Definition
Application:	Advertisong
Processor:	Hdmi Video Wall Processor
Contrast Ratio:	4000:1
Brightness:	350-700 Nits
Connected:	Distribution Box Connected

Product Description

Ultra High Definition Irregular Video Wall With Distribution Box Connected

Irregular Video Wall Description

♦ Excellent super narrow bezel design with just 3.5 mm bezel width between screens

♦ Built-in 3D noise reduction, making the image clean and outline more vivid

♦ HD display 1920x1080

♦ LED backlit technology brings you perfect visual effect

♦ 4K input supported (Option)

Irregular Video Wall Parameters:

Name	Ultra High Definition Irregular Video Wall With Distribution Box Connected
Item No.	Components	Descriptions
1	55" Samsung 1.7mm bezel	500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P HDMI input
2	System controller	1 in 16output HDMI splitter
3	Bracket	POP out bracket for 55" lcd video wall
Panel Specifications
LCD Technology			Original Samsung DID LCD
Active Screen Diagonal			55"
Panel Dimension(WxH)			1211.6*682.4mm
Total Bezel Width			1.7mm
Aspect Ratio			16:9
Physical Resolution			1920*1080
Backlight System			WLED
Luminance(nits)			500cd/m2
Contrast			1500:1 (typ.)
Viewing Angle			H 178°\|V 178°
Display Colors			8Bit,16.7M
Refresh Rate			60Hz
Response Time			<=6ms
Life(hrs)			>60,000(hrs)
MTBF			> 100,000 h
Surface			Anti-glare
Standby Power Consumption			<3W
Maximum Power Consumption			<=260W
Power Supply			AC100~240V 50/60 HZ
Cooling			Low noise fans
Working Time Capacity			7x24x365hours
Working Temperature			0℃~50℃
Working Humidity			0.85
Storage Temperature			-20-60°C \| -4-140°F
Storage Humidity			85% non-condensing
Net Weight			26kg/unit
1080P HDMI input daisy chain board Signal Inputs, Outputs
DVI-I DUAL LINK			1
HDMI input 2K			1
VGA input			1
RS232 IN			1
RS232 OUT			2
IR IN			1
AC IN			AC100-240V
Color System Support			PAL/NTSC/SECAM
Control Type			IR Remote &Software Control
Menu Language			English
Vertical/Horizontal Display			Support
