Product Details
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW550DUN-THB5
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: L/C , L/C , T/T
Supply Ability: 3 , 000pcs per month
Product Name: |
CCTV Video Wall |
Daisy Chain: |
RJ45 Loop |
Control Method: |
RS232 Control |
Total Physical Bezel: |
1.8 Mm |
Resolution: |
1920*1080 |
Backlit Type: |
LED |
Panel Width: |
1211.4mm |
Panel Height: |
682.2mm |
Product Name: |
CCTV Video Wall |
Daisy Chain: |
RJ45 Loop |
Control Method: |
RS232 Control |
Total Physical Bezel: |
1.8 Mm |
Resolution: |
1920*1080 |
Backlit Type: |
LED |
Panel Width: |
1211.4mm |
Panel Height: |
682.2mm |

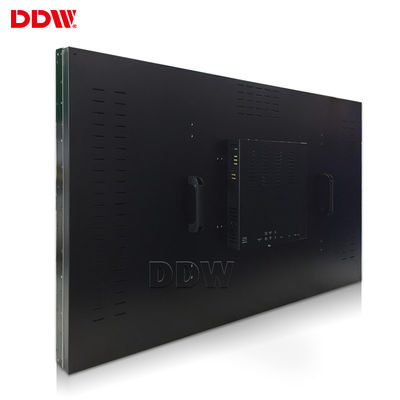

LW550DUN-THB5 CCTV Video Wall 500nits Brightness for Security Monitoring Center

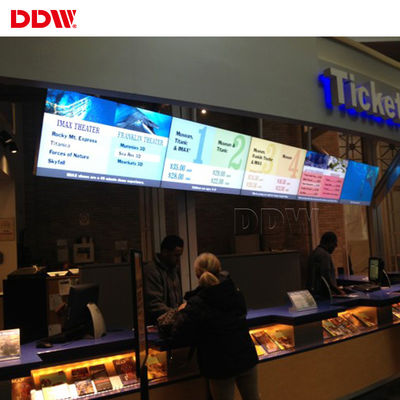

CCTV Video Wall Application
Interactive Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
CCTV Video Wall basic informations:
CCTV Video Wall Functions:
CCTV Video Wall Specifications
Active Screen Diagonal | 55" |
Panel Dimension(WxHxD) |
1211.4x682.2x53.3mm |
Total Bezel Width | 1.8 mm |
Aspect Ratio | 16:9 |
Physical Resolution | 1920x1080 |
Backlight System | LED |
Luminance(nits) |
500cd/sqm |
Contrast | 5000:1 (typ.) |
Viewing Angle | H 178°|V 178° |
Display Colors | 8Bit,16.7M |
Refresh Rate | 60Hz |
Response Time | <=6ms |
Life(hrs) | >60,000(hrs) |
MTBF | > 100,000h |
Surface | Anti-glare |
Standby Power Consumption | <3W |
Maximum Power Consumption | <=250W |
Power Supply | AC100~240V 50/60 HZ |
Cooling | Low noise fans |
Heat Dissipation | 819 BTU/h (max) |
Working Time Capacity | 7x24x365hours |
Application Area | Indoor/Semi Outdoor/Outdoor |
Working Temperature | 0°C~50°C |
Working Humidity | 85% non-condensing |
Storage Temperature | -20-60°C | -4-149°F |
Storage Humidity | 85% non-condensing |
CCTV Video Wall Board Specifications
Support | PC | Color | 24bit |
Signal | Line synchronization range | 30-80KHZ | |
Field synchronization range | 50-75HZ | ||
DVI HDMI DP |
Color | 24bit | |
Line synchronization range | 30-80KHZ | ||
Field synchronization range | 50-75HZ | ||
Interface | Input | VGA x 1 | 15pin D-Sub |
DVI x 1 | DVI-I | ||
DP x 1 | Display Port | ||
HDMI x 2 | HDMI-19 pin | ||
Output | PANEL | LVDS 36Pin/2.0 | |
DP out | DP loop out | ||
Power | Input power | DC24V/12V/5V | |
Drive panel | 5V/12V | ||
Power mode | Normal working mode, power saving mode | ||
Other | OSD | Chinese, English and other languages (other languages can be added as required) |
