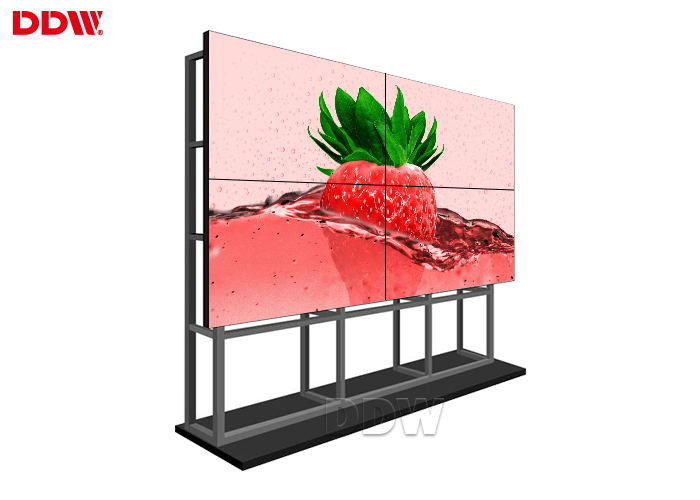

HD Splitter 3840x2160 250W 3x3 Video Wall Lcd Monitors

HD Splitter 3840x2160 250W 3x3 Video Wall Lcd Monitors

    • HD Splitter 3840x2160 250W 3x3 Video Wall Lcd Monitors
    • HD Splitter 3840x2160 250W 3x3 Video Wall Lcd Monitors
  • HD Splitter 3840x2160 250W 3x3 Video Wall Lcd Monitors

    Product Details:

    Place of Origin: China
    Brand Name: DDW
    Certification: CE/CCC/FCC/ROHS/ISO9001
    Model Number: DDW-LW550HN16

    Payment & Shipping Terms:

    Minimum Order Quantity: >=1
    Price: USD$450-USD$650
    Packaging Details: carton box and wooden box
    Delivery Time: 3-5 working days
    Payment Terms: T/T
    Supply Ability: 1000PCS/Month
    Contact Now
    Detailed Product Description
    Installation: Wall Mountable/floor Standing OS: Androrid/Windows7/8/10(optional)
    Resolution: 3840x2160 Panel Brand: SAMSUNG LG
    Network: WIFI/LAN/3G/4G Optional OSD Language: Multi-language Support
    LOGO: Customerize Keyword: Video Wall Display
    High Light:

    250W Video Wall Lcd Monitors

    ,

    3x3 Video Wall Lcd Monitors

    ,

    3840x2160 Lcd Video Display

    Specifications

    Model No: DDW-LW460HN11
    LCD Technology INNOLUX a-Si TFT-LCD
    Active Screen Diagonal 46"
    Total Bezel Width 3.5mm
    Aspect Ratio 16:9
    Physical Resolution 3840x2160
    Backight System WLED
    Luminance(nits) 500cd/sqm
    Contrast MEGA DCR
    Viewing Angle H 178°|V 178°
    Pixel Pitch(WxH) 0.5302x0.5302mm
    Active Display Area(WxH) 1018.08×572.67mm
    Panel Dimension(WxHxD) 1021.98x576.57x72.1mm
    White Point 10,000 K
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000 h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption lower than 250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 0.85
    Storage Temperature -20-60°C | -4-140°F
    Storage Humidity 85% non-condensing
    1
    VGA 1
    CVBS IN 1
    CVBS OUT 1
    RS232 IN 1
    RS232 OUT 1
    ISP IN 1
    IR IN 1
    CODING BUTTON 1
    AC IN AC100-240V
    Color System Support PAL/NTSC/SECAM
    Control Type IR Remote &Software Control
    Menu Language English/Chinese(Multiple Language can be customized)
    Vertical/Horizontal Display Support
    Combine Display Support combine any horizontal &vertical numbers of screens and show display
      Support combine all screens together to show 1image
    Solid Display Support each screen input with separate signal
    PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
    Multiple Interfaces Support DVI,,VGA,AV &multiple signal inputs
    Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs

    Super Thin Bezel 4K Multi Screen Display Wall 3x3 Support DVI  VGA AV YPBPR Signals

    Super Thin Bezel 4K Multi Screen Display Wall 3x3 Support DVI  VGA AV YPBPR Signals
