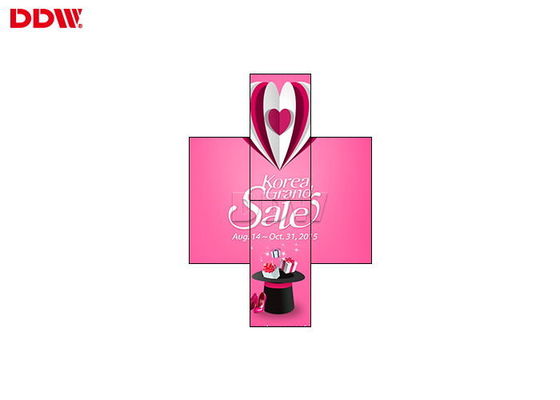

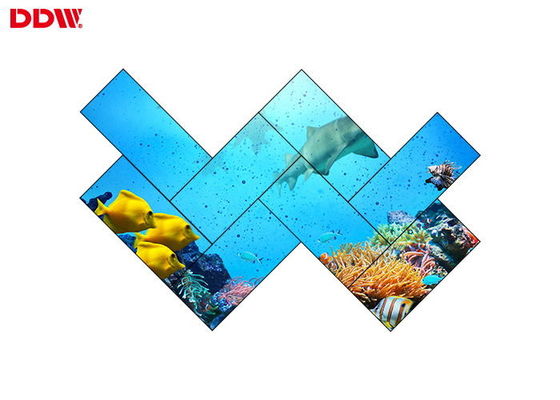

3.5mm Bezel 55" 1080P 500 Nits Irregular Lcd Video Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | DDW |
| Certification: | CE/CCC/FCC/ROHS/ISO9001 |
| Model Number: | DDW-LW550HN11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 |
|---|---|
| Price: | USD$450-USD$650 |
| Packaging Details: | carton box and wooden box |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Installation: | Wall Mountable/floor Standing | OS: | Androrid/Windows7/8/10(optional) |
|---|---|---|---|
| Total Bezel Gap: | 3.5mm Bezel Panel Brand DID LG | Network: | WIFI/LAN/3G/4G Optional |
| Lcd Video Wall Panel Brightness: | 500nits Support | Lcd Video Wall Contrast: | 4000:1 |
| Keyword: | Irregular Lcd Video Wall | 47 Lcd Video Wall Surface: | Anti-glare |
| Splicing Lcd Video Wall Application: | Indoor And Semi-outdoor | Video Wall Display Power Consummtion: | 230W |
| Lcd Video Wall Signal Support: | DVI//VGA/AV/YPBPR | ||
| Highlight: | 500 Nits Lcd Video Wall,Irregular Lcd Video Wall,3.5mm Bezel Lcd Video Monitor |
||
Product Description
Product Pecification
| Item No. | Components | Descriptions | |
| 1 | 55" Samsung 3.5mm bezel | 500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P input | |
| 2 | System controller | 1 in 16output splitter | |
| 3 | Bracket | POP out bracket for 46" lcd video wall | |
| 4 | Standard Accessories | English Manual,IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector | |
| 5 | Packing | 4/5 screens in 1 wooden case | |
| Panel Specifications | |||
| LCD Technology | Original Samsung DID LCD | ||
| Active Screen Diagonal | 55" | ||
| Panel Dimension(WxH) | 1213.5*684.3mm | ||
| Total Bezel Width | 3.5mm | ||
| Aspect Ratio | 16:9 | ||
| Physical Resolution | 1920*1080 | ||
| Backlight System | WLED | ||
| Luminance(nits) | 500cd/2 | ||
| Contrast | 1500:1 (typ.) | ||
| Viewing Angle | H 178°|V 178° | ||
| Display Colors | 8Bit,16.7M | ||
| Refresh Rate | 60Hz | ||
| Response Time | <=6ms | ||
| Life(hrs) | >60,000(hrs) | ||
| MTBF | > 100,000 h | ||
| Surface | Anti-glare | ||
| Standby Power Consumption | <3W | ||
| Maximum Power Consumption | <=260W | ||
| Power Supply | AC100~240V 50/60 HZ | ||
| Cooling | Low noise fans | ||
| Working Time Capacity | 7x24x365hours | ||
| Working Temperature | 0℃~50℃ | ||
| Working Humidity | 0.85 | ||
| Storage Temperature | -20-60°C | -4-140°F | ||
| Storage Humidity | 85% non-condensing | ||
| Net Weight | 26kg/unit | ||
| 1080P input daisy chain board Signal Inputs, Outputs | |||
| DVI-I DUAL LINK | 1 | ||
| input 2K | 1 | ||
| VGA input | 1 | ||
| RS232 IN | 1 | ||
| RS232 OUT | 2 | ||
| IR IN | 1 | ||
| AC IN | AC100-240V | ||
| Color System Support | PAL/NTSC/SECAM | ||
| Control Type | IR Remote &Software Control | ||
| Menu Language | English | ||
| Vertical/Horizontal Display | Support | ||
