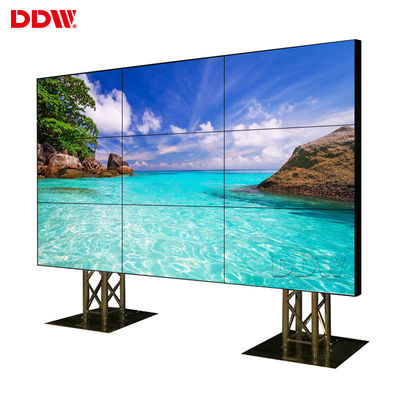

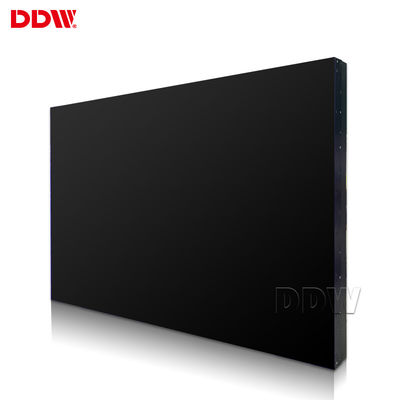

LW460HN09 5.3mm DDW LCD Video Wall 1920x1080 500 nits W1023.98mm H578.57mm
46" DDW lcd video wall features:
1, Original DDW Industrial grade Samsung lcd video wall solution screen ,16:9 LG a-Si TFT-LCD
2, 500nits brightness,4000:1 contrast
3, HD physical resolution 1920x1080
4, Only 5.3mm Ultra narrow bezel.high quality ,Practical ,good vision effect.
5, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6, HD lcd video wall unit--- High brightness,high contrast,High gamut .
7, Flexible structure design ---easy installation ,extensible,arbitrary combination
8, Stable performance,suitable working for a long time
46" DDW lcd video wall is one of the most popular Lcd video wall panels which has 5.3mm ultra narrow bezel,FHD1920x1080 resolution,and 500nits brightness,it's one of first Samsung general videowall panels in the world.
DDW LCD video wall basic informations:
- With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
- Adapting modular components, making maintenance operations and parts replacement very easily;
- The installation method: floor standing;
- Dot Pitch: 0.53mm(H)*0.53mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
- Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
- 7x24x365 keep working;

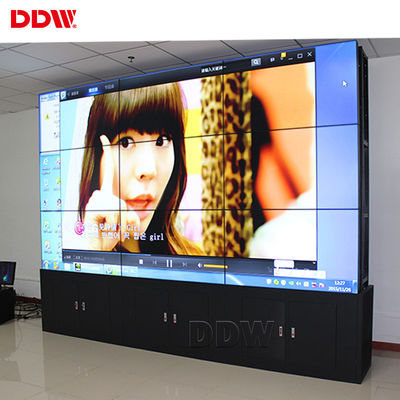

Application
Samsung lcd videowall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show,rental and advertising center,museums,church,transportation and mass info display systems.
Specifications
| Samsung video wall Panel Specifications |
| LCD Technology |
SAMSUNG DID LCD |
| Active Screen Diagonal |
46" 16:9 |
| Bezel Width |
Total: 5.3mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backight System |
LED |
| Luminance(nits) |
500cd/sqm |
| Contrast |
MEGA DCR |
| Viewing Angle |
H 178°|V 178° |
| Panel Dimension(WxHxD) |
1023.98x578.57x79.5mm
|
| White Point |
10,000 K |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000 h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
lower than 250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
0.85 |
| Storage Temperature |
-20-60°C | -4-140°F |
| Storage Humidity |
85% non-condensing |
LCD Video Wall Board Specifications
| Support |
PC |
Color |
24bit |
| Signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
|
DVI
HDMI
DP
|
Color |
24bit |
| Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| Interface |
Input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| Output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
