Ultra Narrow Multi Display Video Wall , Store Advertising Vertical Video Wall Screen

Ultra Narrow LCD Video Wall Original Display For Fashion Store Advertising DDW-LW550DUN-THA3

DDW LCD Video Wall​ basic informations:

•  With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
•  Adapting modular components, making maintenance operations and parts replacement very easily;

•  Pixel Pitch:0.630mm(H)*0.630mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;

•  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
•  7x24x365 keep working;

55 " DDW LCD video wall main parameters

1. Original DDW commercial grade lcd video wall display panel ,16:9 LG a-Si TFT-LCD

2. 700 nits brightness,MEGA DCR contrast

3. FHD physical resolution 1920x1080

4. Only 1.8 mm ultra narrow bezel, high quality ,Practical ,good vision effect.

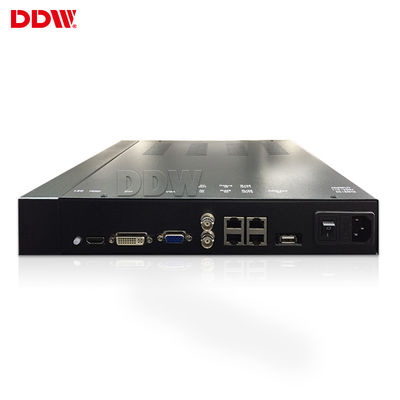

5. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

6. HD video wall unit--- High brightness,high contrast,High gamut .

7. Flexible structure design ---easy installation ,extensible,arbitrary combination

8. Stable performance,suitable working for a long time

Key features:

•  Support a variety of signal ports.
•  Built-in splicing module, Support splice function
•  Support creating one window PIP across the screen, roaming service, scaling,PIP
•  Support matrix joint control.
•  Unique DNX motion supplement image processing technology,
•  Dynamic image without motion trail
•  Splicing image processing RS-232 RJ45 loop-circuit input/output.
•  Input by remote control with wire, mobile receiver head.

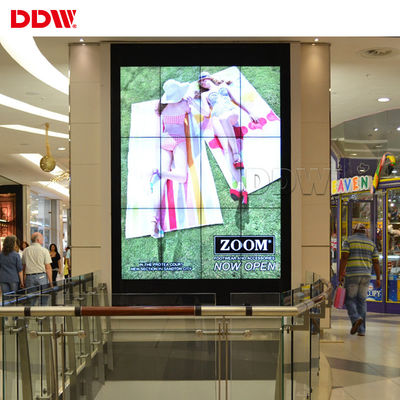

DDW Video wall is one of the most popular ultra narrow bezel lcd video wall panels. With 1.8 mm ultra narrow bezel, LED backlight and FHD 1080P resolution, Shenzhen DDW Technology Co.,Ltd LCD screen wall is adopting LCD panels,it can be widly used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show,rental and advertising center,museums,church,transportation and mass info display systems.

Specifications

LCD Video Wall Board Specifications
