46 DDW LCD Video Wall 1.7mm Ultra Narrow Bezel For Shopping Mall DP Loop Out

Name: 46 DDW LCD Video Wall 1.7mm Ultra Narrow Bezel For Shopping Mall DP Loop Out
Brand: DDW
SKU: DDW-LW460HN13
Rating: 4.5 (179 reviews)

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW460HN13

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                seamless lcd display, frameless lcd display


Product Name:	DDW LCD Video Wall	Backlight:	LED
Application:	Shopping Mall	Cooling:	Low Noise Fans
Responsive Time:	6ms	Brightness:	700 Nits
Bezel Size:	1.7 Mm	Panel Size:	46''

Product Name:	DDW LCD Video Wall
Backlight:	LED
Application:	Shopping Mall
Cooling:	Low Noise Fans
Responsive Time:	6ms
Brightness:	700 Nits
Bezel Size:	1.7 Mm
Panel Size:	46''

Product Description

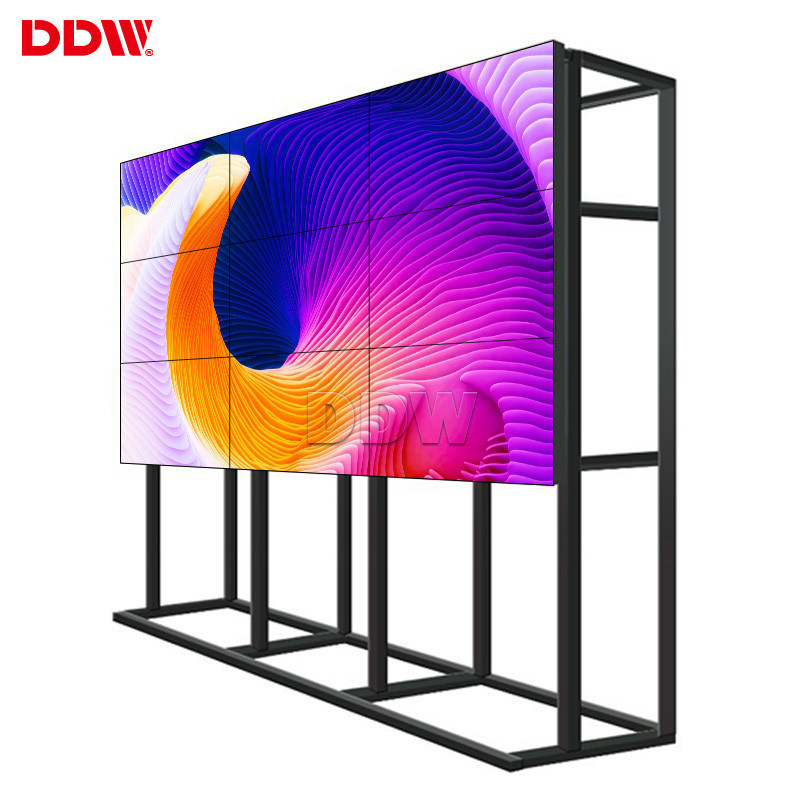

46 inch 1.7mm ultra narrow bezel LCD video wall DDW-LW460HN13

DDW LCD video wall key features:

Panel size: 46″, 49″, 55″, 60″, optional.
Ultra narrow frame design, the narrowest bezel is 1.7mm and the bezel can be optional.
Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
Interfaces: 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output;
Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;

DDW LCD video wall basic informations:

With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
Adapting modular components, making maintenance operations and parts replacement very easily;
The installation method: floor standing;
Dot Pitch: 0.53mm(H)*0.53mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
7x24x365 keep working;

Narrow Bezel:

46 inch LCD video wall narrow bezel available: 1.7 mm, 3.5 mm, 5.3 mm;

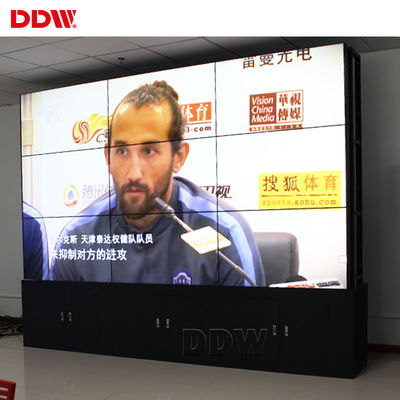

3×3 LCD Video Wall show commercial advertisement, food picture, video play, product picture;

View Angle

178 degree wide viewing angle, the full range of display;
Different modules optional: such as heating module, built in camera, air conditioner etc;

HD Panel Display

HD video wall unit: high brightness, contrast and gamut.
Resolution: 1920×1080, 3840×2160; Color: 16.7M; Brightness: 700cd/m2;

Functions:

Supporting 225 units (15×15) multi-matrix;
Single screen display. Each unit can display the picture independently;
Image overlay. Superimposed on screen another picture;
Easy to choose full screen or multi-screen display by control video wall controller.

Panel dimension and interfaces:

Dimension: 1020.02×547.61mm;
Interface: 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

Total bezel width

Bezel size:1.7 mm;
The front shell adapting black matt anti magnetic unique and exquisite strong in anti interface;

Connection topology and applications:

Supports multiple signal input: BNC, YPbPr, VGA, HDMI, DVI and RS232;
Applications: Financial center, real estate center, security room, cinema, theater, etc;

Panel Size	46″
Total bezel width	1.7 mm
Active Display Area	1020.02 x 574.61 mm
Resolution	1920 x 1080; 3840 x 2160
Brightness	700 nits
Contrast ratio	4000:01:00
Responsive time	6ms
Warranty	1 year

LCD Video Wall Board Specifications

Support	PC	Color	24bit
Signal		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
	DVI HDMI DP	Color	24bit
		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
Interface	Input	VGA x 1	15pin D-Sub
		DVI x 1	DVI-I
		DP x 1	Display Port
		HDMI x 2	HDMI-19 pin
	Output	PANEL	LVDS 36Pin/2.0
	Output	DP out	DP loop out
Power	Input power	DC24V/12V/5V
	Drive panel	5V/12V
	Power mode	Normal working mode, power saving mode
Other	OSD	Chinese, English and other languages (other languages can be added as required)
