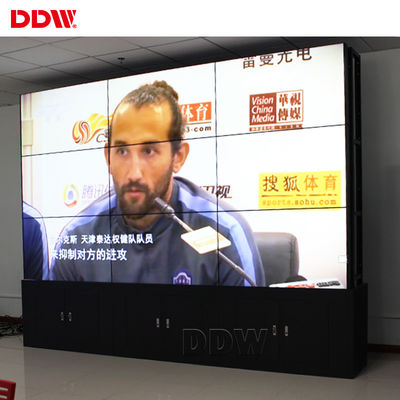

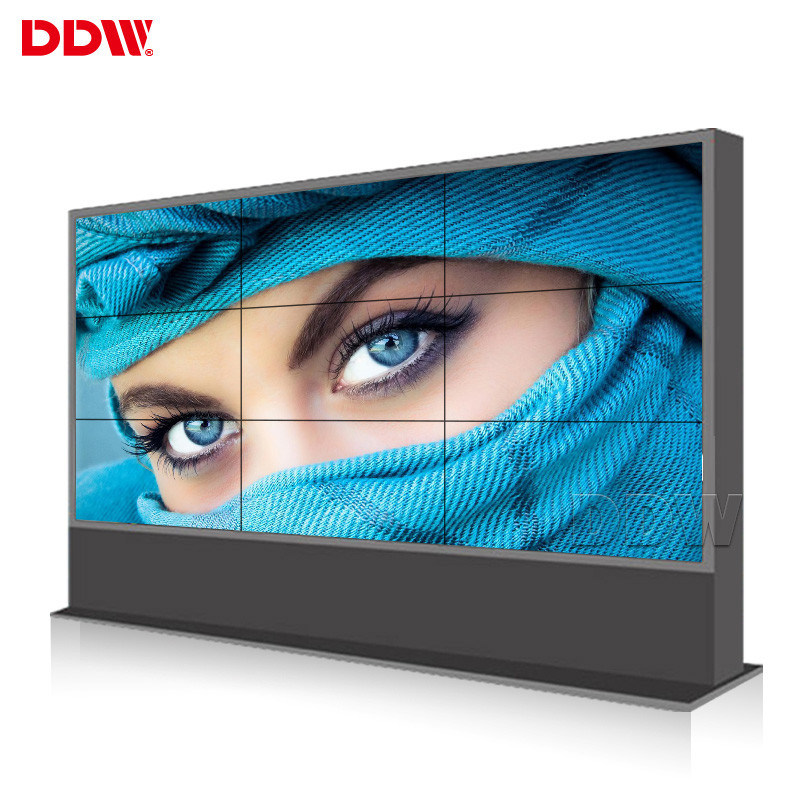

DP Loop Out 49 Seamless Video Wall Displays 3.5 Mm For Indoor Semi Outdoor

Name: DP Loop Out 49 Seamless Video Wall Displays 3.5 Mm For Indoor Semi Outdoor
Brand: SHENZHEN DDW TECHNOLOGY CO.,LTD
SKU: LW490DUN-THC1
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: LW490DUN-THC1

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                seamless lcd display, multi display video wall


Panel Size:	49 Inch	Bezel Width:	3.5mm
Surface:	Anti-glare	Brightness:	500 Nits
Product Name:	DDW LCD Video Wall	Backlight:	LED
Color:	8Bit , 16M	Aspect Ratio:	16:9

Panel Size:	49 Inch
Bezel Width:	3.5mm
Surface:	Anti-glare
Brightness:	500 Nits
Product Name:	DDW LCD Video Wall
Backlight:	LED
Color:	8Bit , 16M
Aspect Ratio:	16:9

Product Description

49 inch 3.5 mm seamless lcd display wall DDW-LW490DUN-THC1

DDW LCD video wall basic informations:

With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
Adapting modular components, making maintenance operations and parts replacement very easily;
The installation method: floor standing cabinets;
Dot Pitch: 0.56mm(H)*0.56mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
7x24x365 keep working;

DDW LCD video wall key features:

Panel size: 46", 49", 55", 60" optional
Ultra narrow frame design, the narrowest bezel is 3.5 mm and the bezel can be optional.
Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;

Specifications:

Model No:	DDW-LW49DUN-THC1
LCD Technology	LG IPS LCD
Active Screen Diagonal	49"
Total Bezel Width	3.5 mm
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backight System	LED
Luminance(nits)	500 cd/sqm
Contrast	MEGA DCR
Viewing Angle	H 178°\|V 178°
Panel Dimension(WxHxD)	1077.6×607.8x55.6 mm
White Point	10,000 K
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000 h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	lower than 250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor
Working Temperature	0°C~50°C
Working Humidity	0.85
Storage Temperature	-20-60°C \| -4-140°F
Storage Humidity	85% non-condensing

LCD Video Wall Board Specifications

Support	PC	Color	24bit
Signal		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
	DVI HDMI DP	Color	24bit
		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
Interface	Input	VGA x 1	15pin D-Sub
		DVI x 1	DVI-I
		DP x 1	Display Port
		HDMI x 2	HDMI-19 pin
	Output	PANEL	LVDS 36Pin/2.0
	Output	DP out	DP loop out
Power	Input power	DC24V/12V/5V
	Drive panel	5V/12V
	Power mode	Normal working mode, power saving mode
Other	OSD	Chinese, English and other languages (other languages can be added as required)

DP Loop Out 49 Seamless Video Wall Displays 3.5 Mm For Indoor Semi Outdoor 0
