Commercial Grade Seamless Video Wall , 700 Nits 46 Inch 1.7 Mm Multi Display LCD

Name: Commercial Grade Seamless Video Wall , 700 Nits 46 Inch 1.7 Mm Multi Display LCD
Brand: DDW
SKU: DDW-LW460HN13
Rating: 4.9 (106 reviews)

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW460HN13

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                seamless lcd display, multi display video wall


Panel Size:	46 Inch	Bezel Width:	1.7 Mm
Surface:	Anti-glare	Brightness:	700 Nits
Product Name:	DDW LCD Video Wall	Panel Brand:	Samsung
Panel Width:	1020.02 Mm	Panel Height:	574.61 Mm

Panel Size:	46 Inch
Bezel Width:	1.7 Mm
Surface:	Anti-glare
Brightness:	700 Nits
Product Name:	DDW LCD Video Wall
Panel Brand:	Samsung
Panel Width:	1020.02 Mm
Panel Height:	574.61 Mm

Product Description

46 Inch 1.7 Mm DDW LCD Wall Display DDW-LW460HN13 700 nits commercial grade

46 inch DDW LCD Wall Display Key features

Original INNOLUX commercial grade lcd video wall panel , 16:9 INNOLUX a-Si TFT-LCD
700nits brightness , 4000:1 contrast.UHD video wall unit , high brightness, high contrast, high gamut
1080P UHD physical resolution 1920x1080
Only 1.7mm narrow bezel , high quality , practical , good vision effect
Flexible structure design , easy installation , extensible , arbitrary combination

DDW LCD Wall Display Applications

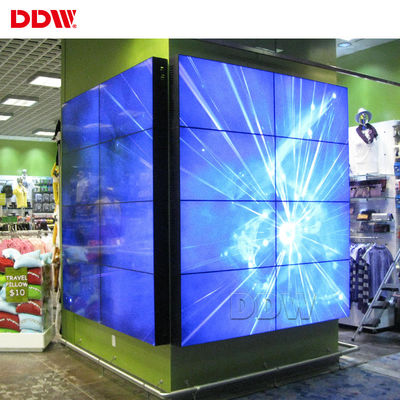

This 46 inch 1.7 mm narrow bezel video wall is the best cost-effective model , which can be widely used for cctv control room conference and meeting rooms , gym center , lobbies , security monitoring center , surveillance and retail center , restaurant and hotel , retail shopping mall advertising and information displays , public installations , exhibition and show center , live show , rental and advertising center , museums , church , transportation and mass info display systems.

LCD video wall display basic informations:

With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
Adapting modular components, making maintenance operations and parts replacement very easily;
The installation method: front push hydraulic pop out;
Dot Pitch: 0.53 mm(H)* 0.53 mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
7x24x365 keep working;

Specifications

Model No:	DDW-LW460HN13
LCD Technology	INNOLUX a-Si TFT-LCD
Active Screen Diagonal	46"
TotalBezel Width	1.7 mm
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backight System	LED
Luminance(nits)	700 cd/sqm
Contrast	MEGA DCR
Viewing Angle	H 178°\|V 178°
Panel Dimension(WxHxD)	1020.02×574.61x68.1mm
White Point	10,000 K
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000 h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	lower than 250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor
Working Temperature	0°C~50°C
Working Humidity	0.85
Storage Temperature	-20-60°C \| -4-140°F
Storage Humidity	85% non-condensing

LCD Video Wall Board Specifications

Support	PC	Color	24bit
Signal		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
	DVI HDMI DP	Color	24bit
		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
Interface	Input	VGA x 1	15pin D-Sub
		DVI x 1	DVI-I
		DP x 1	Display Port
		HDMI x 2	HDMI-19 pin
	Output	PANEL	LVDS 36Pin/2.0
	Output	DP out	DP loop out
Power	Input power	DC24V/12V/5V
	Drive panel	5V/12V
	Power mode	Normal working mode, power saving mode
Other	OSD	Chinese, English and other languages (other languages can be added as required)

Commercial Grade Seamless Video Wall , 700 Nits 46 Inch 1.7 Mm Multi Display LCD 0

Commercial Grade Seamless Video Wall , 700 Nits 46 Inch 1.7 Mm Multi Display LCD 1
