products

Home > products > LCD Video Wall > 500nits High Brightness Large Video Wall Displays , 55'' Videowall LCD TV Screens

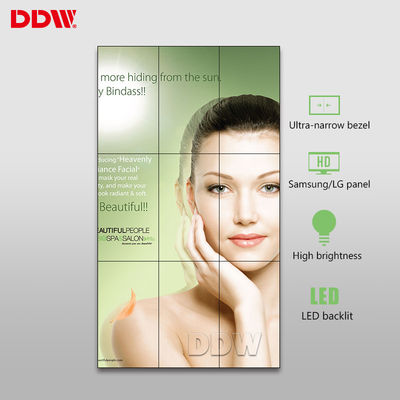

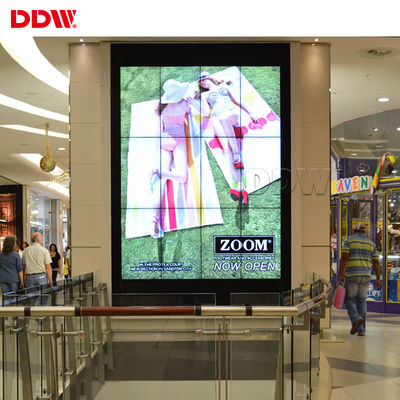

500nits High Brightness Large Video Wall Displays , 55'' Videowall LCD TV Screens

Name: 500nits High Brightness Large Video Wall Displays , 55'' Videowall LCD TV Screens
Brand: DDW
SKU: DDW-LW550HN16
Rating: 4.5 (137 reviews)

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW550HN16

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                seamless lcd display, frameless lcd display


Product Name:	DDW LCD Video Wall	Backlight:	LED
Response Time:	<=6ms	Display Colors:	8Bit,16.7M
Power Supply:	AC100~240V 50/60 HZ	Cooling:	Low Noise Fans
Brightness:	500nits	Surface:	Anti-glare

Product Name:	DDW LCD Video Wall
Backlight:	LED
Response Time:	<=6ms
Display Colors:	8Bit,16.7M
Power Supply:	AC100~240V 50/60 HZ
Cooling:	Low Noise Fans
Brightness:	500nits
Surface:	Anti-glare

Product Description

55" 1920 x 1080 digital wall video screens advertising 500 nits Brightness

Digital wall video screens Introduction

DDW LCD Video Wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.

Digital wall video screens Key features:

1. Support a variety of signal ports.

2. Built-in splicing module, Support splice function

3. Support creating one window PIP across the screen, roaming service, scaling,PIP

4. Support matrix joint control.

5. Unique DNX motion supplement image processing technology,

6. Dynamic image without motion trail

7. Splicing image processing RS-232 RJ45 loop-circuit input/output.

8. Input by remote control with wire, mobile receiver head.

55 " DDW LCD Video Wall main parameters

Original DDW commercial grade lcd video wall display panel ,16:9 Samsung a-Si TFT-LCD
500 nits brightness,MEGA DCR contrast
FHD physical resolution 1920x1080
Only 1.7 mm Ultra narrow bezel, high quality ,Practical ,good vision effect.
2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
FHD video wall unit--- High brightness,high contrast,High gamut .
Flexible structure design ---easy installation ,extensible,arbitrary combination
Stable performance,suitable working for a long time

digital wall video screensSpecifications

Model No:	DDW-LW550HN16
LCD Technology	Samsung a-Si TFT-LCD
Active Screen Diagonal	55"
Pixel Pitch(WxH)	0.630x0.630mm
Active Display Area(WxH)	1209.6x680.4mm
Panel Dimension(WxHxD)	1211.54x682.34x68.1mm
Total Bezel Width	1.7 mm \| 0.208”
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backlight System	LED
Luminance(nits)	500cd/sqm
Contrast	5000:1 (typ.)
Viewing Angle	H 178°\|V 178°
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	<=250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor/Outdoor
Working Temperature	0°C~50°C
Working Humidity	85% non-condensing
Storage Temperature	-20-60°C \| -4-149°F
Storage Humidity	85% non-condensing

Video Wall Board Specification

Support	PC	color	24bit
signal		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
	DVI	color	24bit
	HDMI	Line synchronization range	30-80KHZ
	DP	Field synchronization range	50-75HZ
Interface	input	VGA x 1	15pin D-Sub
		DVI x 1	DVI-I
		DP x 1	Display Port
		HDMI x 2	HDMI-19 pin
	output	PANEL	LVDS 36Pin/2.0
	output	DP out	DP loop out
Power	Input power	DC24V/12V/5V
	Drive panel	5V/12V
	Power mode	Normal working mode, power saving mode
Other	OSD	Chinese, English and other languages (other languages can be added as required)
