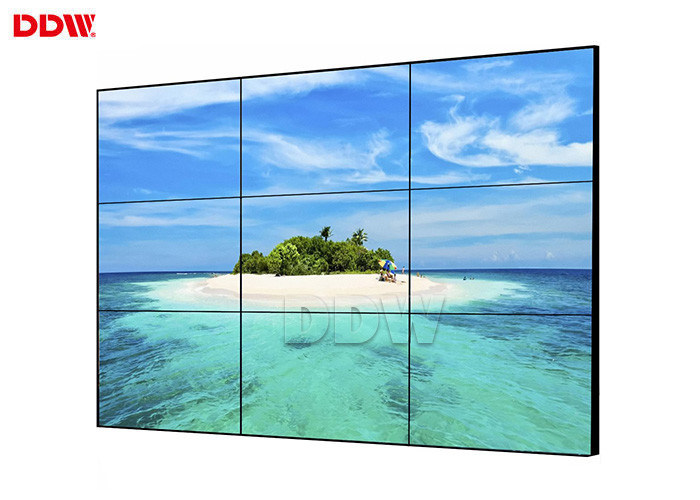

Original INNOLUX DDW LCD Video Wall Adapting Modular Components 1018.08 × 572.67 Mm
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW460HN13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
|
Detail Information |
|||
| Product Name: | DDW LCD Video Wall | Bezel Width: | 1.7 Mm |
|---|---|---|---|
| Surface: | Anti-glare | Brightness: | 700 Nits |
| Panel Brand: | Samsung | Panel Width: | 1020.02 Mm |
| Panel Height: | 574.61 Mm | Panel Size: | 46 Inch |
| Active Area: | 1018.08 × 572.67 Mm | ||
| Highlight: | seamless lcd display,multi display video wall |
||
Product Description
Original INNOLUX DDW LCD Video Wall Adapting Modular Components 1018.08 × 572.67 Mm
Key features of DDW LCD Video Wall
- Original INNOLUX commercial grade lcd video wall panel , 16:9 INNOLUX a-Si TFT-LCD
- 700nits brightness , 4000:1 contrast.UHD video wall unit , high brightness, high contrast, high gamut
- 1080P UHD physical resolution 1920x1080
- Only 1.7mm narrow bezel , high quality , practical , good vision effect
- Flexible structure design , easy installation , extensible , arbitrary combination
Applications of DDW LCD Video Wall
This 46 inch 1.7 mm narrow bezel video wall is the best cost-effective model , which can be widely used for cctv control room conference and meeting rooms , gym center , lobbies , security monitoring center , surveillance and retail center , restaurant and hotel , retail shopping mall advertising and information displays , public installations , exhibition and show center , live show , rental and advertising center , museums , church , transportation and mass info display systems.
DDW LCD Video Wall basic informations:
- With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
- Adapting modular components, making maintenance operations and parts replacement very easily;
- The installation method: front push hydraulic pop out;
- Dot Pitch: 0.53 mm(H)* 0.53 mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
- Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
Specifications of DDW LCD Video Wall
| Model No: | DDW-LW460HN13 |
| LCD Technology | INNOLUX a-Si TFT-LCD |
| Active Screen Diagonal | 46" |
| TotalBezel Width | 1.7 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 700 cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Panel Dimension(WxHxD) |
1020.02×574.61x68.1mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
Service
Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.
