| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW460HN14 |
| Minimum Order Quantity: | Negotiate |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Panel Size: | 46 Inch | Bezel Width: | 1.7 Mm |
|---|---|---|---|
| Product Name: | LCD Video Wall Display | Color: | 8Bit , 16M |
| Aspect Ratio: | 16:9 | White Point: | 10,000 K |
| Refresh Rate: | 60Hz | Surface: | Anti-glare |
| High Light: | seamless lcd display,frameless lcd display |
||

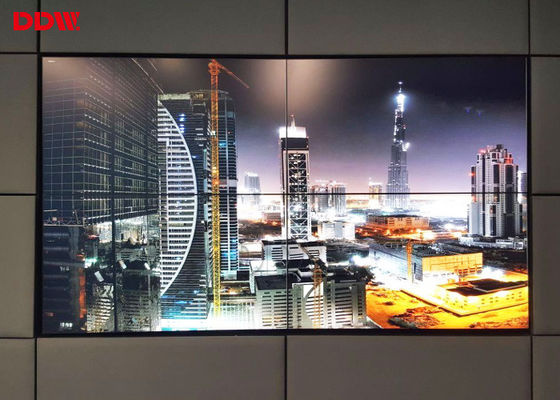

High Contrast LCD Video Wall Display / Multi Screen Display Wall 1920x1080p
LCD Video Wall Display Introduction
Advertising video wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.
LCD Video Wall Display main parameters
1. Original DDW commercial grade lcd video wall display panel,16:9 LG a-Si TFT-LCD
2. 500 nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,High gamut.
3. Only 1.7mm Ultra narrow bezel, high quality ,Practical ,good vision effect.
4. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
5. Flexible structure design ---easy installation ,extensible,arbitrary combination
6. Stable performance,suitable working for a long time
Key features Of LCD Video Wall Display :
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Unique DNX motion supplement image processing technology,
5. Dynamic image without motion trail
6. Splicing image processing RS-232 RJ45 loop-circuit input/output.
Specifications of LCD Video Wall Display :
| Model No: | DDW-LW460HN14 LCD Video Wall Display |
| Active Screen Diagonal | 46" |
| Bezel Width | Total: 1.7 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 500 cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Pixel Pitch(WxH) | 0.53×0.53 mm |
| Active Display Area(WxH) | 1018.08×572.67 mm |
| Panel Dimension(WxHxD) |
1020.02×574.61x68 mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
About Us
DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
