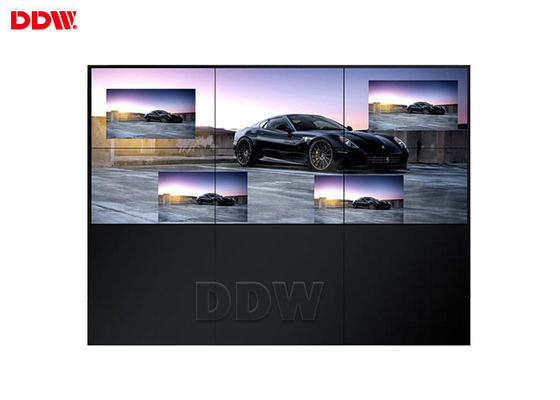

Interactive Large Display Wall / Multi - Matrix Samsung Lcd Video Wall

Name: Interactive Large Display Wall / Multi - Matrix Samsung Lcd Video Wall
Brand: DDW
SKU: DDW-DV550FHM-NV3
Rating: 4.9 (187 reviews)

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-DV550FHM-NV3

Payment & Shipping Terms

Minimum Order Quantity: negotiate

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: L/C , L/C , T/T

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                interactive video display, interactive touch screen video wall


Product Name:	Interactive Video Wall	Total Physical Bezel/mm:	3.5mm
Brightness/nits:	700	Panel Width/mm:	1213.5
Resolution:	1920*1080	Backlit Type:	LED
Panel Height:	684.3mm	Active Area:	1209.6×680.4 Mm

Product Name:	Interactive Video Wall
Total Physical Bezel/mm:	3.5mm
Brightness/nits:	700
Panel Width/mm:	1213.5
Resolution:	1920*1080
Backlit Type:	LED
Panel Height:	684.3mm
Active Area:	1209.6×680.4 Mm

Product Description

Interactive Large Display Wall / Multi - Matrix Samsung Lcd Video Wall

Application of Large Display Wall

Large Display Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.

Large Display Wall basic informations:

With original Samsung panel, has a stylish design, lighter weight, easy to handle and install;
Adapting modular components, making maintenance operations and parts replacement very easily;
Dot Pitch: 0.63mm(H)*0.63mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
7x24x365 keep working;

Large Display Wall Functions:

Supporting 225 units (15×15) multi-matrix;
Single screen display. Each unit can display the picture independently;
Image overlay. Superimposed on screen another picture;
Easy to choose full screen or multi-screen display by control video wall controller.

Large Display Wall Specifications

Active Screen Diagonal	55 inch
Panel Dimension(WxHxD)	1213.5x684.3x60.39mm
Total Bezel Width	3.5 mm
Aspect Ratio	16:9
Physical Resolution	1920x1080p
Backlight System	LED
Luminance(nits)	700cd/sqm
Contrast	4000:1 (typ.)
Viewing Angle	H 178°\|V 178°
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	<=250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor/Outdoor
Working Temperature	0°C~50°C
Working Humidity	85% non-condensing
Storage Temperature	-20-60°C \| -4-149°F
Storage Humidity	85% non-condensing

Large Display Wall Board Specifications

Support	PC	Color	24bit
Signal		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
	DVI HDMI DP	Color	24bit
		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
Interface	Input	VGA x 1	15pin D-Sub
		DVI x 1	DVI-I
		DP x 1	Display Port
		HDMI x 2	HDMI-19 pin
	Output	PANEL	LVDS 36Pin/2.0
	Output	DP out	DP loop out
Power	Input power	DC24V/12V/5V
	Drive panel	5V/12V
	Power mode	Normal working mode, power saving mode
Other	OSD	Chinese, English and other languages (other languages can be added as required)
