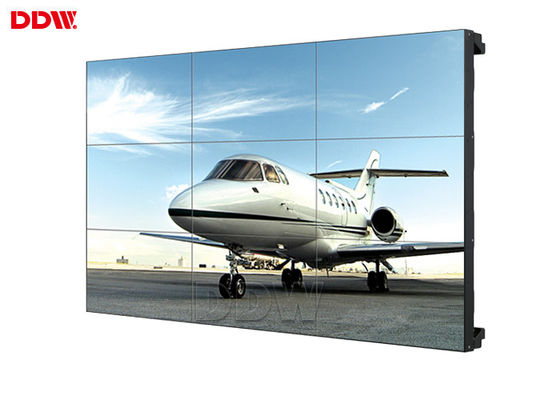

Anti Glare Multi Screen Video Wall , Stable Performance Lcd Wall Display Screen
Multi Screen Video Wall Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
6. Dynamic image without motion trail
7. Input by remote control with wire, mobile receiver head.
Multi Screen Video Wall main parameters
1. Original DDW commercial grade lcd video wall display panel ,16:9 Samsung a-Si TFT-LCD
2. 700 nits brightness,MEGA DCR contrast.FHD video wall unit--- High brightness,high contrast,High gamut.
3. FHD physical resolution 1920x1080
4. Only 3.5 mm Ultra narrow bezel, high quality ,Practical ,good vision effect.
5. Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
Specifications of Multi Screen Video Wall
| Model No: |
DDW-LW550HN12 |
| LCD Technology |
Samsung a-Si TFT-LCD |
| Active Screen Diagonal |
55" |
| Pixel Pitch(WxH) |
0.63x0.63 mm
|
| Active Display Area(WxH) |
1209.6 × 680.4 mm
|
| Panel Dimension(WxHxD) |
1213.5x684.3x67.7mm
|
| Total Bezel Width |
3.5mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backlight System |
LED |
| Luminance(nits) |
700cd/sqm |
| Contrast |
4000:1 (typ.) |
| Viewing Angle |
H 178°|V 178° |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
<=250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor/Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
85% non-condensing |
| Storage Temperature |
-20-60°C | -4-149°F |
| Storage Humidity |
85% non-condensing |
Multi Screen Video Wall Board Specifications
| Support |
PC |
Color |
24bit |
| Signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
|
DVI
HDMI
DP
|
Color |
24bit |
| Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| Interface |
Input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| Output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
Our Service
DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
