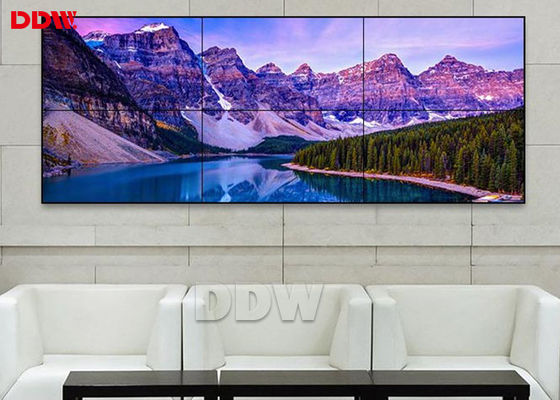

High Resolution 55 Inch DDW LCD Video Wall Support Matrix Joint Control
55 Inch DDW LCD Video Wall Introduction
55 Inch DDW LCD Video Wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.
55 Inch DDW LCD Video Wall Key features:
1. Built-in splicing module, Support splice function
2. Support creating one window PIP across the screen, roaming service, scaling,PIP
3. Unique DNX motion supplement image processing technology,
4. Dynamic image without motion trail
5. Splicing image processing RS-232 RJ45 loop-circuit input/output.
6. Input by remote control with wire, mobile receiver head.
55 Inch DDW LCD Video Wall main parameters
- 500 nits brightness,MEGA DCR contrast
- FHD physical resolution 1920x1080
- Only 3.5 mm Ultra narrow bezel, high quality ,Practical ,good vision effect.
- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
- FHD video wall unit--- High brightness,high contrast,High gamut .
- Flexible structure design ---easy installation ,extensible,arbitrary combination
- Stable performance,suitable working for a long time
55 Inch DDW LCD Video Wall Specifications
| Model No: |
DDW-LW550HN11
|
| LCD Technology |
Samsung a-Si TFT-LCD |
| Active Screen Diagonal |
55" |
| Pixel Pitch(WxH) |
0.630x0.630mm |
| Active Display Area(WxH) |
1209.6x680.4mm |
| Panel Dimension(WxHxD) |
1213.5x684.3x67.7mm |
| Total Bezel Width |
3.5mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backlight System |
LED |
| Luminance(nits) |
500cd/sqm |
| Contrast |
4000:1 (typ.) |
| Viewing Angle |
H 178°|V 178° |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
<=250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor/Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
85% non-condensing |
| Storage Temperature |
-20-60°C | -4-149°F |
| Storage Humidity |
85% non-condensing |
55 Inch DDW LCD Video Wall Board Specification
| Support |
PC |
color |
24bit |
| signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| DVI |
color |
24bit |
| HDMI |
Line synchronization range |
30-80KHZ |
| DP |
Field synchronization range |
50-75HZ |
| Interface |
input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
