Highlight:
frameless lcd display
, multi display video wall

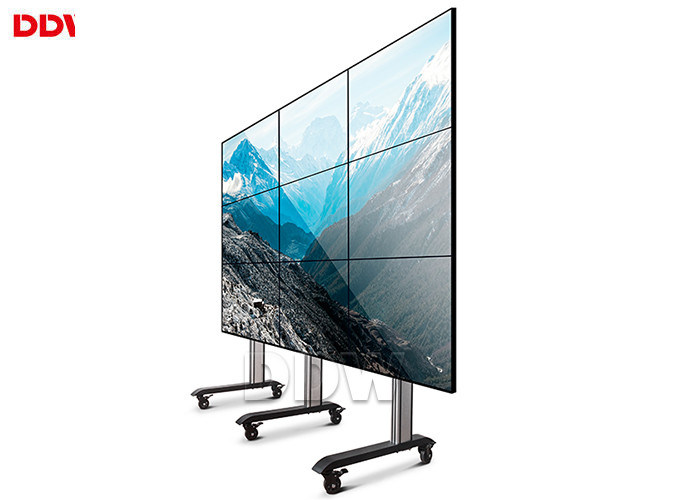

Herizontal Shopping Mall DDW LCD Video Wall With LG Panel RS232 Control
DDW LCD Video Wall basic informations:
- With original LG, Samsung panel, easy to handle and install;
- Adapting modular components, making maintenance operations and parts replacement very easily;
- Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
- 7x24x365 keep working;
DDW LCD video wall main parameters
1. Original DDW commercial grade lcd video wall display panel ,16:9 LG a-Si TFT-LCD
2. 700 nits brightness,MEGA DCR contrast
3. Only 1.8 mm ultra narrow bezel, high quality ,Practical ,good vision effect.
4. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
5. HD video wall unit--- High brightness,high contrast,High gamut .
6. Flexible structure design ---easy installation ,extensible,arbitrary combination
7. Stable performance,suitable working for a long time
Key features of DDW LCD Video Wall :
- Support a variety of signal ports.
- Support creating one window PIP across the screen, roaming service, scaling,PIP
- Support matrix joint control.
- Unique DNX motion supplement image processing technology,
- Dynamic image without motion trail
- Splicing image processing RS-232 RJ45 loop-circuit input/output.
- Input by remote control with wire, mobile receiver head.
DDW Video wall is one of the most popular ultra narrow bezel lcd video wall panels. With 1.8 mm ultra narrow bezel, LED backlight and FHD 1080P resolution, Shenzhen DDW Technology Co.,Ltd LCD screen wall is adopting LCD panels,it can be widly used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show,rental and advertising center,museums,church,transportation and mass info display systems.
Specifications
| Model No: |
DDW-LW550DUN-THA3 |
| LCD Technology |
LG a-Si TFT-LCD |
| Active Screen Diagonal |
55" |
| Pixel Pitch(WxH) |
0.630x0.630mm |
| Active Display Area(WxH) |
1209.6.x680.4mm |
| Panel Dimension(WxHxD) |
1211.4 x682.2x53.3mm |
| Total Bezel Width |
1.8mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backlight System |
LED |
| Luminance(nits) |
700 cd/sqm |
| Contrast |
5000:1 (typ.) |
| Viewing Angle |
H 178°|V 178° |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
<=250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor/Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
85% non-condensing |
| Storage Temperature |
-20-60°C | -4-149°F |
| Storage Humidity |
85% non-condensing |
Facilities:
We group companies own following facilities to accomplete the business:
1) 2500㎡ production department
2) Our own metal factory 3000㎡
3) Our own panel warehouse 1500㎡
