| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-DV550FHM-NV3 |
| Minimum Order Quantity: | negotiate |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Panel Size: | 55 Inch | Bezel Width: | 3.5mm |
|---|---|---|---|
| Brightness: | 700 Nits | Product Name: | Commercial Video Wall |
| Color: | 8Bit , 16M | Aspect Ratio: | 16:9 |
| Panel Width/mm: | 1213.5 | Panel Height/mm: | 684.3 |
| High Light: | lcd screen wall,seamless lcd video wall |
||

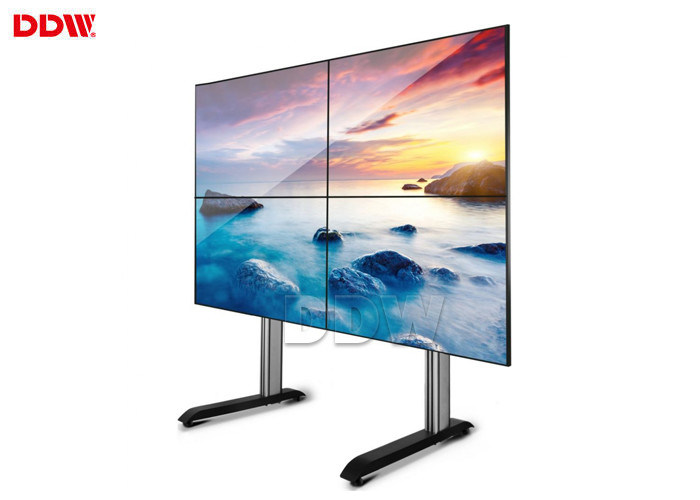

Good Vision Effect Hdmi Video Wall , Show Center LCD Wall Display 1.07GB Colors
Hdmi Video Wall Key features
1. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
2. HD video wall unit--- High brightness,high contrast,high gamut .
3. Flexible structure design ---easy installation ,extensible,arbitrary combination
4. Stable performance,suitable working for a long time
5. Original DDW commercial grade lcd video wall panel ,16:9 Innolux a-Si TFT-LCD
6. 700nits brightness,5000:1 contrast
7. Only 3.5mm ultra narrow bezel.high quality ,Practical ,good vision effect.
Service
Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.
DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
Hdmi Video Wall Specifications
| Model No: | DDW-DV550FHM-NV3 | |||||||||
| Active Screen Diagonal | 55" | |||||||||
| Total Bezel Width | 3.5 mm | |||||||||
| Aspect Ratio | 16:9 | |||||||||
| Physical Resolution | 1920x1080 | |||||||||
| Backight System | LED | |||||||||
| Luminance(nits) | 700 cd/㎡ | |||||||||
| Contrast | 5000:1 | |||||||||
| Viewing Angle | H 178°|V 178° | |||||||||
| Panel Dimension(WxHxD) |
1213.5x684.3x60.39mm |
|||||||||
| White Point | 10,000 K | |||||||||
| Display Colors | 1.07GB colors | |||||||||
| Refresh Rate | 60Hz | |||||||||
| Response Time | <=6ms | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| MTBF | > 100,000 h | |||||||||
| Surface | Anti-glare | |||||||||
| Standby Power Consumption | <3W | |||||||||
| Maximum Power Consumption | ≦160W | |||||||||
| Power Supply | AC100~240V 50/60 HZ | |||||||||
| Cooling | Low noise fans | |||||||||
| Heat Dissipation | 819 BTU/h (max) | |||||||||
| Working Time Capacity | 7x24x365hours | |||||||||
| Application Area | Indoor/Semi Outdoor | |||||||||
| Working Temperature | 0℃～50℃ | |||||||||
| Working Humidity | 0.85 | |||||||||
| Storage Temperature | -20-60°C | -4-140°F | |||||||||
| Storage Humidity | 85% non-condensing | |||||||||
Hdmi Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
