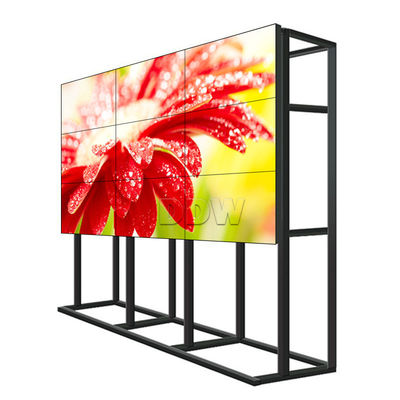

Anti Glare Surface Monitor Para Video Wall / Multi LCD Display 500 Nits
Monitor Para Video Wall Application:
Monitor Para Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
Monitor Para Video Wall main parameters
1. Original DDW commercial grade lcd video wall display panel,16:9 Samsung a-Si TFT-LCD
2. 500 nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,High gamut .
3. FHD physical resolution 1920x1080
4. Only 3.5 mm Ultra narrow bezel, high quality ,Practical ,good vision effect.
5. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6. Flexible structure design ---easy installation ,extensible,arbitrary combination
7. Stable performance,suitable working for a long time.
Monitor Para Video Wall Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
6. Dynamic image without motion trail
7. Splicing image processing RS-232 RJ45 loop-circuit input/output.
8. Input by remote control with wire, mobile receiver head.
Monitor Para Video Wall Specifications
| Model No: |
DDW-LW460HN11 |
| LCD Technology |
Samsung a-Si TFT-LCD |
| Active Screen Diagonal |
46'' |
| Panel Dimension(WxHxD) |
1021.98mmx576.57mmx72.1mm |
| Total Bezel Width |
3.5mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backlight System |
LED |
| Luminance(nits) |
500cd/sqm |
| Contrast |
3500:1 (typ.) |
| Viewing Angle |
H 178°|V 178° |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
<=250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor/Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
85% non-condensing |
| Storage Temperature |
-20-60°C | -4-149°F |
| Storage Humidity |
85% non-condensing |
Video Wall Borad Specifications
| Support |
PC |
Color |
24bit |
| signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
|
DVI
HDMI
DP
|
color |
24bit |
| Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| Interface |
Input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| Output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
