| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-DV490FHM-NV0 |
| Minimum Order Quantity: | negotiation |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Product Name: | Multi Panel LCD Display | Aplication: | Outdoor |
|---|---|---|---|
| Other Name: | Monitor Para Video Wall | Brightness: | 500 Nits |
| Color: | 8Bit , 16M | Aspect Ratio: | 16:9 |
| Panel Width: | 1077.6 Mm | Panel Height: | 607.8 Mm |
| High Light: | seamless lcd display,frameless lcd display |
||

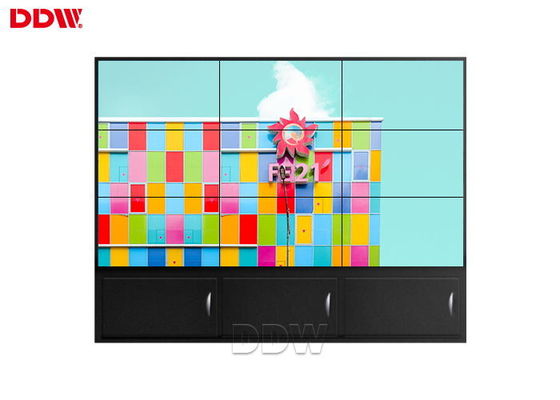

Outdoor Multi Panel LCD Display , Interactive Monitor Para Video Wall
Multi Panel LCD Display parameters
1. Original DDW commercial grade lcd video wall display panel ,16:9 LG a-Si TFT-LCD
2. 500nits brightness,MEGA DCR contrast
3. FHD physical resolution 1920x1080
4. Only 3.5mm Ultra narrow bezel, high quality ,Practical ,good vision effect.
5. Signal interface rich --- RS232, HDMI,DVI,VGA,Y Pb Pr ,AV
6. HD video wall unit--- High brightness,high contrast,High gamut .
Multi Panel LCD Display features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support Creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
6. Dynamic image without motion trail
Multi Panel LCD Display Specifications
| Model No: | DDW-DV490FHM-NV0 Multi Panel LCD Display | |||||||||
| Active Screen Diagonal | 49" | |||||||||
| Total Bezel Width | 3.5mm | |||||||||
| Aspect Ratio | 16:9 | |||||||||
| Physical Resolution | 1920x1080 | |||||||||
| Backight System | LED | |||||||||
| Luminance(nits) | 500 cd/㎡ | |||||||||
| Contrast | 5000:1 | |||||||||
| Viewing Angle | H 178°|V 178° | |||||||||
| Panel Dimension(WxHxD) |
1077.6mmx607.8mmx59.67mm |
|||||||||
| White Point | 10,000 K | |||||||||
| Display Colors | 1.07GB colors | |||||||||
| Refresh Rate | 60Hz | |||||||||
| Response Time | <=6ms | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| MTBF | > 100,000 h | |||||||||
| Surface | Anti-glare | |||||||||
| Standby Power Consumption | <3W | |||||||||
| Maximum Power Consumption | ≦160W | |||||||||
| Power Supply | AC100~240V 50/60 HZ | |||||||||
| Cooling | Low noise fans | |||||||||
| Heat Dissipation | 819 BTU/h (max) | |||||||||
| Working Time Capacity | 7x24x365hours | |||||||||
| Application Area | Indoor/Semi Outdoor | |||||||||
| Working Temperature | 0℃～50℃ | |||||||||
| Working Humidity | 0.85 | |||||||||
| Storage Temperature | -20-60°C | -4-140°F | |||||||||
| Storage Humidity | 85% non-condensing | |||||||||
Service
Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.
DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
