| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW460HN12 |
| Minimum Order Quantity: | Negotiate |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Product Name: | Commercial DDW LCD Video Wall | Brightness: | 700 Nits |
|---|---|---|---|
| Advnatage: | Durable | Backlight: | LED |
| Panel Heigh: | 576.57 Mm | Panel Size: | 46'' |
| Application: | Conference And Meeting Rooms | Dot: | 0.5302x0.5302 |
| High Light: | seamless lcd display,multi display video wall |
||

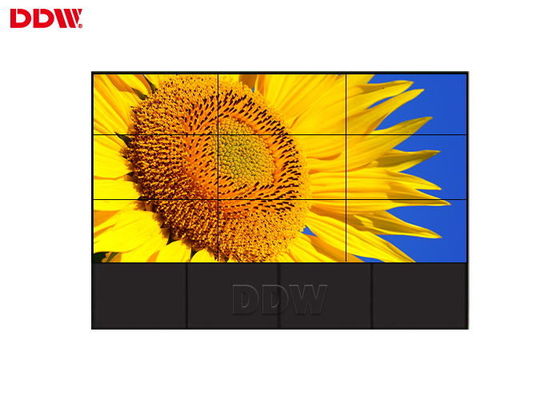

Durable Commercial DDW LCD Video Wall For Conference And Meeting Rooms
DDW LCD Video Wall Applications
conference and meeting rooms, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
DDW LCD Video Wall Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
DDW LCD Video Wall main parameters
1. Original DDW commercial grade lcd video wall display panel,16:9 LG a-Si TFT-LCD
2. 700 nits brightness,MEGA DCR contrast
3. FHD physical resolution 1920x1080
4. Only 3.5 mm Ultra narrow bezel, high quality ,Practical ,good vision effect.
5. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6. HD video wall unit--- High brightness,high contrast,High gamut .
DDW LCD Video Wall Specifications
| Model No: | DDW-LW460HN12 DDW LCD Video Wall |
| LCD Technology | LG a-Si TFT-LCD |
| Active Screen Diagonal | 46" |
| Pixel Pitch(WxH) | 0.5302x0.5302mm |
| Active Display Area(WxH) |
1018.08×572.67 mm |
| Panel Dimension(WxHxD) |
1021.98×576.57x66.9mm |
| Total Bezel Width | 3.5 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backlight System | LED |
| Luminance(nits) | 700cd/sqm |
| Contrast | 4000:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | <=250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor/Outdoor |
Video Wall Board Specification
| Support | PC | color | 24bit |
| signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
| DVI | color | 24bit | |
| HDMI | Line synchronization range | 30-80KHZ | |
| DP | Field synchronization range | 50-75HZ | |
| Interface | input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
