| Place of Origin: | Guangdong , China (Mainland) |
|---|---|
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN16 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
| Product Name: | Multi Touch Wall Display | Image: | Dynamic Image |
|---|---|---|---|
| Total Physical Bezel/mm: | 1.7mm | Brightness/nits: | 500 |
| Panel Width/mm: | 1211.54 | Panel Height/mm: | 682.34 |
| D: | 68.1 | Resolution: | FHD |
| High Light: | seamless lcd display,frameless lcd display |
||

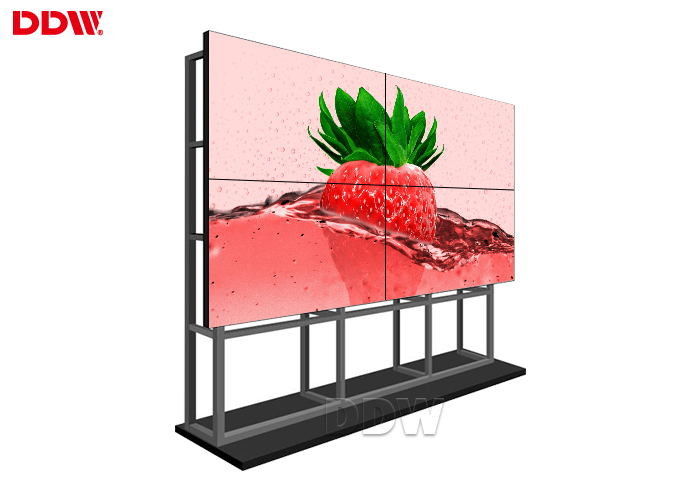

Dynamic Image Multi Touch Wall Display , FHD LCD Wall Display Screen
Multi Touch Wall Display Introduction
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Dynamic image without motion trail
6. Splicing image processing RS-232 RJ45 loop-circuit input/output.
Multi Touch Wall Display parameters
Multi Touch Wall Display Specifications
| Model No: |
DDW-LW550HN16 Multi Touch Wall Display |
| LCD Technology | Samsung a-Si TFT-LCD |
| Active Screen Diagonal | 55" |
| Pixel Pitch(WxH) | 0.630x0.630mm |
| Active Display Area(WxH) | 1209.6x680.4mm |
| Panel Dimension(WxHxD) |
1211.54x682.34x68.1mm |
| Total Bezel Width | 1.7 mm | 0.208” |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backlight System | LED |
| Luminance(nits) | 500cd/sqm |
| Contrast | 4000:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | <=250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor/Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 85% non-condensing |
| Storage Temperature | -20-60°C | -4-149°F |
| Storage Humidity | 85% non-condensing |
LED Video Panel Specification
| Support | PC | color | 24bit |
| signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
| DVI | color | 24bit | |
| HDMI | Line synchronization range | 30-80KHZ | |
| DP | Field synchronization range | 50-75HZ | |
| Interface | input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
