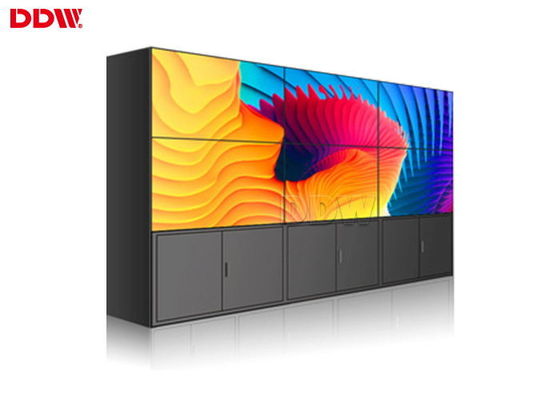

Anti Glare 46'' DDW LCD Video Wall With Original Samsung / LG Panel

Name: Anti Glare 46'' DDW LCD Video Wall With Original Samsung / LG Panel
Brand: DDW
SKU: DDW-LW460HN09
Rating: 4.8 (119 reviews)

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW460HN09

Payment & Shipping Terms

Minimum Order Quantity: negotiation

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                frameless lcd display, multi display video wall


Product Name:	DDW LCD Video Wall	Panel Size:	46''
Bezel Width:	5.3mm	Surface:	Anti-glare
Brightness:	500 Nits	Panel Brand:	Original Samsung / LG Panel
Panel Width:	1023.98 Mm	Panel Height:	578.57 Mm

Product Name:	DDW LCD Video Wall
Panel Size:	46''
Bezel Width:	5.3mm
Surface:	Anti-glare
Brightness:	500 Nits
Panel Brand:	Original Samsung / LG Panel
Panel Width:	1023.98 Mm
Panel Height:	578.57 Mm

Product Description

Anti Glare 46'' DDW LCD Video Wall With Original Samsung / LG Panel

DDW LCD Video Wall features:

Support Creating one window PIP across the screen, roaming service, scaling,PIP
Unique DNX motion supplement image processing technology,
Dynamic image without motion trail
Splicing image processing RS-232 RJ45 loop-circuit input/output.

DDW LCD Video Wall main parameters

1. Original DDW commercial grade lcd video wall display panel ,16:9 LG a-Si TFT-LCD

2. 500nits brightness,MEGA DCR contrast

3. FHD physical resolution 1920x1080

4. Only 5.3mm Ultra narrow bezel, high quality ,Practical ,good vision effect.

5. Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output

DDW LCD Video Wall Specifications:

Model No:	DDW-LW460HN09 DDW LCD Video Wall
LCD Technology	LG IPS LCD
Active Screen Diagonal	46"
Bezel Width	Total: 5.3mm
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backight System	LED
Luminance(nits)	500 cd/sqm
Contrast	MEGA DCR
Viewing Angle	H 178°\|V 178°
Pixel Pitch(WxH)	0.5302×0.5302mm
Active Display Area(WxH)	1018.08×572.67 mm
Panel Dimension(WxHxD)	1023.98×578.57x79.5mm
White Point	10,000 K
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000 h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	lower than 250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor
Working Temperature	0°C~50°C
Working Humidity	0.85
Storage Temperature	-20-60°C \| -4-140°F
Storage Humidity	85% non-condensing

DDW LCD Video Wall Board Specifications

Support	PC	Color	24bit
Signal		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
	DVI HDMI DP	Color	24bit
		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
Interface	Input	VGA x 1	15pin D-Sub
		DVI x 1	DVI-I
		DP x 1	Display Port
		HDMI x 2	HDMI-19 pin
	Output	PANEL	LVDS 36Pin/2.0
	Output	DP out	DP loop out
Power	Input power	DC24V/12V/5V
	Drive panel	5V/12V
	Power mode	Normal working mode, power saving mode
Other	OSD	Chinese, English and other languages (other languages can be added as required)
