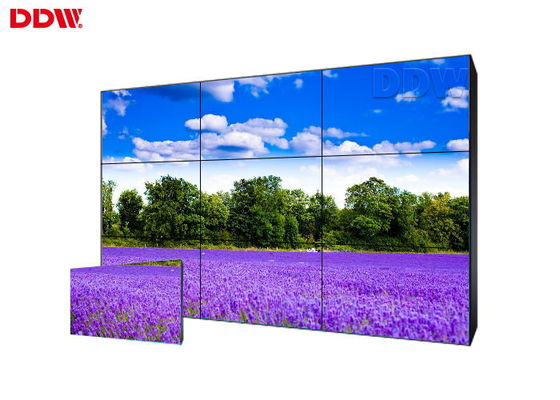

Horizontal Multi Screen Video Wall / Samsung Seamless LCD Video Wall

Basic Information
Place of Origin: Guangdong , China (Mainland)
Brand Name: DDW
Certification: ISO9001 , CE , RoHS , FCC
Model Number: DDW-LW490DUN-TJB1
Minimum Order Quantity: negotiation
Price: Negotiable
Packaging Details: First layer carton pack with filling foam , then wood pallet pack
Delivery Time: 3 working days upon payment
Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance
Supply Ability: 3 , 000pcs per month
Detail Information
Product Name: Multi Screen Video Wall Panel Size: 49 Inch
Type: Horizontal Backlight: LED
Color: 8Bit , 16M Aspect Ratio: 16:9
Working Humidity: 0.85 Panel: Samsung
High Light:

frameless lcd display

,

multi display video wall


Product Description

Horizontal Multi Screen Video Wall / Samsung Seamless LCD Video Wall



Multi Screen Video Wall Application



Advertising video wall technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080p 60Hz, which should be more extensive.



Multi Screen Video Wall informations:

  •  The installation method: floor standing cabinets;
  •  Dot Pitch: 0.56mm(H)*0.56mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
  •  Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;

Multi Screen Video Wall features:

  •  Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
  •  The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
  •  Interface--- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
  •  Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
  •  Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;

Multi Screen Video Wall Specifications



Model No: DDW-LW490DUN-TJB1 Multi Screen Video Wall
LCD Technology LG IPS LCD
Active Screen Diagonal 49"
Total Bezel Width 1.8 mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500 cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH) 0.5593×0.5593 mm
Active Display Area(WxH) 1073.8×604 mm
Panel Dimension(WxHxD)

1075.38×605.8x53.6 mm

White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C



Multi Screen Video Wall Board Specifications



Support PC Color 24bit
Signal   Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
