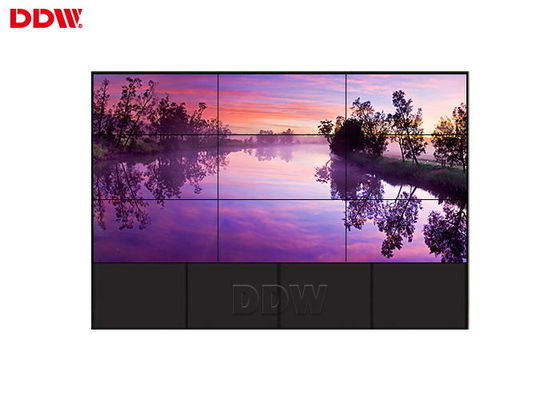

Ultra Narrow Bezel 3x3 Video Wall / Frameless LCD Display Screen 500 Nits
3x3 Video Wall main parameters
1. Only 3.5 mm Ultra narrow bezel, high quality ,Practical ,good vision effect.
2. 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
3. Flexible structure design ---easy installation ,extensible,arbitrary combination
4. Stable performance,suitable working for a long time.
3x3 Video Wall Application:
3x3 Video Wall is widely used in below fields:surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.
3x3 Video Wall Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
6. Dynamic image without motion trail
3x3 Video Wall Specifications
| Model No: |
DDW-LW460HN11 3x3 Video Wall |
| LCD Technology |
Samsung a-Si TFT-LCD |
| Active Screen Diagonal |
46'' |
| Panel Dimension(WxHxD) |
1021.98mmx576.57mmx72.1mm |
| Total Bezel Width |
3.5mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backlight System |
LED |
| Luminance(nits) |
500cd/sqm |
| Contrast |
3500:1 (typ.) |
| Viewing Angle |
H 178°|V 178° |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
<=250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor/Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
85% non-condensing |
| Storage Temperature |
-20-60°C | -4-149°F |
| Storage Humidity |
85% non-condensing |
3x3 Video Wall Borad Specifications
| Support |
PC |
Color |
24bit |
| signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
|
DVI
HDMI
DP
|
color |
24bit |
| Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| Interface |
Input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| Output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
