Home > products > LCD Video Wall > Multi Screen DDW LCD Video Wall For Advertising 1073.8 × 604 Mm Active Area

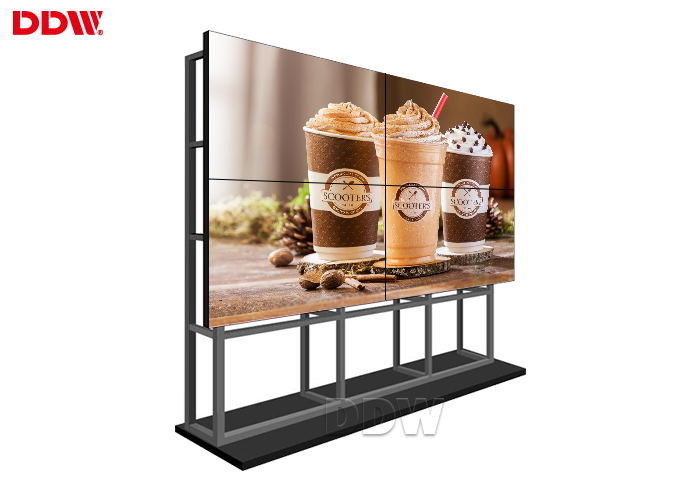

Multi Screen DDW LCD Video Wall For Advertising 1073.8 × 604 Mm Active Area

Name: Multi Screen DDW LCD Video Wall For Advertising 1073.8 × 604 Mm Active Area
Brand: DDW
SKU: LW490DUN-THC1
Rating: 4.8 (199 reviews)

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: LW490DUN-THC1

Payment & Shipping Terms

Minimum Order Quantity: negotiation

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: T/T , Western , L/C Union , Alibaba trade assurance

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                seamless lcd display, multi display video wall


Name:	DDW LCD Video Wall	Active Area:	1073.8 × 604 Mm
Brightness:	500 Nits	Application:	Advertising
Backlight:	LED	Aspect Ratio:	16:9

Name:	DDW LCD Video Wall
Active Area:	1073.8 × 604 Mm
Brightness:	500 Nits
Application:	Advertising
Backlight:	LED
Aspect Ratio:	16:9

Product Description

Multi Screen DDW LCD Video Wall For Advertising 1073.8 × 604 Mm Active Area

DDW LCD Video Wall introduction:

DDW LCD Video Wall With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
Adapting modular components, making maintenance operations and parts replacement very easily;
The installation method: floor standing cabinets;
Dot Pitch: 0.56mm(H)*0.56mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;

DDW LCD Video Wall features:

Panel size: Customized
Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;

DDW LCD Video Wall Specifications

Model No:	DDW-LW49DUN-THC1
LCD Technology	LG IPS LCD
Active Screen Diagonal	49 Inch
Total Bezel Width	3.5 mm
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backight System	LED
Luminance(nits)	500 cd/sqm
Contrast	MEGA DCR
Viewing Angle	H 178°\|V 178°
White Point	10,000 K
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000 h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	lower than 250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor
Working Temperature	0°C~50°C
Working Humidity	0.85
Storage Temperature	-20-60°C \| -4-140°F
Storage Humidity	85% non-condensing

DDW LCD Video Wall Board Specifications

Support	PC	Color	24bit
Signal		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
	DVI HDMI DP	Color	24bit
		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
Interface	Input	VGA x 1	15pin D-Sub
		DVI x 1	DVI-I
		DP x 1	Display Port
		HDMI x 2	HDMI-19 pin
	Output	PANEL	LVDS 36Pin/2.0
	Output	DP out	DP loop out
Power	Input power	DC24V/12V/5V
	Drive panel	5V/12V
	Power mode	Normal working mode, power saving mode
