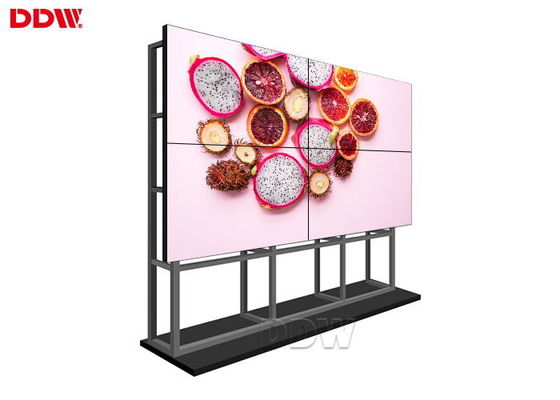

Standalone Multiple TV Video Wall , Large Video Wall Displays Dynamic Image
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
|
Detail Information |
|||
| Product Name: | Multiple Tv Video Wall | Image: | Dynamic Image |
|---|---|---|---|
| Active Area: | 1209.6 × 680.4 Mm | Refresh Rate: | 60Hz |
| Response Time: | <=6ms | Type: | Standalone |
| Other Name: | Large Video Wall Displays | Cooling: | Low Noise Fans |
| Highlight: | interactive video display,interactive touch screen video wall |
||
Product Description
Standalone Multiple Tv Video Wall , Large Video Wall Displays Dynamic Image
Multiple TV Video Wall main parameters
- 500 nits brightness,MEGA DCR contrast
- Only 3.5 mm Ultra narrow bezel, high quality ,Practical ,good vision effect.
- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
- FHD video wall unit--- High brightness,high contrast,High gamut .
- Flexible structure design ---easy installation ,extensible,arbitrary combination
- Stable performance,suitable working for a long time
| Multiple TV Video Wall Application | |
| Business product promotional display |
supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels,restaurants, travel agencies, pharmacy. |
| Financial Organizations | Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools; |
| Public Places |
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers; |
| Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course |
Multiple TV Video Wall Key features:
1. Built-in splicing module, Support splice function
2. Support creating one window PIP across the screen, roaming service, scaling,PIP
3. Unique DNX motion supplement image processing technology,
4. Dynamic image without motion trail
5. Splicing image processing RS-232 RJ45 loop-circuit input/output.
Multiple TV Video Wall Specifications
| Model No: |
DDW-LW550HN11 |
| LCD Technology | Samsung a-Si TFT-LCD |
| Active Screen Diagonal | 55" |
| Pixel Pitch(WxH) | 0.630x0.630mm |
| Active Display Area(WxH) | 1209.6x680.4mm |
| Panel Dimension(WxHxD) | 1213.5x684.3x67.7mm |
| Total Bezel Width | 3.5mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backlight System | LED |
| Luminance(nits) | 500cd/sqm |
| Contrast | 4000:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | <=250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor/Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 85% non-condensing |
| Storage Temperature | -20-60°C | -4-149°F |
| Storage Humidity | 85% non-condensing |
Multiple TV Video Wall Board Specification
| Support | PC | color | 24bit |
| signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
| DVI | color | 24bit | |
| HDMI | Line synchronization range | 30-80KHZ | |
| DP | Field synchronization range | 50-75HZ | |
| Interface | input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
About Us
Shenzhen DDW Technology Co.,Ltd started in 2009, a leading manufacturer and developer of commercial LCD displays withown facility 7000sqm in China. We focus on customized Indoor outdoor digital totems, touch screen kiosk, Stretched Bar LCD,LCD video wall system,video wall controller and more LCD display solutions. With high quality standard, meticulous workmanship, strict quality control,professional service, DDW aims to provide our customers, distributors and suppliers with win-win cooperation.
