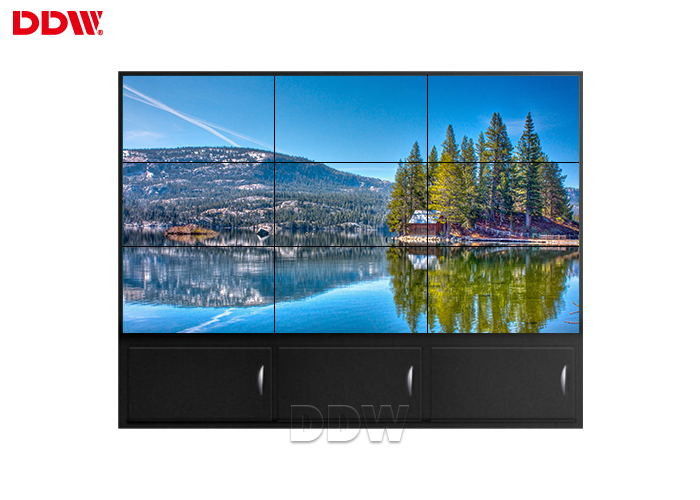

Frameless 3x3 Video Wall / Wireless Control Multi Screen Display Wall
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW550HN16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
|
Detail Information |
|||
| Product Name: | 3x3 Video Wall | Advantage: | Frameless |
|---|---|---|---|
| Total Physical Bezel/mm: | 1.7mm | Brightness/nits: | 500 |
| Panel Width/mm: | 1211.54 | Panel Height/mm: | 682.34 |
| Screen: | Multi Screen Display Wall | Active Area: | 1209.6 × 680.4 Mm |
| Highlight: | seamless lcd display,frameless lcd display |
||
Product Description
Frameless 3x3 Video Wall / Wireless Control Multi Screen Display Wall
3x3 Video Wall Advantage:
- long life, low maintenance costs.
- Large viewing angle.
- high resolution, beautiful picture.
- slim and lightweight.
- Low power consumption, low heat.
- trouble-free long time, low maintenance costs.
- Innovation, advanced
- Economic
3x3 Video Wall Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Dynamic image without motion trail
3x3 Video Wall parameters
- Original DDW commercial grade lcd video wall display panel ,16:9 Samsung a-Si TFT-LCD
- 500 nits brightness,MEGA DCR contrast
- FHD physical resolution 1920x1080
- Only 1.7 mm Ultra narrow bezel, high quality ,Practical ,good vision effect.
- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
- FHD video wall unit--- High brightness,high contrast,High gamut .
- Flexible structure design ---easy installation ,extensible,arbitrary combination
- Stable performance,suitable working for a long time
3x3 Video Wall Specifications
| Model No: |
DDW-LW550HN16 |
| LCD Technology | Samsung a-Si TFT-LCD |
| Active Screen Diagonal | 55" |
| Pixel Pitch(WxH) | 0.630x0.630mm |
| Active Display Area(WxH) | 1209.6x680.4mm |
| Panel Dimension(WxHxD) |
1211.54x682.34x68.1mm |
| Total Bezel Width | 1.7 mm | 0.208” |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backlight System | LED |
| Luminance(nits) | 500cd/sqm |
| Contrast | 4000:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | <=250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor/Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 85% non-condensing |
| Storage Temperature | -20-60°C | -4-149°F |
| Storage Humidity | 85% non-condensing |
3x3 Video Wall Specification
| Support | PC | color | 24bit |
| signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
| DVI | color | 24bit | |
| HDMI | Line synchronization range | 30-80KHZ | |
| DP | Field synchronization range | 50-75HZ | |
| Interface | input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
