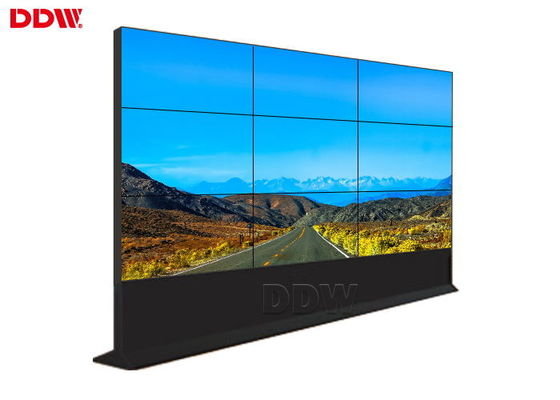

Backlight Adjustable DDW LCD Video Wall HD Embedded Structural Design
Product Details:
| Place of Origin: | Guangdong , China (Mainland) |
| Brand Name: | DDW |
| Certification: | ISO9001 , CE , RoHS , FCC |
| Model Number: | DDW-LW460HN13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | First layer carton pack with filling foam , then wood pallet pack |
| Delivery Time: | 3 working days upon payment |
| Payment Terms: | T/T , Western , L/C Union , Alibaba trade assurance |
| Supply Ability: | 3 , 000pcs per month |
|
Detail Information |
|||
| Product Name: | DDW LCD Video Wall | Backlight: | LED |
|---|---|---|---|
| Backlight: | Adjustable | Design: | Embedded Structural Design |
| Responsive Time: | 6ms | Brightness: | 700 Nits |
| Bezel Size: | 1.7 Mm | Panel Size: | 46 Inch |
| Highlight: | seamless lcd display,frameless lcd display |
||
Product Description
Backlight Adjustable DDW LCD Video Wall HD Embedded Structural Design
DDW LCD video wall Introduction
DDW LCD Video Wall can be any combination: either large screen splicing, small screen splicing; either single-screen display, you can also splicing the entire screen. According to customer requirements for the application of LCD splicing screen system and system size, according to the actual application environment, select the appropriate splicing methods and the best products, design personalized programs to meet customer needs.
DDW LCD video wall key features:
- Panel size: 46″, 49″, 55″, 60″, optional.
- Wall mounted, floor standing, floor standing cabinets and front push hydraulic Pop out optional.
- The front: the shell adopting black matt anti magnetic unique and exquisite strong in anti interferce;
- Interfaces: 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output;
- Accessories: English manual, hanger, RS232-RJ45 converter, English IR controller, RJ45 cables, software USB sticker
- Working Temperature: 0°C~50°C.Working Humidity: 20%-80%;
- Application areas: real estate sale center, clothing store, ticketing center, hotel lobby, mobile phone shop, restaurant;
Narrow Bezel:
- 46 inch LCD video wall narrow bezel available: 1.7 mm, 3.5 mm, 5.3 mm;
- 3×3 LCD Video Wall show commercial advertisement, food picture, video play, product picture;
View Angle
- 178 degree wide viewing angle, the full range of display;
- Different modules optional: such as heating module, built in camera, air conditioner etc;
HD Panel Display
- HD video wall unit: high brightness, contrast and gamut.
- Resolution: 1920×1080, 3840×2160; Color: 16.7M; Brightness: 700cd/m2;
Functions:
- Supporting 225 units (15×15) multi-matrix;
- Single screen display. Each unit can display the picture independently;
- Image overlay. Superimposed on screen another picture;
- Easy to choose full screen or multi-screen display by control video wall controller.
Panel dimension and interfaces:
- Dimension: 1020.02×547.61mm;
- Interface: 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
Total bezel width
- Bezel size:1.7 mm;
- The front shell adapting black matt anti magnetic unique and exquisite strong in anti interface;
Connection topology and applications:
- Supports multiple signal input: BNC, YPbPr, VGA, HDMI, DVI and RS232;
- Applications: Financial center, real estate center, security room, cinema, theater, etc;
| Panel Size | 46 Inch |
| Total bezel width | 1.7 mm |
| Active Display Area | 1020.02 x 574.61 mm |
| Resolution | 1920 x 1080; 3840 x 2160 |
| Brightness | 700 nits |
| Contrast ratio | 4000:01:00 |
| Responsive time | 6ms |
| Warranty | 1 year |
LCD Video Wall Board Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
