Highlight:
frameless lcd display
, multi display video wall

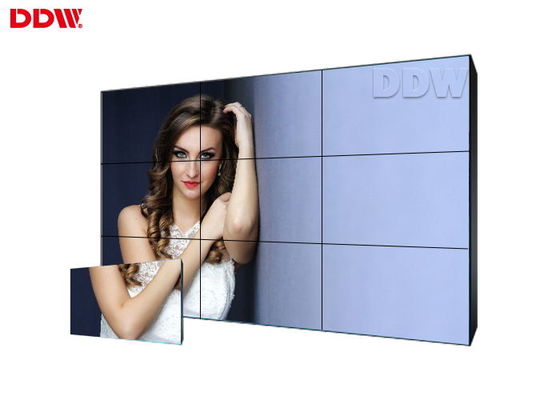

Samsung Panel Multi Display Video Wall / 55 Video Wall Display RS232 Control
Multi Display Video Wall Applications:
| Business Organizations |
supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy. |
| Financial Organizations |
Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;
|
| Public Places |
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers; |
| Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course |
Multi Display Video Wall main parameters
1. Original DDW commercial grade lcd video wall display panel ,16:9 LG a-Si TFT-LCD
2. 700 nits brightness,MEGA DCR contrast
3. Only 1.8 mm ultra narrow bezel, high quality ,Practical ,good vision effect.
4. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
5. HD video wall unit--- High brightness,high contrast,High gamut .
6. Flexible structure design ---easy installation ,extensible,arbitrary combination
Multi Display Video Wall Features
- Support a variety of signal ports.
- Support creating one window PIP across the screen, roaming service, scaling,PIP
- Support matrix joint control.
- Unique DNX motion supplement image processing technology,
- Dynamic image without motion trail
- Splicing image processing RS-232 RJ45 loop-circuit input/output.
- Input by remote control with wire, mobile receiver head.
Multi Display Video Wall Specifications
| Model No: |
DDW-LW550DUN-THA3 |
| LCD Technology |
LG a-Si TFT-LCD |
| Active Screen Diagonal |
55" |
| Pixel Pitch(WxH) |
0.630x0.630mm |
| Active Display Area(WxH) |
1209.6.x680.4mm |
| Panel Dimension(WxHxD) |
1211.4 x682.2x53.3mm |
| Total Bezel Width |
1.8mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backlight System |
LED |
| Luminance(nits) |
700 cd/sqm |
| Contrast |
5000:1 (typ.) |
| Viewing Angle |
H 178°|V 178° |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
<=250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor/Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
85% non-condensing |
| Storage Temperature |
-20-60°C | -4-149°F |
| Storage Humidity |
85% non-condensing |
DDW Video wall is one of the most popular ultra narrow bezel lcd video wall panels. With 1.8 mm ultra narrow bezel, LED backlight and FHD 1080P resolution, Shenzhen DDW Technology Co.,Ltd LCD screen wall is adopting LCD panels,it can be widly used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show,rental and advertising center,museums,church,transportation and mass info display systems.
Facilities:
We group companies own following facilities to accomplete the business:
1) 2500㎡ production department
2) Our own metal factory 3000㎡
3) Our own panel warehouse 1500㎡
