Multi Monitor Interactive Video Wall 500nits Brightness For Security Monitoring Center

Name: Multi Monitor Interactive Video Wall 500nits Brightness For Security Monitoring Center
Brand: DDW
SKU: DDW-LW460HN11
Rating: 4.6 (199 reviews)

Product Details

Place of Origin: Guangdong , China (Mainland)

Brand Name: DDW

Certification: ISO9001 , CE , RoHS , FCC

Model Number: DDW-LW460HN11

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: First layer carton pack with filling foam , then wood pallet pack

Delivery Time: 3 working days upon payment

Payment Terms: L/C , L/C , T/T

Supply Ability: 3 , 000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                interactive video display, interactive touch screen video wall


Product Name:	Interactive Video Wall	Daisy Chain:	RJ45 Loop
Control Method:	RS232 Control	Total Physical Bezel:	3.5 Mm
Resolution:	1920*1080	Backlit Type:	LED
Panel Width:	1021.98mm	Panel Height:	576.57mm

Product Name:	Interactive Video Wall
Daisy Chain:	RJ45 Loop
Control Method:	RS232 Control
Total Physical Bezel:	3.5 Mm
Resolution:	1920*1080
Backlit Type:	LED
Panel Width:	1021.98mm
Panel Height:	576.57mm

Product Description

46 inch Interactive Video Wall ultra narrow bezel for fashion store advertising

Application

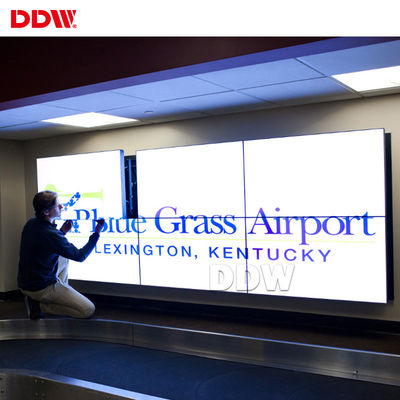

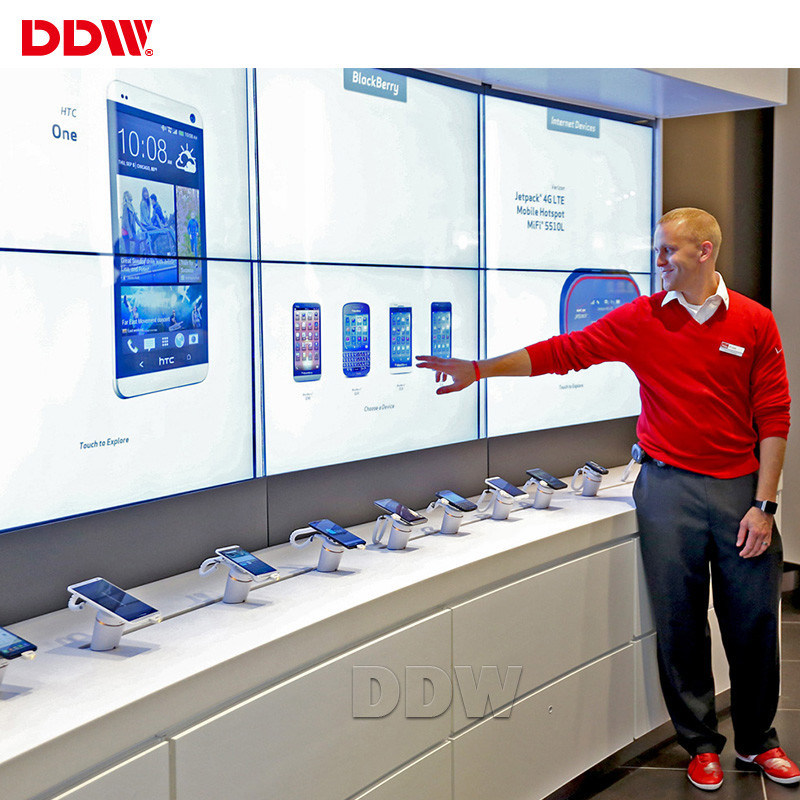

Interactive Video Wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.

LCD video wall basic informations:

With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
Adapting modular components, making maintenance operations and parts replacement very easily;
The installation method: floor standing cabinets;
Dot Pitch: 0.5302mm(H)*0.5302mm(W); Contrast ratio: 4000:1; Responsive time: 6ms;
Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
7x24x365 keep working;

Functions:

Supporting 225 units (15×15) multi-matrix;
Single screen display. Each unit can display the picture independently;
Image overlay. Superimposed on screen another picture;
Easy to choose full screen or multi-screen display by control video wall controller.

Specifications

LCD Technology	Samsung a-Si TFT-LCD
Active Screen Diagonal	46"
Panel Dimension(WxHxD)	1021.98x576.57x72.1mm
Total Bezel Width	3.5mm
Aspect Ratio	16:9
Physical Resolution	1920x1080
Backlight System	LED
Luminance(nits)	500cd/sqm
Contrast	5000:1 (typ.)
Viewing Angle	H 178°\|V 178°
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	<=250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor/Outdoor
Working Temperature	0°C~50°C
Working Humidity	85% non-condensing
Storage Temperature	-20-60°C \| -4-149°F
Storage Humidity	85% non-condensing

LCD Video Wall Board Specifications

Support	PC	Color	24bit
Signal		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
	DVI HDMI DP	Color	24bit
		Line synchronization range	30-80KHZ
		Field synchronization range	50-75HZ
Interface	Input	VGA x 1	15pin D-Sub
		DVI x 1	DVI-I
		DP x 1	Display Port
		HDMI x 2	HDMI-19 pin
	Output	PANEL	LVDS 36Pin/2.0
	Output	DP out	DP loop out
Power	Input power	DC24V/12V/5V
	Drive panel	5V/12V
	Power mode	Normal working mode, power saving mode
Other	OSD	Chinese, English and other languages (other languages can be added as required)

Multi Monitor Interactive Video Wall 500nits Brightness For Security Monitoring Center 0
